Legend:
Equipement
3~N/PE/400V/50Hz
C1
E20
E22
F1
M1
Q5
R20
T10
X8
X100
X300
1~
-M1
ZW1
HDP
VD1
-E20
UK
Function
L1,L2,L3,N,PE; power supply, output, compressor; clockwise rotary field is absolutely necessary!
capacitor
Sump heating for compressor 1
Auxiliary heating
High-pressure switch
Compressor
Contactor for auxiliary heating
Line reactors
inverter
Distribution box power supply
Compressor output / control connector
Additional heating output connector, input
817413c
-F1
-T10
-X100
-R20
-C1
-X8
3~N/PE/400V/50Hz
-X300
-X300
-Q5
-E22
A
B
C
D
E
F
A
B
C
D
E
F
Blatt
Bl.
1
3
3 4567
AIT
817413
Stromlaufplan
ait-deutschland GmbH
ÄM021/2016
PEP011/2016
23.10.2015
29.06.2016
12.01.2017
AP
AP
AP
VD1
U
V
W
PE
L E20
/2.B1
N E20
/2.C1
Mod-B-
/3.C6
Mod-GND
/3.C6
Mod-A+
/3.C6
4
2
3
green
white
brown
HDP
P
X1X2
L1 NUVW
1
2
-
+
X5
X3
X4
brown
1
blue
2
PE
4
+
2
4
6
9
1
1
3
5
2
4
6
3
5
M
Änderung Datum
Datum
Bearbeiter
Geprüft
NormName
19.11.2014
Pfleger
R.
-M1
sw br gr PE
1
2
3
4
12
brown
brown
blue
brown
L1 L2 L3 N PE
1
2
3
4
5
6
PE

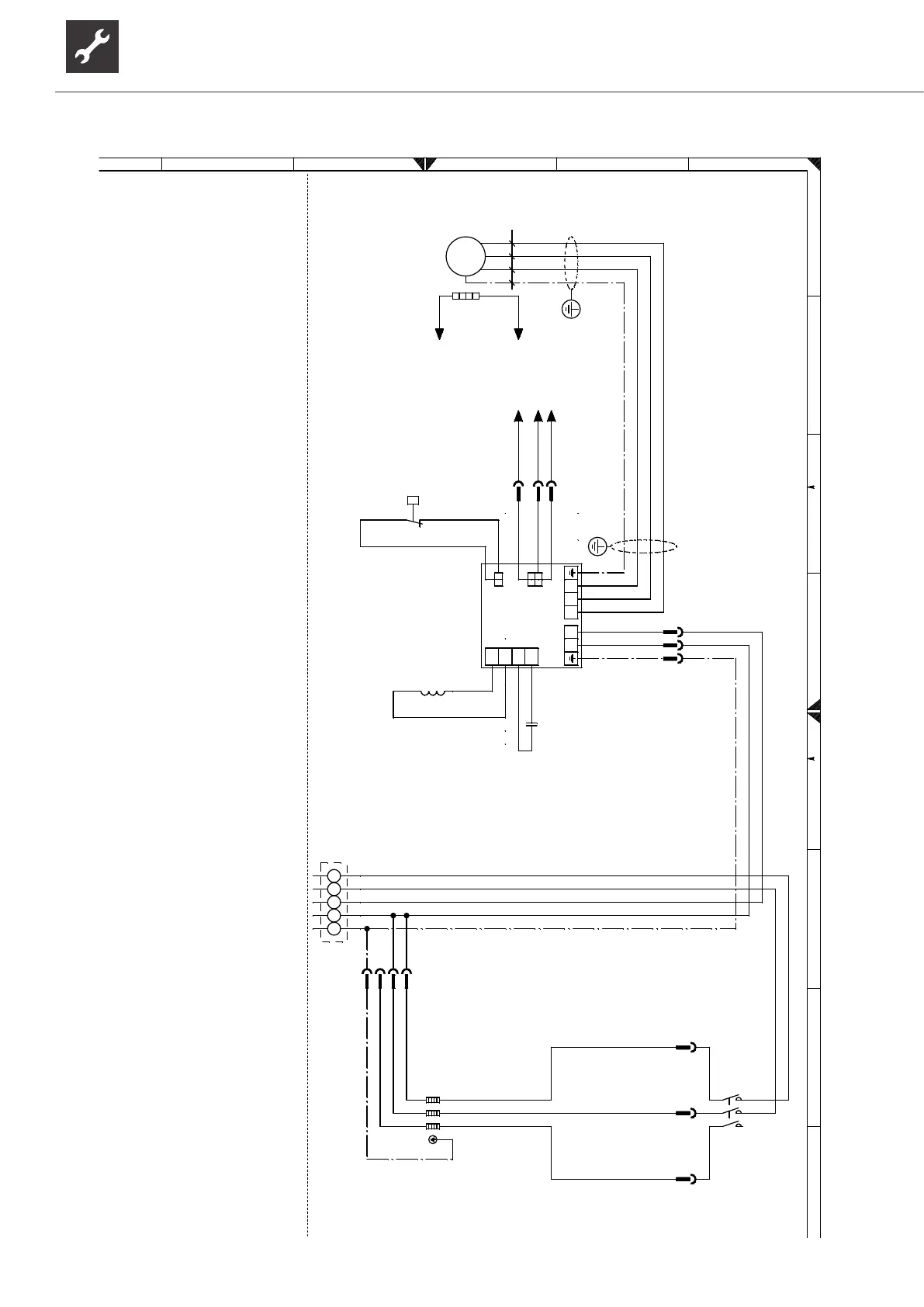

Circuit diagram 1/3 SWCV 62(H)(K)3 – SWCV 92(H)(K)3
