the connections

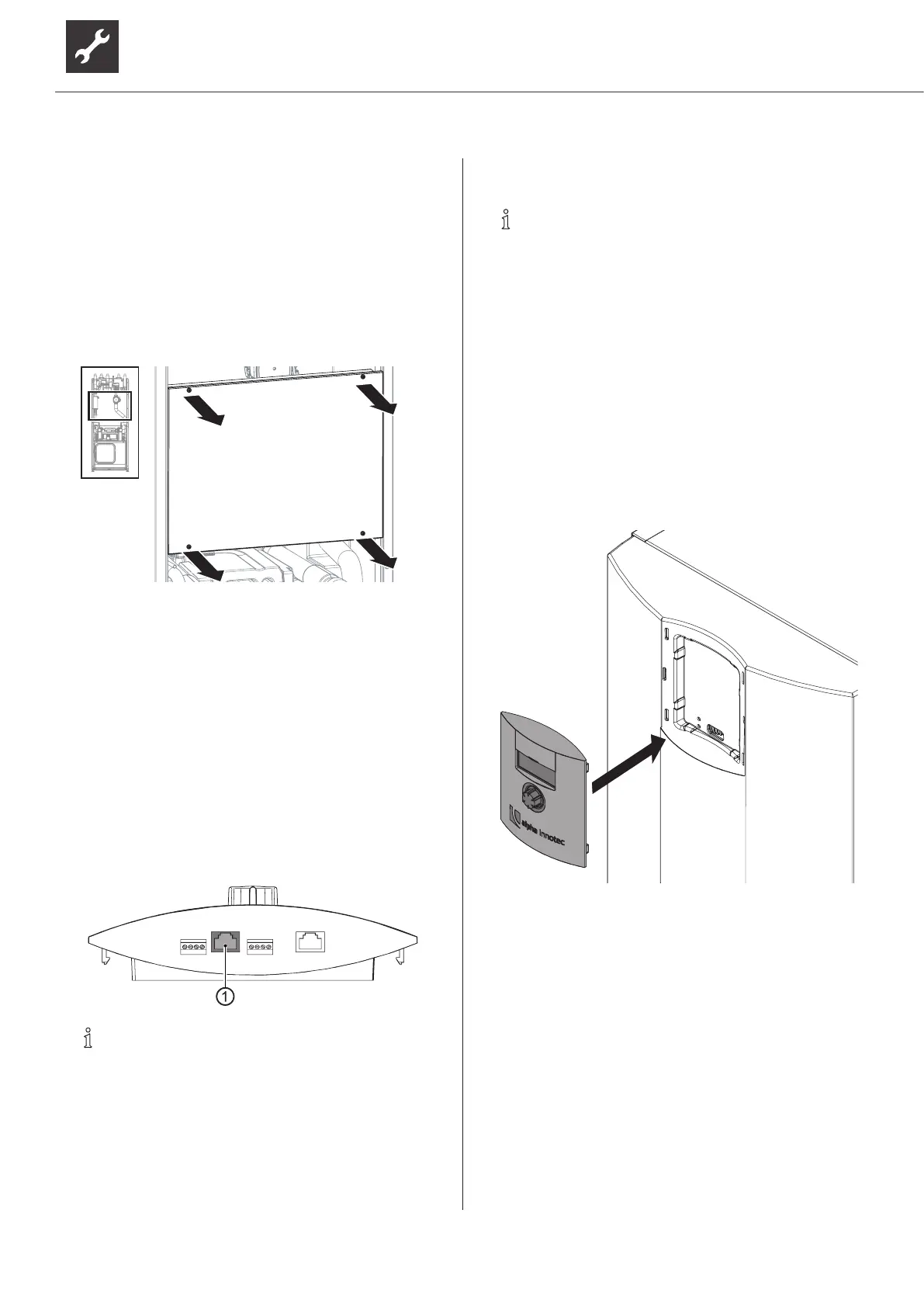

1. Strip the sheathing of all cables to the external
loads before laying in the cable duct of the control
box.
2. Open electrical switchbox:
Undo 4 screws in the cover panel of the electri-
cal control box
Remove the cover panel
3. Feed the control/sensor cables and unit supply
cable into the housing from the rear.
4. Route cables from underneath through the cable
openings in the control box.
5. Connect cables to the respective terminals
( “Terminal diagrams”, from page 40).
1.
(category 6) through the unit.
2.
(①).
NOTE
time.
6.5 Installing the control panel
NOTE
The control can be inserted in a recess in the
front panel of the unit or can be installed on
the wall.
Insert the control in the unit and connect
1.
To do this, dismantle the front panel ( “Dismantle
housing panels for transport with handcart or
carrying the unit”, page 10), press the lugs
together and push out of the openings.
2.
panel.
3. Position the control in the recess in the front unit
panel.
4. Cut the cable to length generously so that the
front panel can be removed and placed to the side
of the unit. Do not cut the cable ties for strain relief
of the LIN bus cable at the electric control box.
the strain relief at the electrical control box
All other cables approx. 1.2 m
