7
Subject to change without notice | 83057000jUK – Translation of the original operating manual | ait-deutschland GmbH
1 Electrical switch cabinet
2 Heating element
4 Valve motor
5 3-way changeover valve, heating circuit/
domestic hot water
6 Heating circuit/hot water circulation pump
7 Module box
8 Height-adjustable foot (4x)
Rating plate
Rating plates are attached to the following places on
the unit:
on the right-hand outer panel, at the top
left-hand side, on the module box
The rating plate contains the following information at
the top:
Unit type, product number
Serial number, unit index
The rating plate also contains an overview of the most
important technical data.

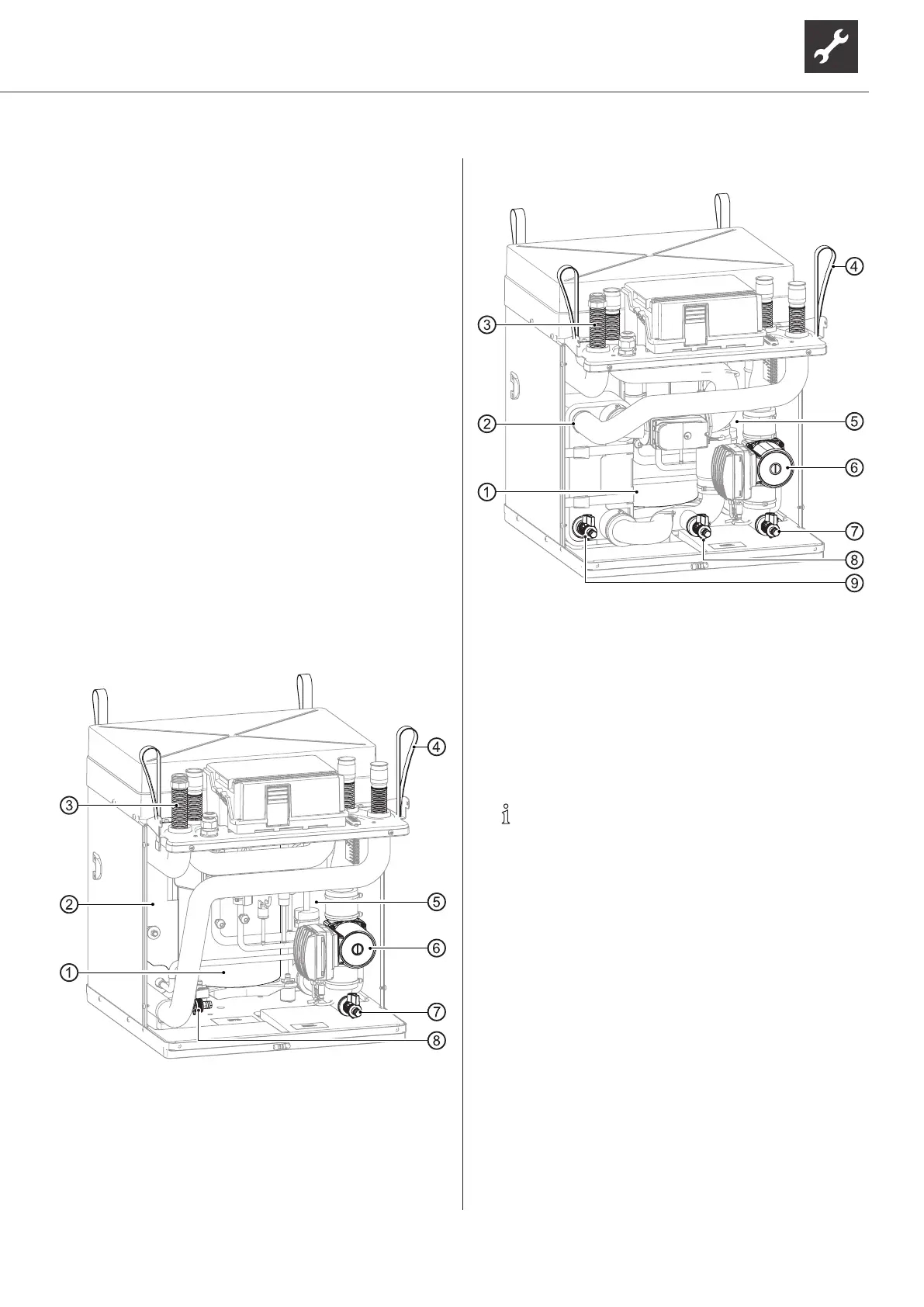

Module box – variant without cooling
1 Compressor
2 Condenser
3 Vibration isolator (4x)
4 Lifting lug (4x)
5 Evaporator
6 Heat source circulation pump
Module box – variant with cooling
1 Compressor
2 Condenser
3 Vibration isolator (4x)
4 Lifting lug (4x)
5 Evaporator
6 Heat source circulation pump
NOTE
The hose connectors are not part of the
scope of delivery with all KFE ball valves.
