Alpha Omega Instruments 800 Series User Manual

INPUTS
Event/Remote Analog Set point (Input 2)
The Series 800/850 TEC Controllers provide a great deal of flexibility for the
customer by allowing the customer to control it via Optional Input 2. Along with the
Sensor Input, the Series 800/850 TEC Controllers can be equipped with an
additional input (Input 2), which can perform a variety of functions. Below are
descriptions of the individual Input 2 functions.
Event
Setting the Optional Input 2 to respond to an event will allow for the customer to
control the output of the Series 800/850 TEC Controllers.
Remote Analog Set point

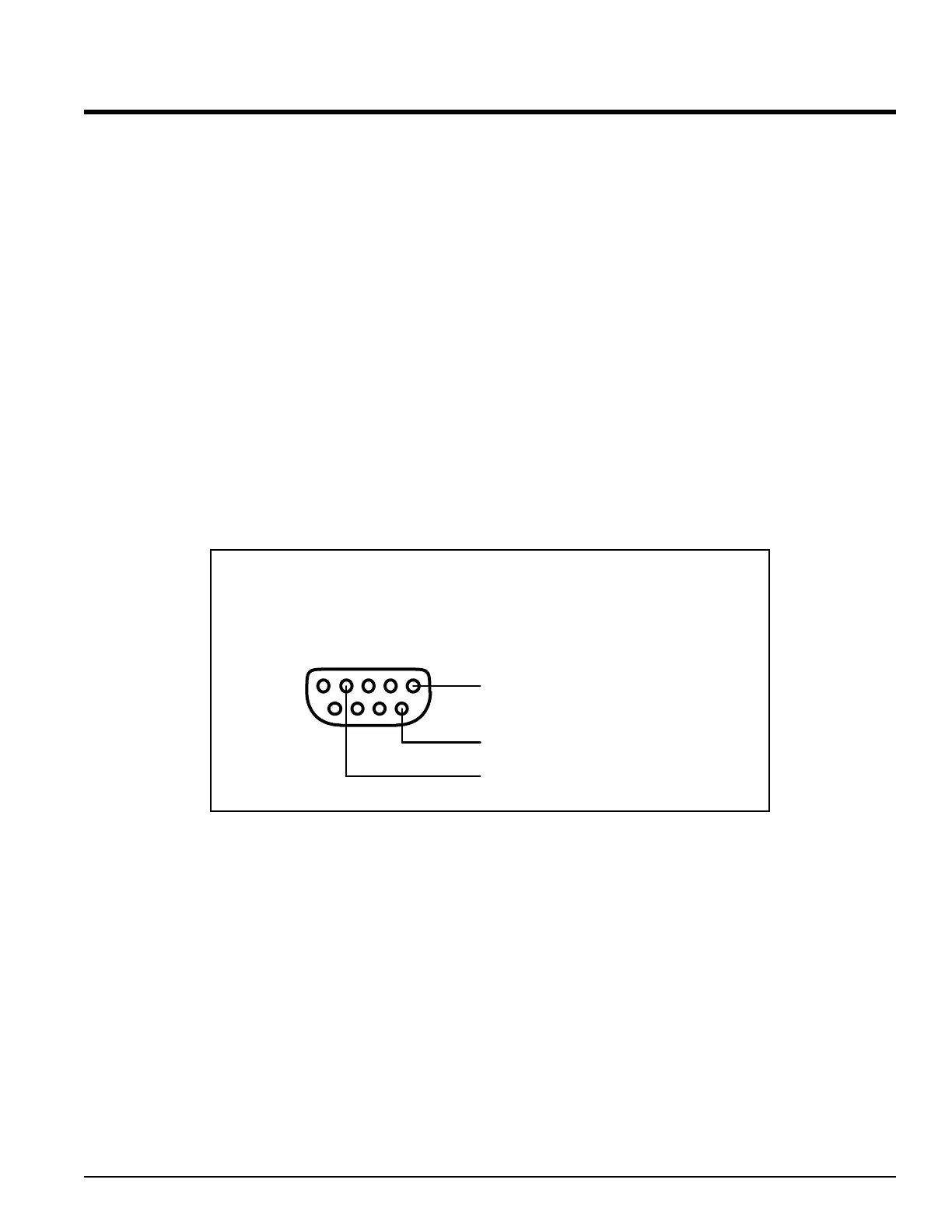

The Remote Set point option is available via the rear panel on the 9 pin “D”
connector. This allows the user to control the temperature set point by applying an
analog input. The Series 800/850 TEC Controllers will accept a voltage or a current
input.
Pin 1
Current Input
Voltage Input
Ground
4-20mA
0-20mA
0 to 5V
0 to 10V
1 to 5V
Input 2 (Event/Remote Analog Set point)
ALPHA OMEGA INSTRUMENTS CORP. Instruction Manual
Series 800/850 Thermoelectric Cooler Controller Page 96
