TEMPERATURE SENSOR CONFIGURATIONS
Thermocouple Configuration

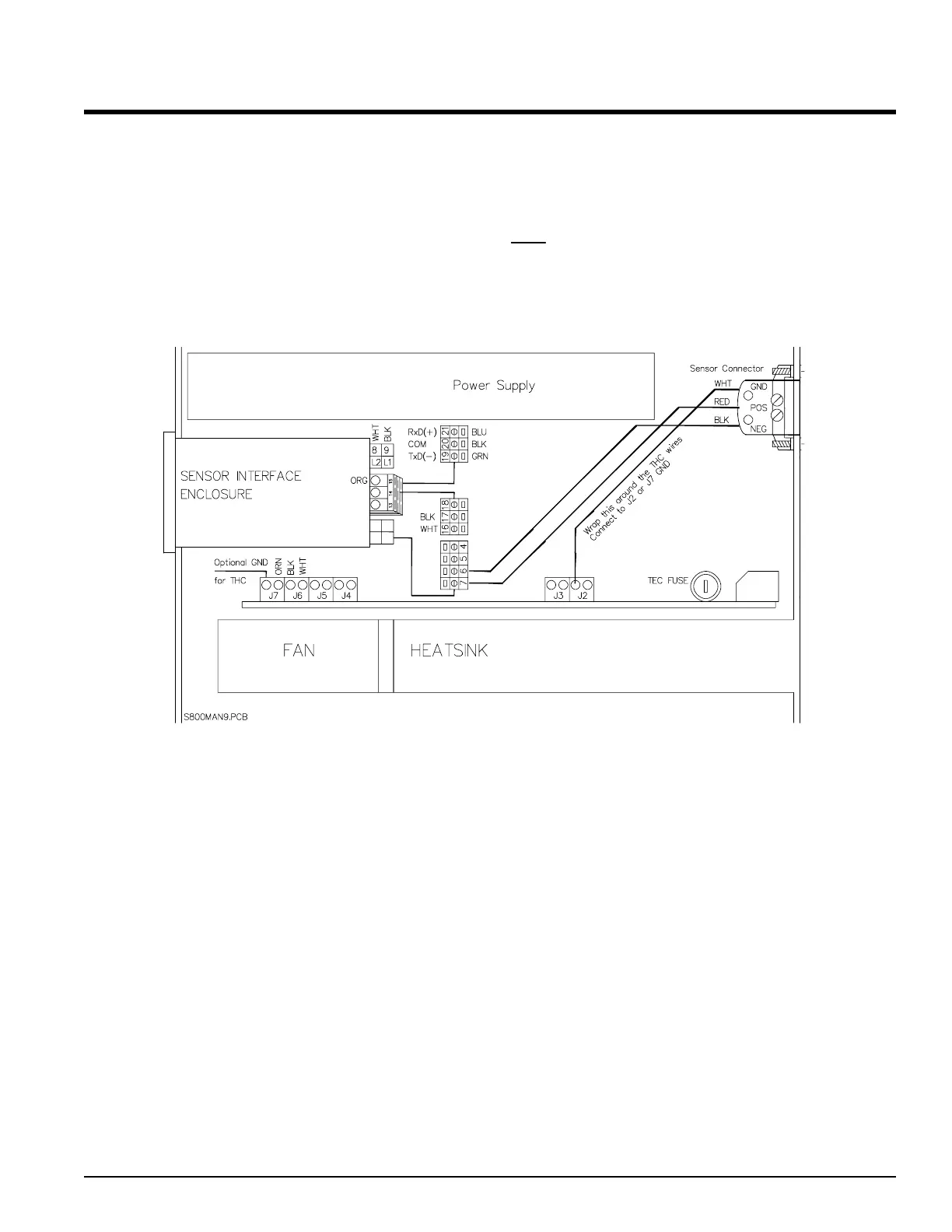

The drawing below shows the thermocouple configuration for the Series 800/850
TEC Controllers. In this configuration only
the thermocouple Type specified at time
of order can be used. To use any other type sensor, contact the factory.
Thermocouple Interface Connections
ALPHA OMEGA INSTRUMENTS CORP. Instruction Manual
Series 800/850 Thermoelectric Cooler Controller Page 95
