TEMPERATURE SENSOR CONFIGURATIONS
The Series 800/850 TEC Controllers were designed to allow the user to select from
a wide range of temperature sensors. Should it become necessary to change the
sensor interface to a different input other than the one that was shipped from the
factory, then follow the steps below.
NOTE: If changing to / from a standard configuration to / from a thermocouple
configuration, please contact the factory.
Standard Configuration
This configuration allows the most flexibility to interface to all temperature sensors
except thermocouples (see thermocouple configuration below). By simply changing
jumpers internally on the printed circuit board, the Series 800/850 TEC Controllers
can accommodate a wide range of sensors. (See Jumper Settings on next page)

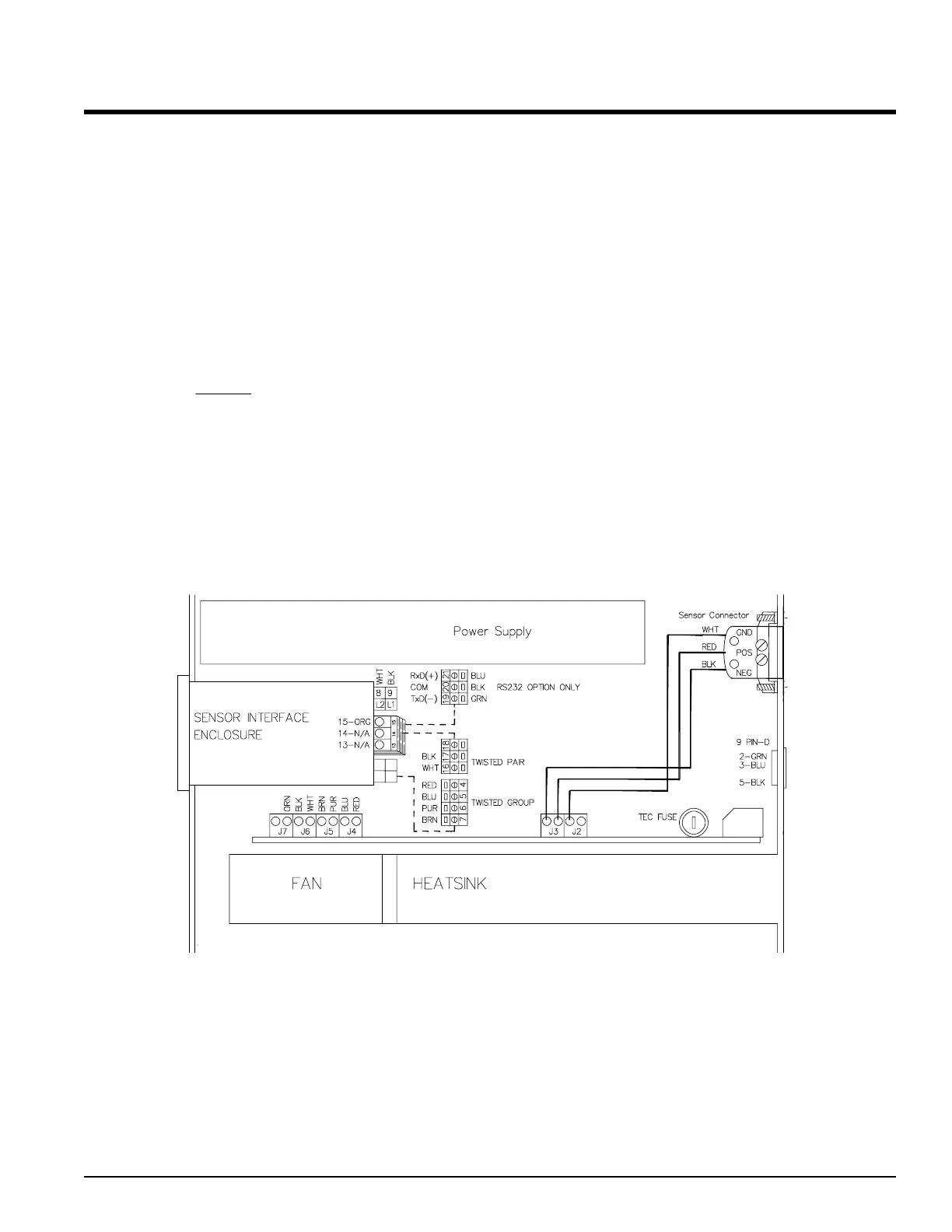

The drawing below shows the Standard Configuration for the Series 800/850 TEC
Controllers. This configuration will allow ALL sensors EXCEPT Thermocouples to
be used via the rear panel connector.
Standard Interface Connections
ALPHA OMEGA INSTRUMENTS CORP. Instruction Manual
Series 800/850 Thermoelectric Cooler Controller Page 94
