Service manual AlphaCom XL transceiver Rev. 1.4 10-08-2011 Blz. 46/74
Relay control by user

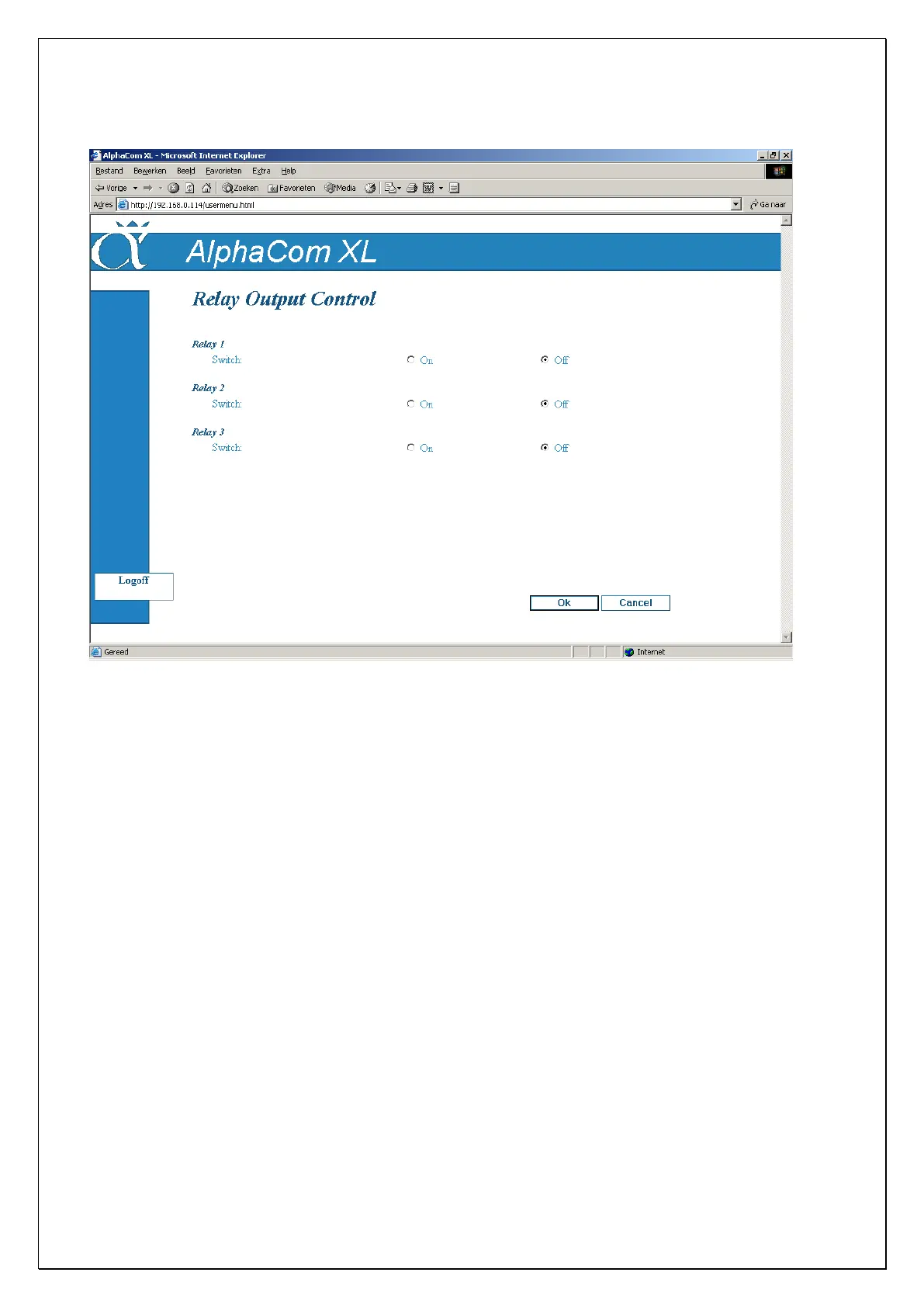

When not the supervisor but a user logs in (default user name: user), the following screen will appear.
In this screen the 3 relay outputs are visible including there names (in this screen they have been called
Relay 1, Relay 2 and Relay 3) and status. The user now has the possibility to activate / deactivate the outputs
individually and press „OK‟.
