Service manual AlphaCom XL transceiver Rev. 1.4 10-08-2011 Blz. 66/74
APPENDIX C
To connect the AlphaCom XL to a router, a standard straight through CAT 5 cable is used. A straight
through CAT 5 cable is made up as follows:

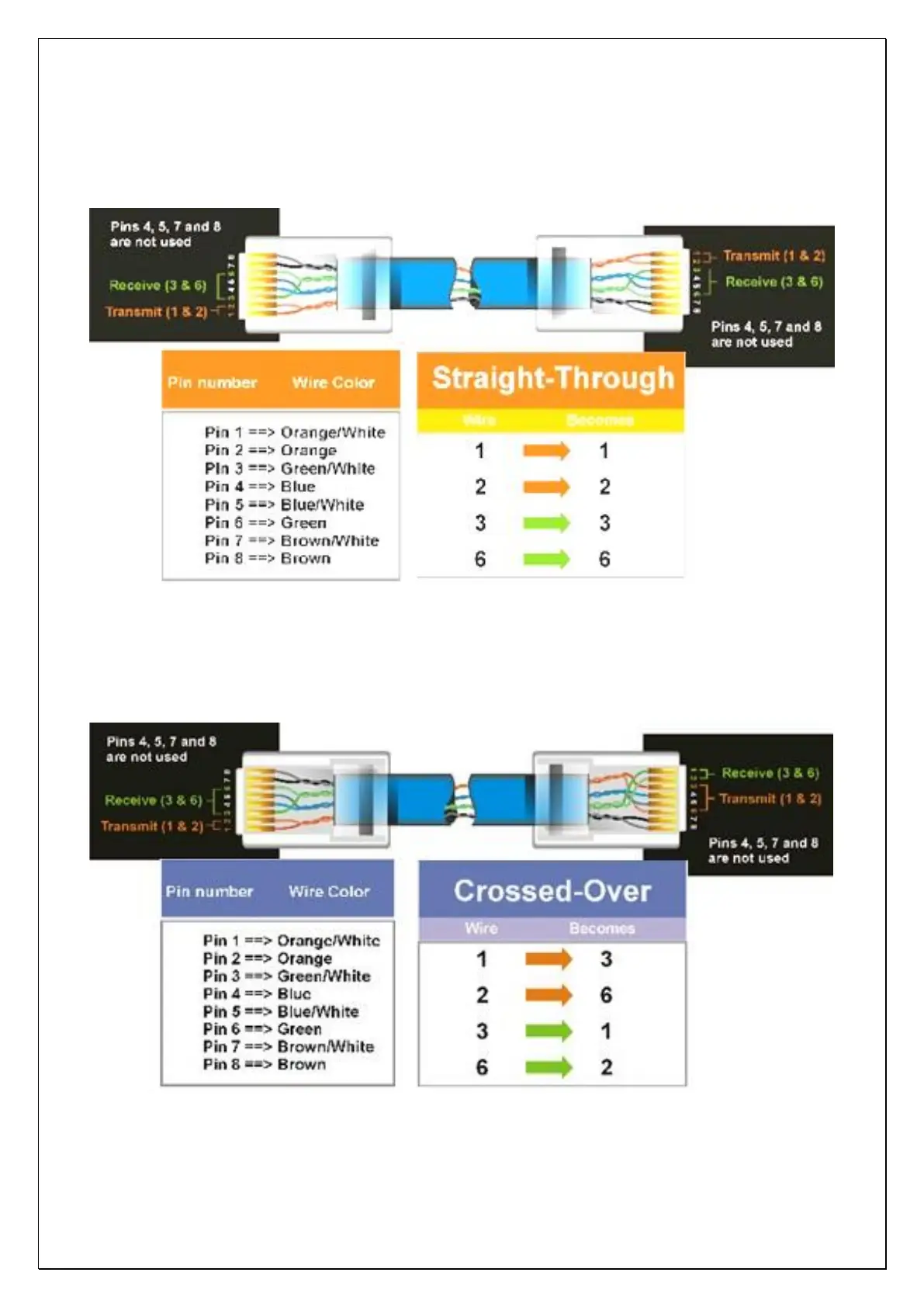

Figure 6: Straight-through cable wiring
To connect the AlphaCom XL directly to a computer, a cross-over cable has to be used. The wiring of a
cross-over cable is as follows:
Figure 7: Network cross-over cable wiring
