Service manual AlphaCom XL transceiver Rev. 1.4 10-08-2011 Blz. 61/74

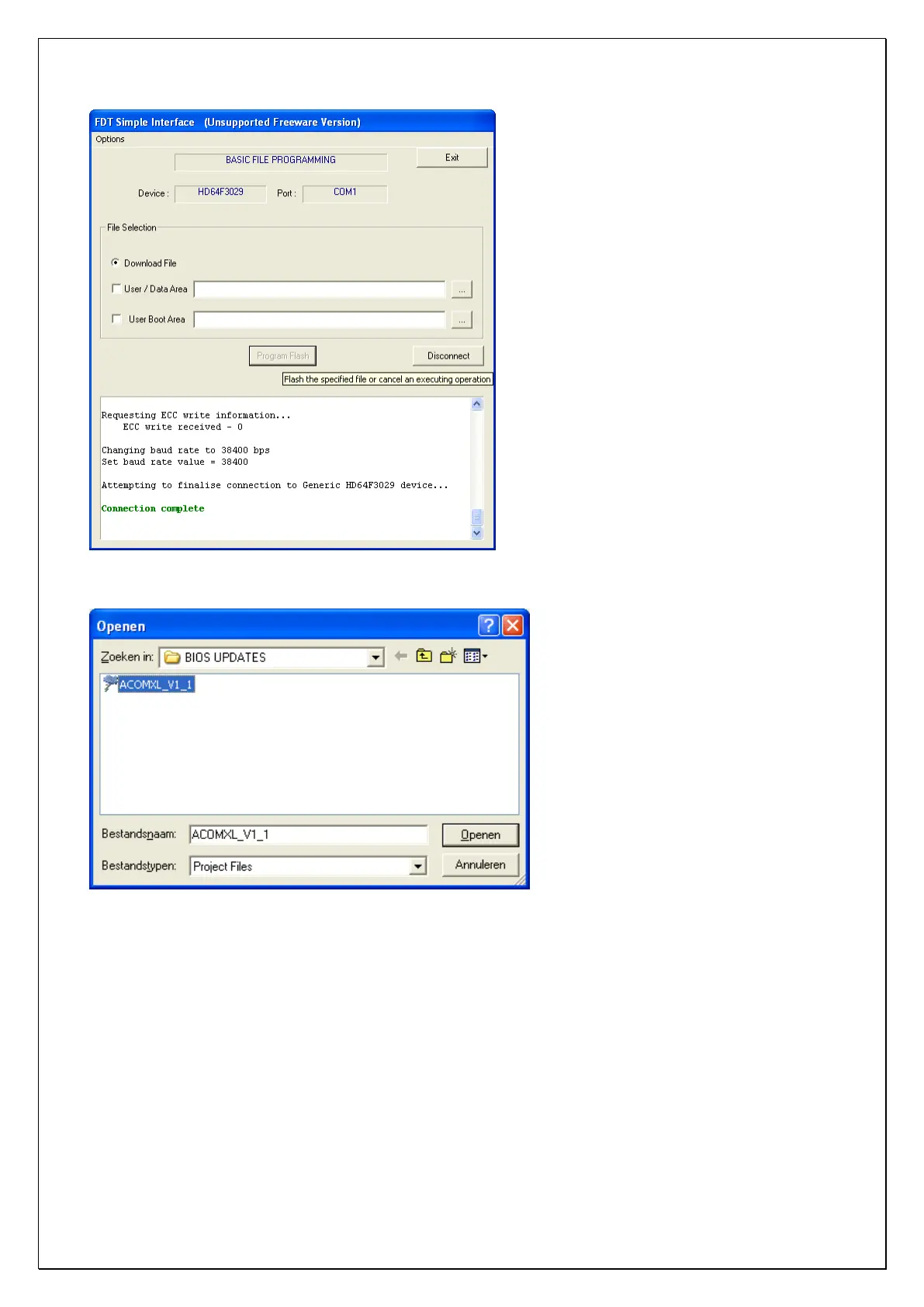

Select the User / Data Area option. In the box next to the User / Data Area option is still empty. Use the

explorer button to select the correct path and directory were the firmware file is saved on your computer.
