Service manual AlphaCom XL transceiver Rev. 1.4 10-08-2011 Blz. 60/74

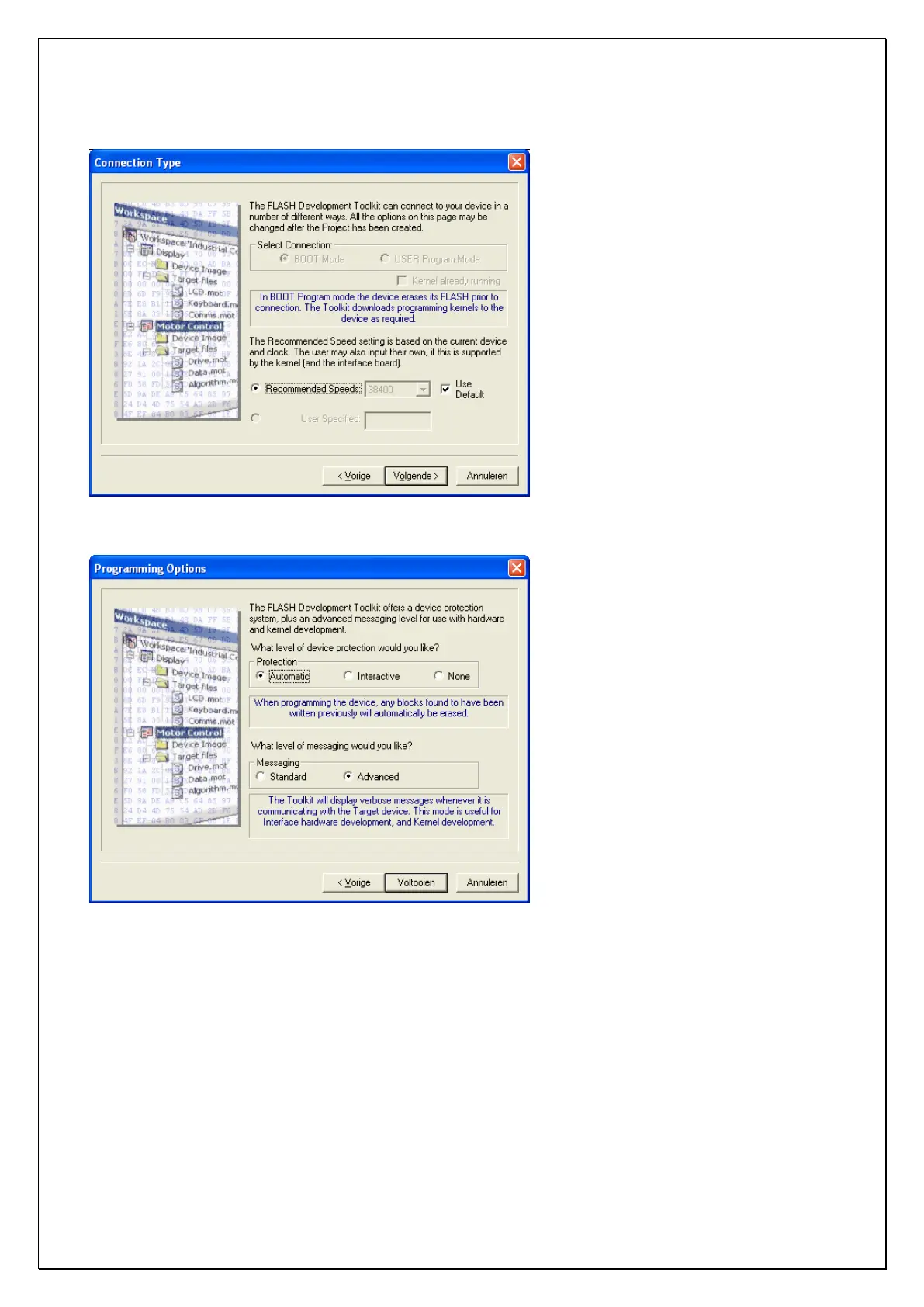

Do not change the 25.00 MHz value, this is the correct value. Press Next.

Press Next.

Press the Finish button. The flash utility will now try to establish a connection with the microprocessor. If

the connection is established a green text Connection complete will appear in the text block.
