Service manual AlphaCom XL transceiver Rev. 1.4 10-08-2011 Blz. 59/74

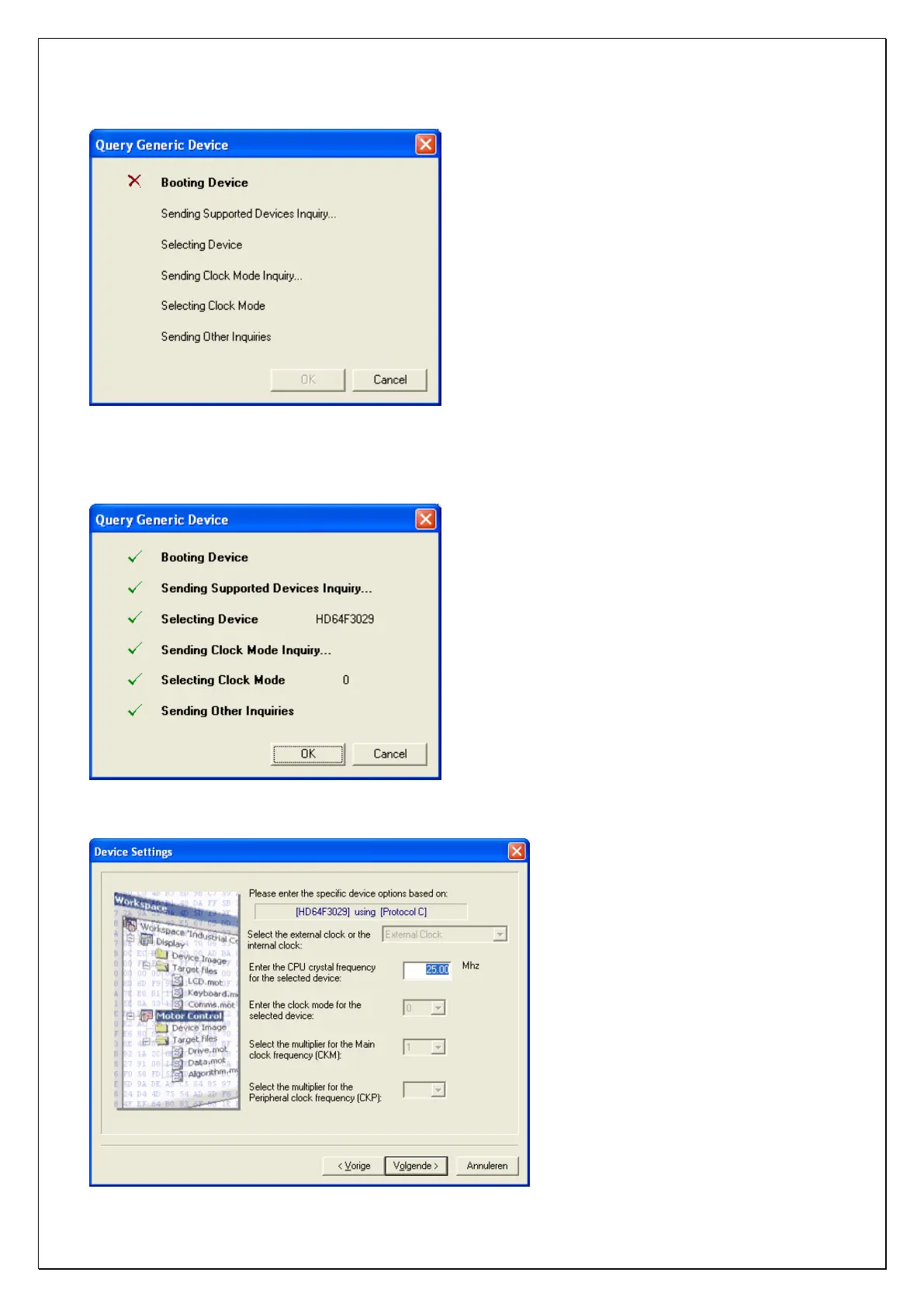

If for some reason the connection is not established (the AlphaCom XL is not powered up or the

programming cable is not connected), press Cancel. If the connection is established the following screen will

appear.

Press OK.
