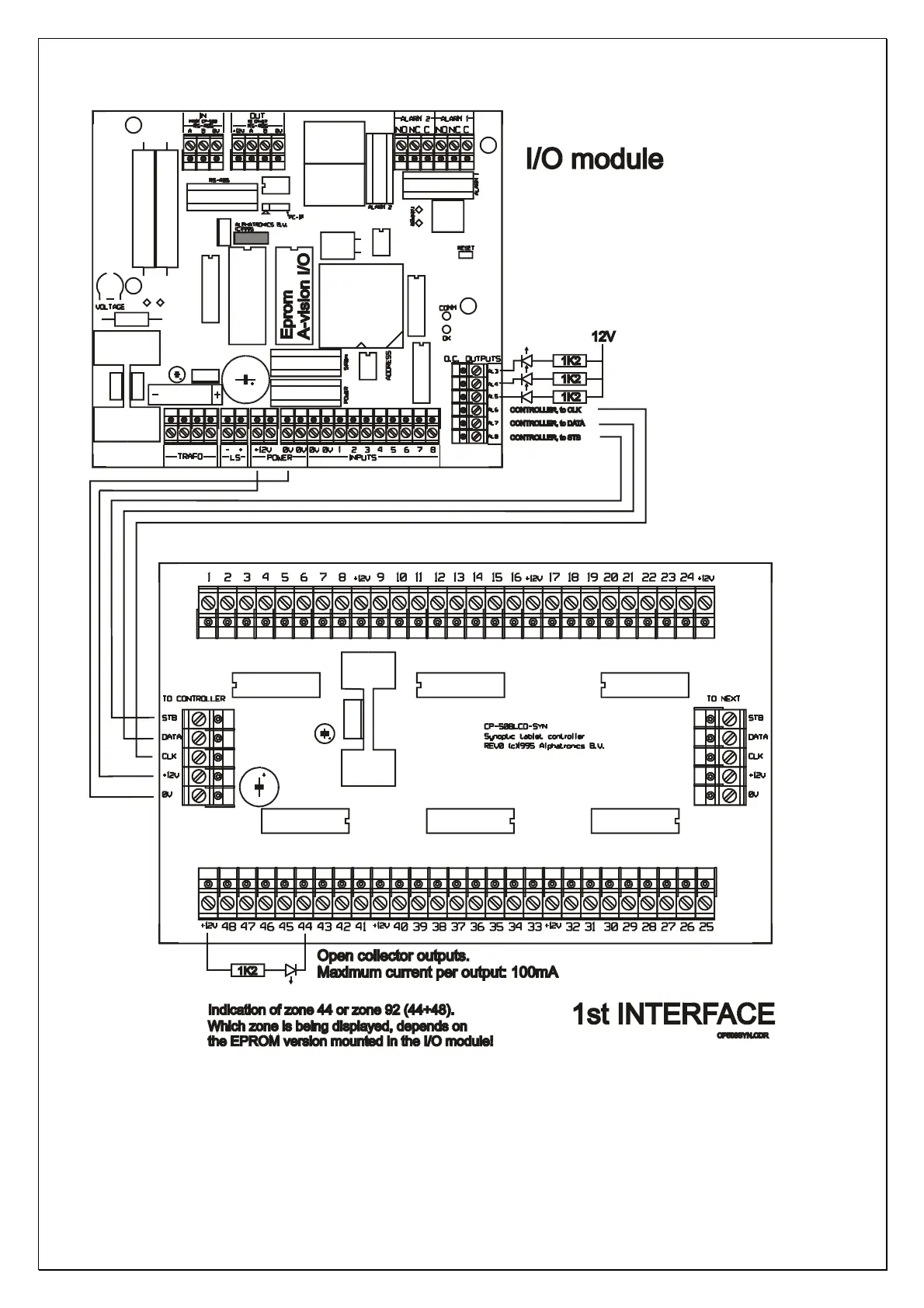

Figure 13. Wiring diagram synoptic interface (004444) and an I/O module

AlphaVision NG installation manual Rev. 2.0 27-08-2003 Blz. 26/101

Table of Contents

Installation Manual1
Table of Contents2
Introduction5
- Purpose of this Manual5
- Guidelines5
Installing the Alphavision Ng Control Panel6
Alphavision NG Control Panel Wiring Diagram6
- Eol Inputs7
Detector Wired as EOL7
- Inputs Without Eol8
- Use a 39K Resistor or Not8
- 0V Power/Detector Loop8
- Outputs9
- Integrated Pstn Dialer9
- RS-485 Bus9
- Control Panel Fuses11
- I/Omodule (Ng) Fuses12
Keypad Installation13
Access Control Installation (Proximity Reader)15
- Standard Usage of the Ng Proximity Reader15
- Installing the Ng Proximity Reader15
- Address Settings on the Alphavision NG Proximity Reader16
- Oc Output of the Ng Proximity Reader16
Expansion Modules Installation17
- Input + 8Oc Module17
- I/Omodule Ng18
- Wireless Interface (Wireless Detectors)19
- Relay Output Module (Ro)20
Wiring Diagram RO (Relay Output) Module21
- Ro Module with Power Supply in Cabinet22
- Printer Module23
- Alpha Com Isdn Dialer23
- DLM-100 GSM Dialler24
- Synoptic Interface25
- Wiring a Synoptic Tablet Interface25
- Eprom's Used with Synoptic Interfaces28
Current Drain and Battery Calculation29
- Power Consumption29
- Example Battery Calculation29
- Maximum Distance between Modules and Power Supplies30
- Battery Test and Mains Power Failure33
Powering up the Alphavision Ng Control Panel33
Programming the Alphavision Ng Control Panel33
- Introduction34
- Initiate Local Programming/ Program Default Values34
- Programming Menu36
- Initiating Remote Programming (Up/Download)37
- Option 1: Programming the Control Panel38
User Codes55
- 4, 5 or 6 Digit User Codes55
- Usercode Levels55
- Notice against Double User Codes56
- Function Summary56
- Program User Codes with the Pc57
- Program User Codes with an Lcd Keypad59
- Program Proximity Keys with an Lcd/Prox Keypad60
Programming the Wireless Interface64
- Wireless Interface (Wireless Detectors)64
Controlling the Alphavision Ng69
- Alarm Information on the Display (F22#)69
- Arming Using User Codes70
- F1# Activate Reset Output70
- F2# Doorbell Function On/Off70
- F3# Adjust Date71
- F4# Adjust Time71
- F5# Set Startdate for Summer/Wintertime71
- F6# Program Usercodes71
- F7# Start Installation Menu71
- F8# Start Remote Programming72
- F9# Display Historical Overview72
- F10# Print Historical Overview73
- F11# Turn Logprinter Function On/Off73
- F12# Print Rtc Settings73
- F13# Print Pin- Code Overview73
- F14# Print Installation Overview Part 173
- F15# Print Installation Overview Part 274
- F16# Test Output74
- F17# Test Batteries74
- F18# Test LCD and Led's of a Keypad74
- F19# Test One Zone74
- F20# Walktest75
- F21# Display Open Zones76
- F22# Display Available Information76
Automatic Timer Switch77
Timer Switch Flow Chart78
- F23# Program Automatic Timerswitch (Rtc)79
- F24# Program Overtime80
- F25# Program Vacation Schedule81
- Prealarm Function82
- Important Notes on Using the Automatic Timer Switch82
- F26# Program Rtc Correctionfactor82
- F27# Maintenance83
- F28# Program Zone Settings on the Lcd Keypad84
- F29# Programming the Access Control System (Proximity Reader)85
- Meaning and Functioning of the Ng Proximity Reader Programming88
- Application Examples Access Control System (Proximity Reader)90
Up/Downloading Via Isdn92
Install the Winterm Software93
- Ppendix A: Dipswitch Settings and Keypad Address Instructions96
Keypad Address Settings96
Address Instructions When Using Several Different Software Versions96
- Appendix C: Sia Codes98
- Appendix D: Release Notes101
