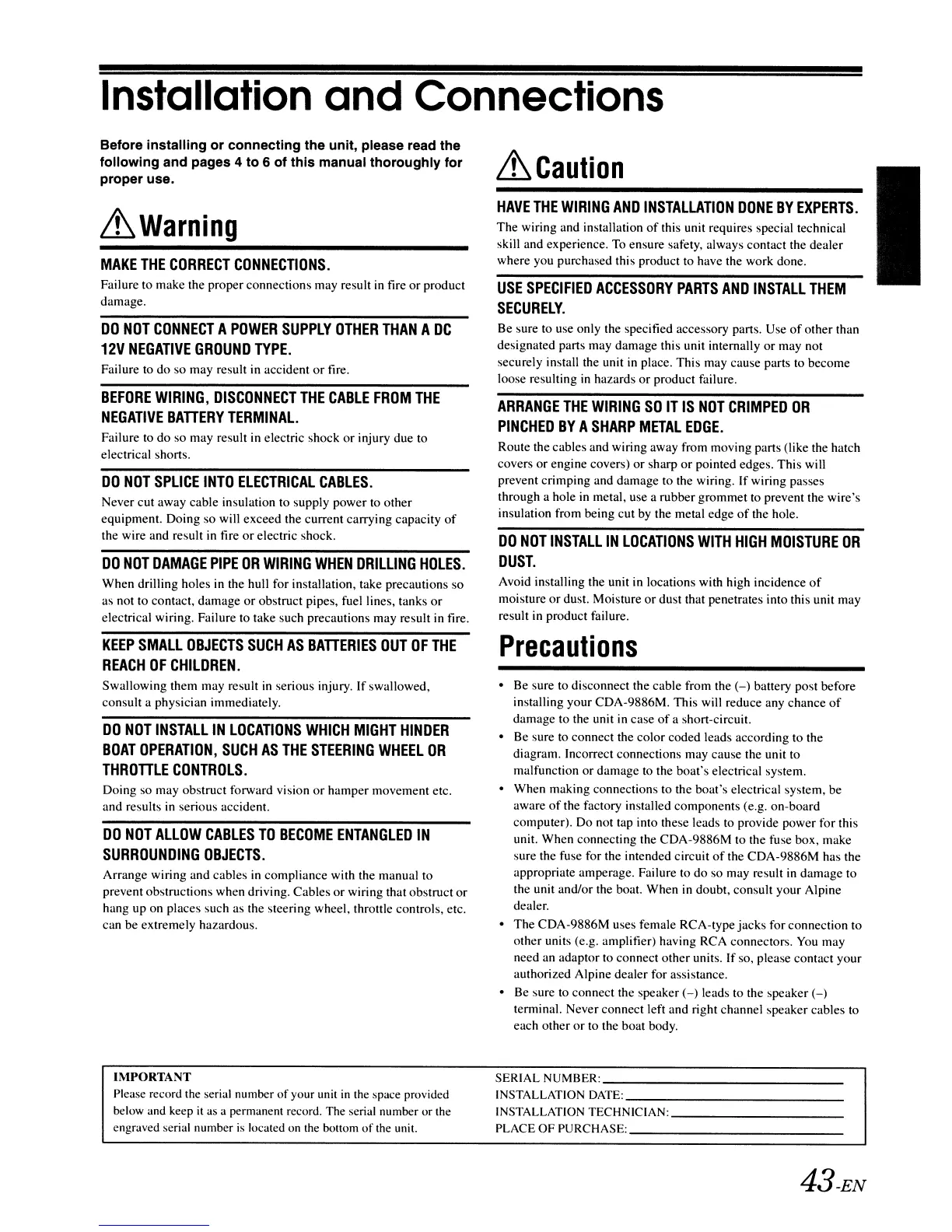

Installation
and
Connections
Before
installing
or
connecting
the unit, please read the
following
and pages 4
to
6
of
this
manual
thoroughly
for
proper
use.
&Warning
MAKE
THE
CORRECT
CONNECTIONS.
Failure to make the proper connections may result
in
fire or product
damage.
DO
NOT
CONNECT
A
POWER
SUPPLY
OTHER
THAN
A
DC
12V
NEGATIVE
GROUND
TYPE.
Failure to do so may result in accident
or
fire.
BEFORE
WIRING,
DISCONNECT
THE
CABLE
FROM
THE
NEGATIVE
BATTERY
TERMINAL.
Failure to do so may result in electric shock or injury due to
electrical shorts.
DO
NOT
SPLICE
INTO
ELECTRICAL
CABLES.
Never
cut
away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity
of
the wire and result in fire
or
electric shock.
DO
NOT
DAMAGE
PIPE
OR
WIRING
WHEN
DRILLING
HOLES.
When drilling holes in the hull for installation, take precautions so
as not to contact, damage
or
obstruct pipes, fuel lines, tanks
or
electrical wiring. Failure to take such precautions may result in fire.
KEEP
SMALL
OBJECTS
SUCH
AS
BATTERIES
OUT
OF
THE
REACH
OF
CHILDREN.
Swallowing them may result
in
serious injury.
If
swallowed,
consult a physician immediately.
DO
NOT
INSTALL
IN
LOCATIONS
WHICH
MIGHT
HINDER
BOAT
OPERATION,
SUCH
AS
THE
STEERING
WHEEL
OR
THROTTLE
CONTROLS.
Doing so may obstruct forward vision
or
hamper movement etc.
and results
in
serious accident.
DO
NOT
ALLOW
CABLES
TO
BECOME
ENTANGLED
IN
SURROUNDING
OBJECTS.
Arrange wiring and cables
in
compliance with the manual to
prevent obstructions when driving. Cables or wiring that obstruct
or
hang up on places such as the steering wheel, throttle controls, etc.
can be extremely hazardous.
IMPORTANT
Please record the serial number of your unit
in
the space provided
below and keep
it
as
a permanent record. The serial number or the
engraved serial number
is
located
on
the
bollom of the unit.
&Caution
HAVE
THE
WIRING
AND
INSTALLATION
DONE
BY
EXPERTS.
The
wiring and installation
of
this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.
USE
SPECIFIED
ACCESSORY
PARTS
AND
INSTALL
THEM
SECURELY.
Be sure to use only the specified accessory parts. Use
of
other than
designated parts may damage this unit internally
or
may not
securely install the unit
in
place. This may cause parts to become
loose resulting
in
hazards or product failure.
ARRANGE
THE
WIRING
SO
IT
IS
NOT
CRIMPED
OR
PINCHED
BY
A
SHARP
METAL
EDGE.
Route the cables and wiring away from moving parts (like the hatch
covers or engine covers) or sharp or pointed edges. This will
prevent crimping and damage to the wiring. If wiring passes
through a hole
in
metal, use a rubber grommet to prevent the wire's
insulation from being cut
by
the metal edge
of
the hole.
DO
NOT
INSTALL
IN
LOCATIONS
WITH
HIGH
MOISTURE
OR
DUST.
Avoid installing the unit in locations with high incidence
of
moisture or dust. Moisture or dust that penetrates into this unit may
result
in
product failure.
Precautions
•
Be
sure to disconnect the cable from the
(-)
battery post before
installing your CDA-9886M. This will reduce any chance
of
damage to the unit
in
case
of
a short-circuit.
• Be sure to connect the color coded leads according to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the boat's electrical system.
• When making connections to the boat's electrical system, be
aware
of
the factory installed components (e.g. on-board
computer). Do not tap into these leads to provide power for this
unit. When connecting the CDA-9886M to the fuse box, make
sure the fuse for the intended circuit
of
the CDA-9886M has the
appropriate amperage. Failure to do so may result
in
damage to
the unit and/or the boat. When in doubt, consult your Alpine
dealer.
• The CDA-9886M uses female RCA-type
jacks
for connection to
other units (e.g. amplifier) having RCA connectors.
You
may
need an adaptor to connect other units. If so, please contact your
authorized Alpine dealer for assistance.
• Be sure to connect the speaker
(-)
leads to the speaker
(-)
terminal. Never connect left and right channel speaker cables to
each other or to the boat body.
SERIAL
NUMBER:
_
INSTALLATION
DATE: _
INSTALLATION
TECHNICIAN:
_
PLACE
OF PURCHASE: _
43-EN
