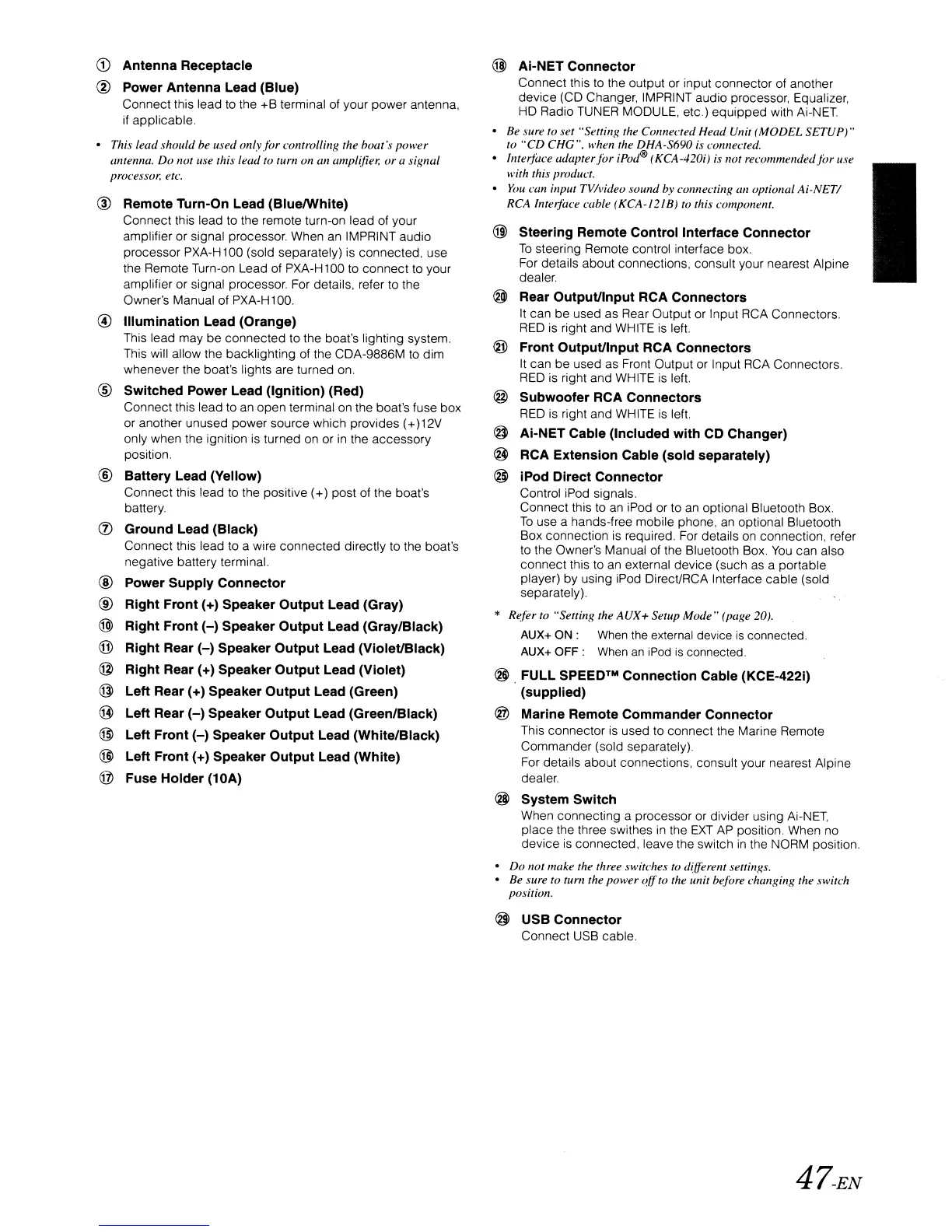

CD
Antenna Receptacle
@ Power Antenna Lead (Blue)
Connect this lead to the +B terminal of your power antenna,
if applicable.
o This lead should be used
onlyfor
controlling the boat's power
antenna. Do not use this lead to
/11m
on
lIIl
amplijier.
or
a siwzul
processU1:
ete.
@ Remote Turn-On Lead (BluelWhite)
Connect this lead to the remote turn-on lead of your
amplifier or signal processor. When an IMPRINT audio
processor PXA-H100 (sold separately) is connected, use
the Remote Turn-on Lead of PXA-H100 to connect to your
amplifier or signal processor. For details, refer to the
Owner's Manual of PXA-H100.
@ Illumination Lead (Orange)
This lead may be connected to the boat's lighting system.
This will allow the backlighting of the CDA-9886M
to
dim
whenever the boat's lights are turned on.
(§)
Switched Power Lead (Ignition) (Red)
Connect this lead to
an
open terminal on the boat's fuse box
or another unused power source which provides (+ )12V
only when the ignition
is
turned on or in the accessory
position.
® Battery Lead (Yellow)
Connect this lead to the positive
(+)
post of the boat's
battery.
CD
Ground Lead (Black)
Connect this lead to a wire connected directly to the boat's
negative battery terminal.
@ Power Supply Connector
® Right Front (+) Speaker Output Lead (Gray)
@ Right Front
(-)
Speaker Output Lead (GraylBlack)
@ Right Rear
(-)
Speaker Output Lead (Violet/Black)
@ Right Rear (+) Speaker Output Lead (Violet)
@ Left Rear (+) Speaker Output Lead (Green)
® Left Rear
(-)
Speaker Output Lead (Green/Black)
@ Left Front
(-)
Speaker Output Lead (White/Black)
@ Left Front (+) Speaker Output Lead (White)
@ Fuse Holder (10A)
@ Ai-NET Connector
Connect this to the output or input connector of another
device (CD Changer, IMPRINT audio processor, Equalizer,
HD Radio TUNER MODULE, etc.)
equipped
with Ai-NET.
o Be sure to set "Selling the Connected Head Unit (MODEL SETUP)"
/0
"CD
CHG", when the DHA-S690 is connected.
o
lnte~face
adapter
for
iPotfl
(KCA-420i) is not recommended
for
use
with this product.
o
You
can input TV/video
sOLl/ld
by connecting {III optional
Ai-NET/
RCA fnterface cable
(KCA-f2
f
B)
to this component.
@ Steering Remote Control Interface Connector
To
steering Remote control interface box.
For details about connections, consul! your nearest Alpine
dealer.
@ Rear Output/Input RCA Connectors
It
can be used as Rear Output or Input RCA Connectors.
RED
is
right and WHITE
is
left.
® Front Output/Input RCA Connectors
I!
can
be
used as Front Output or Input RCA Connectors.
RED
is right and WHITE
is
left.
@ Subwoofer RCA Connectors
RED
is
right and WHITE
is
left.
@ Ai-NET Cable (Included with CD Changer)
@ RCA Extension Cable (sold separately)
@ iPod Direct Connector
Control iPod signals.
Connect this to
an
iPod or to
an
optional Bluetooth Box.
To
use a hands-free mobile phone,
an
optional Bluetooth
Box connection is required. For details on connection, refer
to the Owner's Manual of the Bluetooth Box.
You
can also
connect this to an external device (such
as
a portable
player)
by
using iPod Direct/RCA Interface cable (sold
separately).
* Refer to "Selling the
AUX
+ Setup Mode" (page 20).
AUX+
ON:
When
the external device
is
connected.
AUX+
OFF:
When
an
iPod
is
connected.
@ . FULL
SPEEDTM
Connection Cable (KCE-422i)
(supplied)
@ Marine Remote Commander Connector
This connector
is
used to connect the Marine Remote
Commander (sold separately).
For details about connections, consult your nearest Alpine
dealer.
@ System Switch
When connecting a processor or divider using Ai-NET,
place the three swithes
in
the
EXT
AP
position. When no
device
is
connected, leave the switch
in
the NORM position.
o Do not make the three switches to diUerent sellings.
o Be sure
/0
tum
Ihe
power
o.U·/O
the unit before changing the switch
position.
@ USB Connector
Connect USB cable.
47-EN
