Notes
• HPF (high pass filter): Cuts the lower frequencies and allows the higher
frequencies to pass.
• LPF (low pass filter): Cuts the higher frequencies and allows the lower
frequencies to pass.
• Slope: The level change (in dB) for a frequency change of one octave.
• The higher the slope value, the steeper the slope becomes.
• Adjust the slope to FLAT to bypass the HP or LP filters.
• Do not use a tweeter without the HPF on or set to a low frequency, as it
may cause damage to the speaker due to the low frequency content.
• You cannot adjust the crossover frequency higher than the HPF or lower
than the LPF.
• Adjustment should be made according to the recommended crossover
frequency of the connected speakers. Determine the recommended
crossover frequency of the speakers. Adjusting to a frequency range
outside that recommended may cause damage to the speakers.
For the recommended crossover frequencies of Alpine speakers, refer to
the respective Owner’s Manual.
We are not responsible for damage or malfunction of speakers caused by
using the crossover outside the recommended value.
Switching the 2WAY/3WAY system mode
About the 2WAY/3WAY system mode
1 Press the YSETUP and f at the same time.
Note
• In this case, the device will be muted.
2Turn the Rotary encoder to select the desired system
mode, and then press ENTER.
Note
• When the system mode is changed, the setting items for X-OVER
are displayed. Please follow the instructions of “Adjusting the
Crossover Settings (X-OVER)” on page 18 to made the setting.
3 After setting, turn the Rotary encoder to select DONE, and
then press ENTER.
“TURN ACC OFF AND ON” will be displayed.
4 Switch the ignition key to ACC OFF.
Depending on the response characteristics of the speaker,
care should be taken when you switch the 2WAY/3WAY
system, as speaker damage may result.
5 Switching the ignition key from ACC OFF to ON.
The change is saved.
Notes
• If you skip the 4th and the 5th steps, the setting results will not be
saved and unit will return to previous mode.
• While playing back music after the vehicle’s ignition is turned off
(STAY ON mode), you cannot adjust the 2WAY/3WAY mode (refer
to “Setting the stay on mode” on page 28).
Low range
High rangeMid range
(Dierent from actual display)
Level adjusting
(0 to −12 dB)
Output frequency range
Slope FLAT
Slope adjusting
20 Hz
(Dierent from actual display)
HPF cut-o
frequency
LPF cut-o
frequency

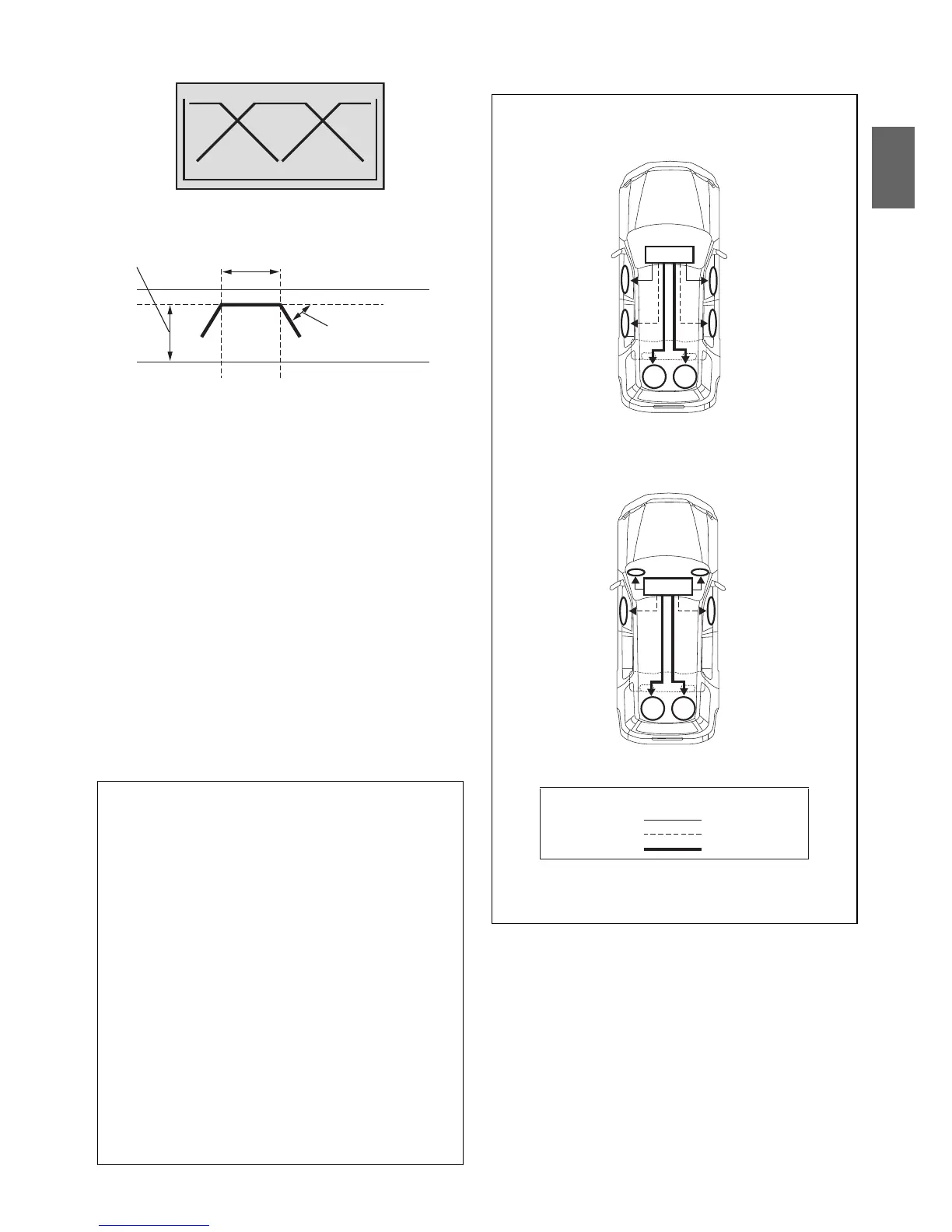

The X-OVER for a 2WAY system (frequency range is divided
between highs for front/rear and lows for the Subwoofer).
2WAY mode
The X-OVER for a 3WAY system whose frequency range is divided
among the highs (Front), mids (Front), and lows (Subwoofer).
3WAY mode
• Use the Sub-W output cord to connect the unit to the low range
speaker.
• You cannot adjust the fader when set to 3WAY.
Front high range
speaker (R)
Front high range
speaker (L)
Rear high range
speaker (L)
Low range
speaker (L)
Rear high range
speaker (R)
Low range
speaker (R)
Mid range
speaker (R)
Mid range
speaker (L)
High range
speaker (L)
Low range
speaker (L)
High range
speaker (R)
Low range
speaker (R)
Front output
Output of this unit:
Rear output
SUB-W output

Alpine CDE-W265BT Specifications

General

MP3 playback	Yes
Operating temperature (T-T)	-10 - 60 °C
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	CD, CD-DA, CD-R, CD-RW
Equalizer bands quantity	9
Signal-to-Noise Ratio (SNR)	105 dB
AM band range	530 - 1710 kHz
FM band range	87.7 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	18
Card reader integrated	No

Weight and Dimensions

Weight	1850 g
Dimensions (WxDxH)	178 x 161.7 x 100 mm
