Alpine CDE-W265BT User Manual

22-EN

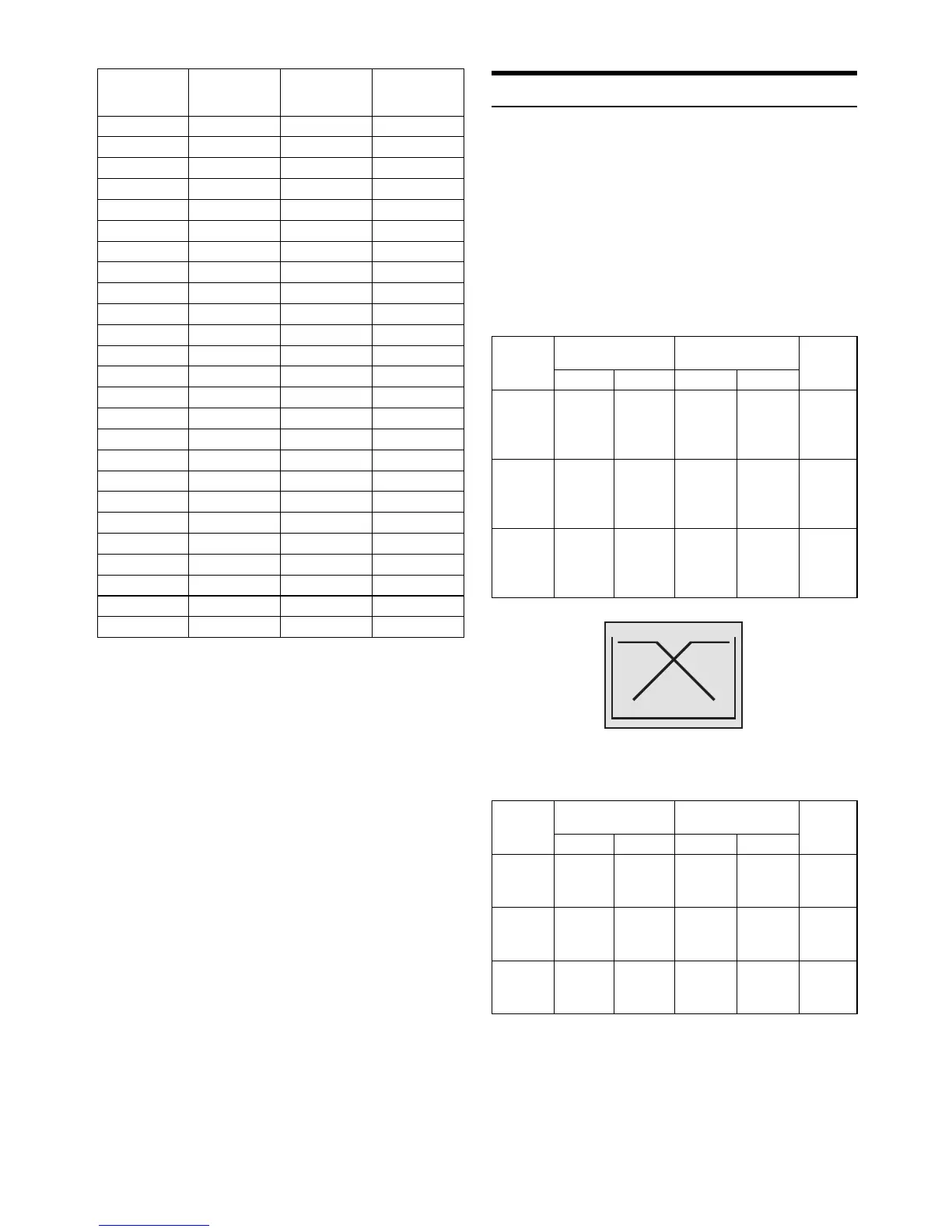

About the Crossover
Crossover (X-OVER):
This unit is equipped with an active crossover. The crossover limits the
frequencies delivered to the outputs. Each channel is controlled
independently. Thus, each speaker pair can be driven by the
frequencies for which they have been optimally designed.
The crossover adjusts the HPF (high pass filter) or LPF (low pass filter) of
each band, and also the slope (how fast the filter rolls off the highs or
lows).
Adjustments should be made according to the reproduction
characteristics of the speakers. Depending on the speakers, a passive
network may not be necessary. If you are unsure about this point,
please consult your authorized Alpine dealer.
2WAY mode
3WAY mode
* Depending on the response characteristics of the speaker, care should
be taken when setting the response slope of the high range speaker to
FLAT in 3WAY mode, as speaker damage may result (page 23).
75 7.5 255.0 100.5
76 7.6 258.4 101.8
77 7.7 261.8 103.2
78 7.8 265.2 104.5
79 7.9 268.6 105.9
80 8.0 272.0 107.2
81 8.1 275.4 108.5
82 8.2 278.8 109.9
83 8.3 282.2 111.2
84 8.4 285.6 112.6
85 8.5 289.0 113.9
86 8.6 292.4 115.2
87 8.7 295.8 116.6
88 8.8 299.2 117.9
89 8.9 302.6 119.3
90 9.0 306.0 120.6
91 9.1 309.4 121.9
92 9.2 312.8 123.3
93 9.3 316.2 124.6
94 9.4 319.6 126.0
95 9.5 323.0 127.3
96 9.6 326.4 128.6
97 9.7 329.8 130.0
98 9.8 333.2 131.3
99 9.9 336.6 132.7
Delay
Number
Time
Difference
(msec)
Distance
(cm)
Distance
(inch)
Cut-off frequency
(1/3 octave steps)
Slope
Level
HPF LPF HPF LPF
Low
range
speaker
----
20 Hz -
200 Hz
----
FLAT,
6, 12, 18,
24
dB/oct.
0 to
−12 dB
Rear
high
range
speaker
20 Hz -
200 Hz
----
FLAT,
6, 12, 18,
24
dB/oct.
----
0 to
−12 dB
Front
high
range
speaker
20 Hz -
200 Hz
----
FLAT,
6, 12, 18,
24
dB/oct.
----
0 to
−12 dB
Cut-off frequency
(1/3 octave steps)
Slope
Level
HPF LPF HPF LPF
Low
range
speaker
----
20 Hz -
800 Hz
----
FLAT,
6, 12
dB/oct.
0 to
−12 dB
Mid
range
speaker
20 Hz -
800 Hz
20 Hz -
20 kHz
FLAT,
6, 12
dB/oct.
FLAT,
6, 12
dB/oct.
0 to
−12 dB
High
range
speaker
1 kHz -
20 kHz
*
----
FLAT,
6, 12
dB/oct.
----
0 to
−12 dB
Low range
High range
(Dierent from actual display)

Alpine CDE-W265BT Specifications

General

MP3 playback	Yes
Operating temperature (T-T)	-10 - 60 °C
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	CD, CD-DA, CD-R, CD-RW
Equalizer bands quantity	9
Signal-to-Noise Ratio (SNR)	105 dB
AM band range	530 - 1710 kHz
FM band range	87.7 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	18
Card reader integrated	No

Weight and Dimensions

Weight	1850 g
Dimensions (WxDxH)	178 x 161.7 x 100 mm
