Alpine CDE-W265BT User Manual

58-EN

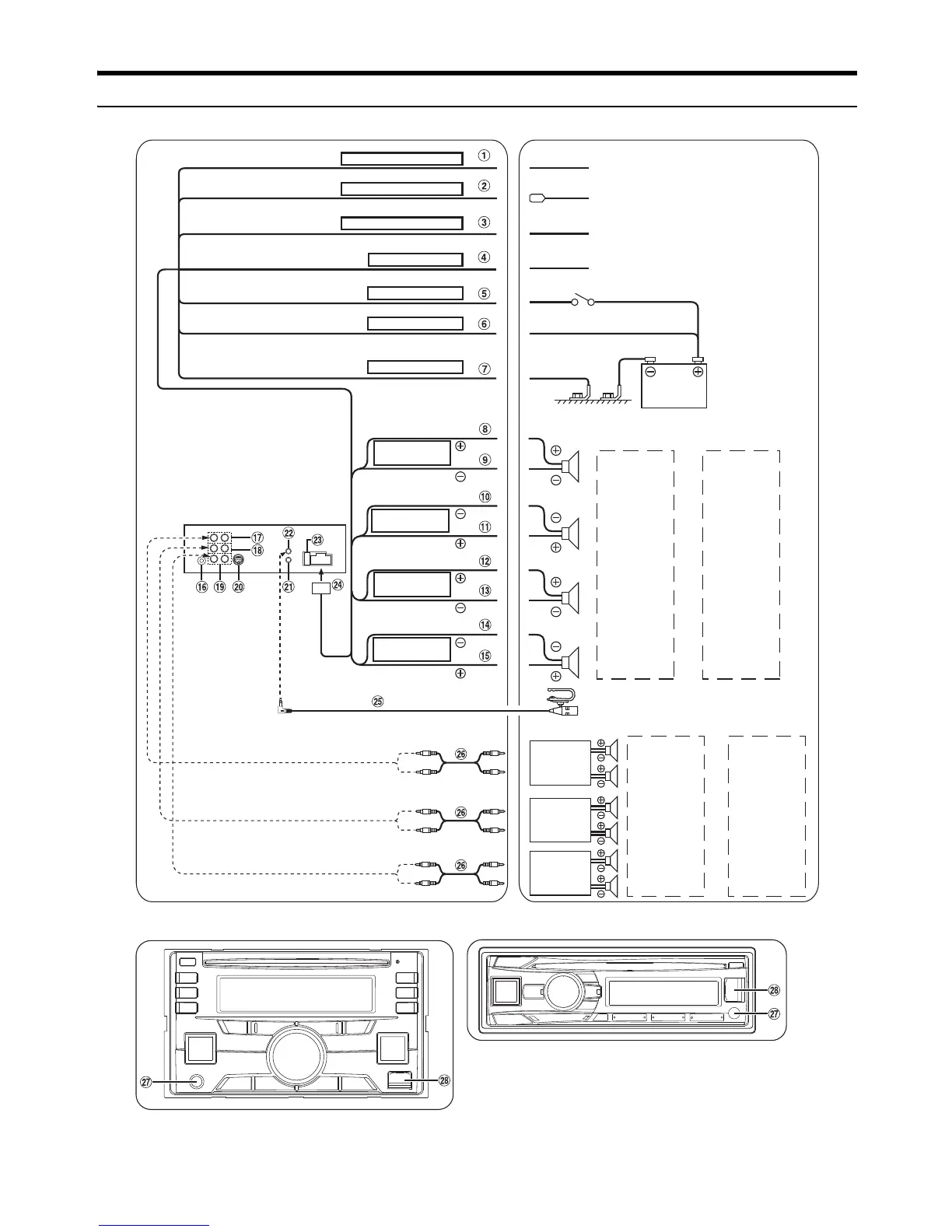

Connections
ILLUMINATION
REMOTE TURN-ON
IGNITION
GND
POWER ANT
AUDIO INTERRUPT IN
BATTERY
SPEAKER
RIGHT FRONT
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
Microphone
(Blue/White)
(Pink/Black)
To amplier
To the instrument cluster illumination lead
(Red)
To power antenna
To External Unit (AUX)
Subwoofers
(Black)
Ignition Key
(Blue)
(Orange)
(Yellow)
Battery
Speakers
2WAY system
2WAY system
3WAY system
3WAY system
(Green)
Front high
range (L)
(Green/Black)
(White)
Front high
range (R)
(White/Black)
(Gray/Black)
Rear high
range (L)
Front high
range (R)
High
range (R)
Mid
range (R)
Mid
range (L)
High
range (L)
Rear high
range (R)
Rear high
range (L)
Front high
range (L)
(Gray)
(Violet/Black)
Rear high
range (R)
(Violet)
High
range (L)
Amplier
High
range (R)
Mid
range (L)
Amplier
Mid
range (R)
Amplier
Subwoofers
CDE-W265BT CDE-164BT

Alpine CDE-W265BT Specifications

General

MP3 playback	Yes
Operating temperature (T-T)	-10 - 60 °C
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	CD, CD-DA, CD-R, CD-RW
Equalizer bands quantity	9
Signal-to-Noise Ratio (SNR)	105 dB
AM band range	530 - 1710 kHz
FM band range	87.7 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	18
Card reader integrated	No

Weight and Dimensions

Weight	1850 g
Dimensions (WxDxH)	178 x 161.7 x 100 mm
