Camera Setting
Touch [Camera] on the Application setup menu in step 3. Refer to
“Application Setup Operation” (page 32).
With an optional camera connected, its video is output to the monitor.
When the camera is connected, set this item.
Setting item: AUX Camera
Setting contents: Off (Initial setting) / Rear / OTHER
• When set to “OTHER,” a camera icon appears on the Home screen.
• A camera and auxiliary device cannot be connected to the ICS-X7 at
the same time. If “Rear” or “OTHER” is set, “AUX In” (page 34)
will be set to “Off.”
After selecting “Rear” or “OTHER” in the “AUX Camera”
setting, touch of [AUX Camera], the following
additional items can be adjusted.
If you select “Rear,” you can adjust the camera guide position.
Setting item: Guide Adjustment
1
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
2
Touch the guide you intend to adjust.
Guide line can also be selected by touching [] [].

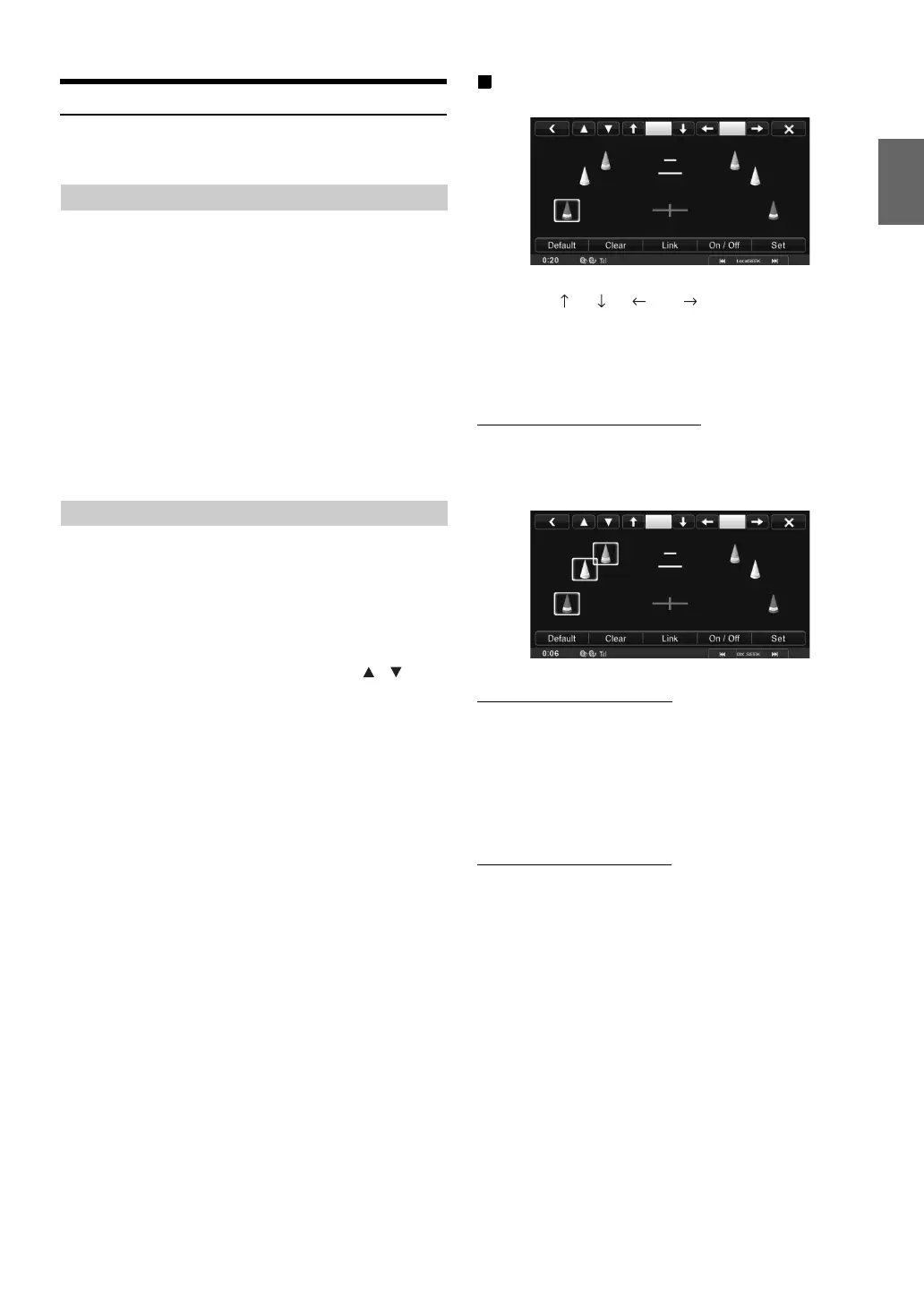

Display example for rear camera mode
3
Touch [], [], [] or [] to adjust the position
of the guide.
• Touching [Clear] clears adjustments and returns to the setting
before guide line alteration.
4
After the adjustment is completed, touch [Set].
Adjusting guides simultaneously
1
Touch [Link].
The 3 vertical guides of the currently-selected guide link
together, allowing them to be adjusted simultaneously.
Turning guide display On/Off
Turning the selected guide off.
1
Touch [On/Off].
The currently selected guide will turn off.
2
To turn the guide on, touch [On/Off] again.
• Guides that are turned off are still adjustable.
Returning guides to default.
1
Touch [Default].
A message window will appear.
2
Touch [OK].
Adjusted values will return to default settings.
Setting the Camera Input
Rear: Rear camera
OTHER: Side camera, Room camera, etc.
Adjusting the Rear Camera Guide
