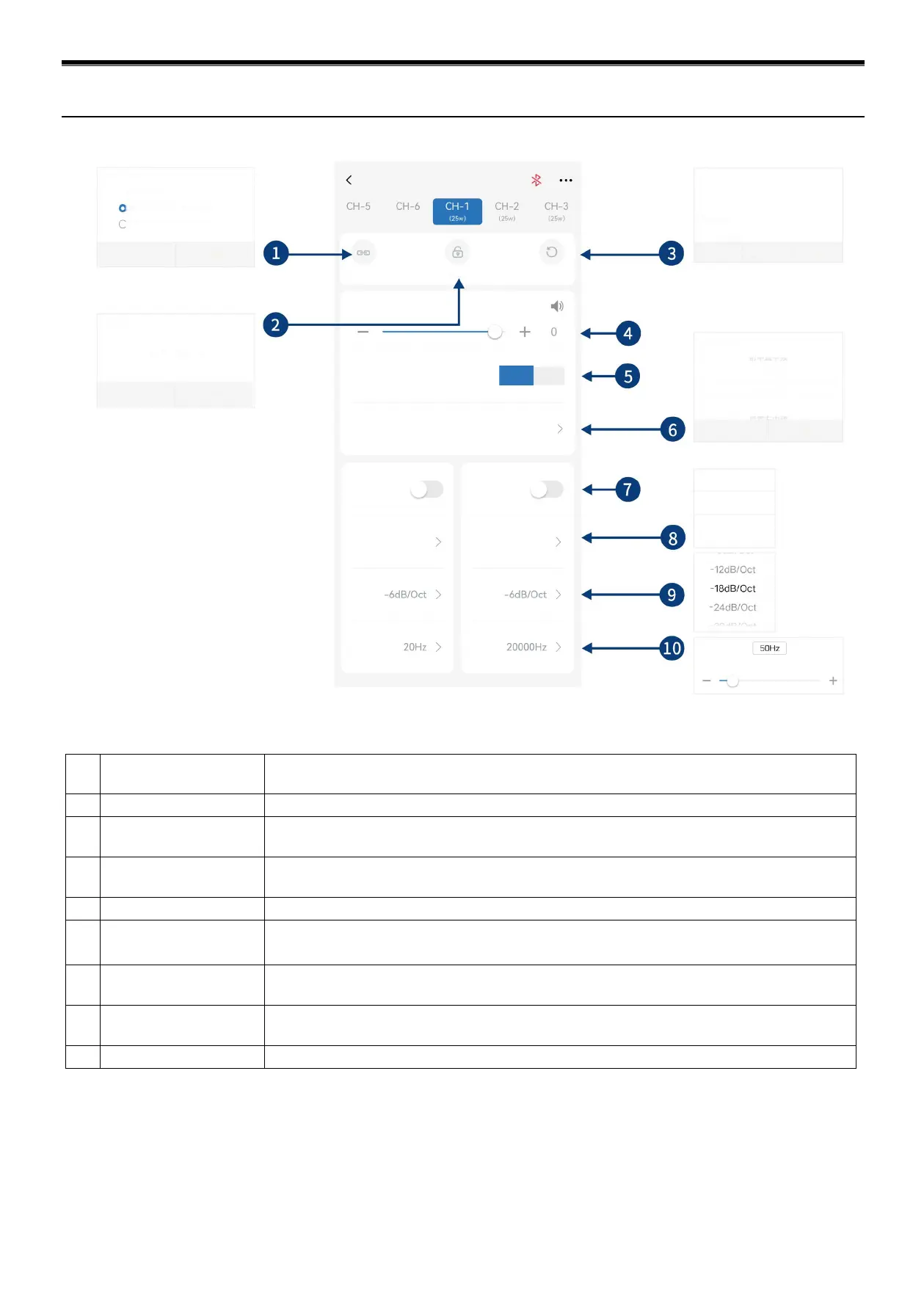

Alpine PXE-M60-4 - Diagram of Mobile App (Channel)

11
1 Debugging
The debugging modes to choose from include “Copy channel EQ / volume from left to right”
or “Copy channel EQ / volume from right to left”.
2
Locking
You can lock the current channel type.
3 Reset channel type
Select "Clear" to set the current channel type as Empty; select "Default" to set the current
channel type as Factory setting.
4 Channel gain
Push the fader left and right to adjust the channel volume in the range of -60dB ~ +6dB; click
the speaker button to mute.
5
Channel phase
Select the channel phase (normal phase or reverse phase).
6
Channel type
Select the output channel type in the pop-up window.
7
Divider
Turn the low-pass filter on or off .
8 Filter type
Select filter type (Linkwitz-Riley, Butterworth or Bessel). Caution: If the slope is -6dB/Oct, the
type is not settable.
9 Frequency divider slope
Select the divider slope (-6dB/Oct, -12dB/Oct, -18dB/Oct, -24dB/Oct, -30dB/Oct, -36dB/Oct,
-42dB/Oct, or -48dB/Oct).
10
Divider frequency
Select the divider frequency (between 20Hz and 20kHz).
Channel phase
Channel type
High pass
Type
Slope
Frequency
Frequency
Slope
Type
Low pass
Empty
Empty
Bessel
Linkwitz-Riley
Butterworth
Front left full frequency
Reverse
phase
Normal
phase
Channel type
Rear-middle high-frequency
Ultralow frequency
Left ultralow frequency
Cancel
Confirm
Cancel
Clear
Default
Reset prompt
After system reset, the output mode of the power
amplifier will change. Please confirm that the channels
of the high pitch speakers after system reset are the
same with those of the current system, then increa se the
volume and listen, so as to prevent the speakers from
burning out.
Reset
Locking
Debugging
Gain
Channel (CH-1)
Cancel
OK
Lock prompt
Please confirm if the output configuration is locked?
Debugging prompt
Please select the debugging mode
Cancel
OK
Copy channel EQ / volume from Right to Left
Copy channel EQ / volume from Left to Right
Diagram of Mobile App (Channel)
