Alpine UTX-M06 - Diagram of Complex Line Connection

6

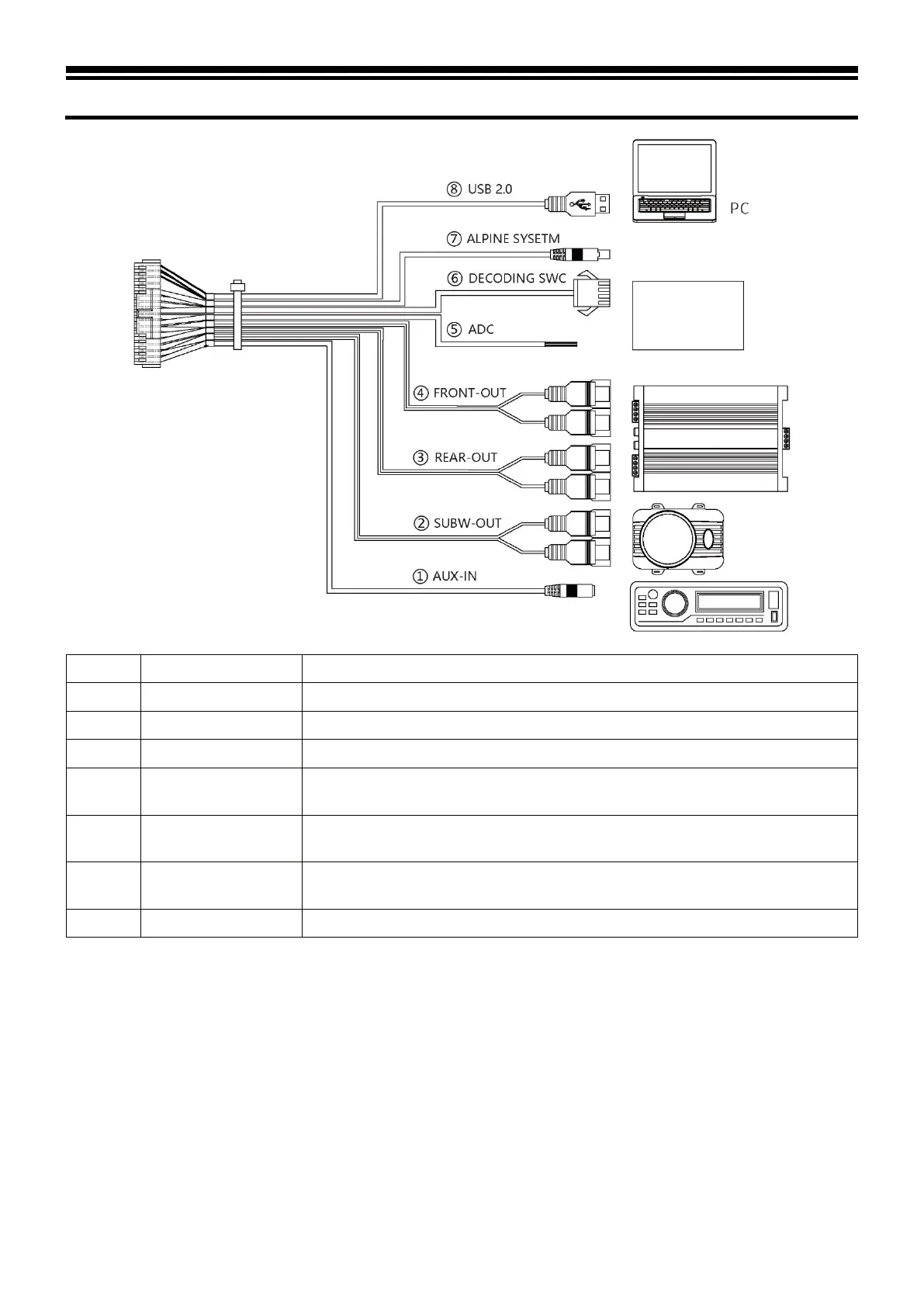

Diagram of complex line connection
1
AUX-IN
Low level input, can be connected to an on-vehicle CD/DVD player.
2
SUBW-OUT
Subwoofer output, can be connected to an active subwoofer.
3
REAR-OUT
Rear sound field RCA output, can be connected to an external power amplifier.
4
FRONT-OUT
Front sound field RCA output, can be connected to an external power amplifier.
5 ADC
ADC steering wheel controller interface, supports resistive control of the steering
wheel.
6 DECODING SWC
Decoding type steering wheel controller interface (not supported for now, will be
updated in the near future).
7 ALPINE SYSTEM
It can be connected to Alpine on-vehicle DSP and only supports products with
matching controller interfaces.
8
USB 2.0
USB 2.0 interface, can be connected to a PC for tuning operation.
Steering wheel
controller box
External
power
amplifier
Active
subwoofer
On-vehicle
CD/DVD player
