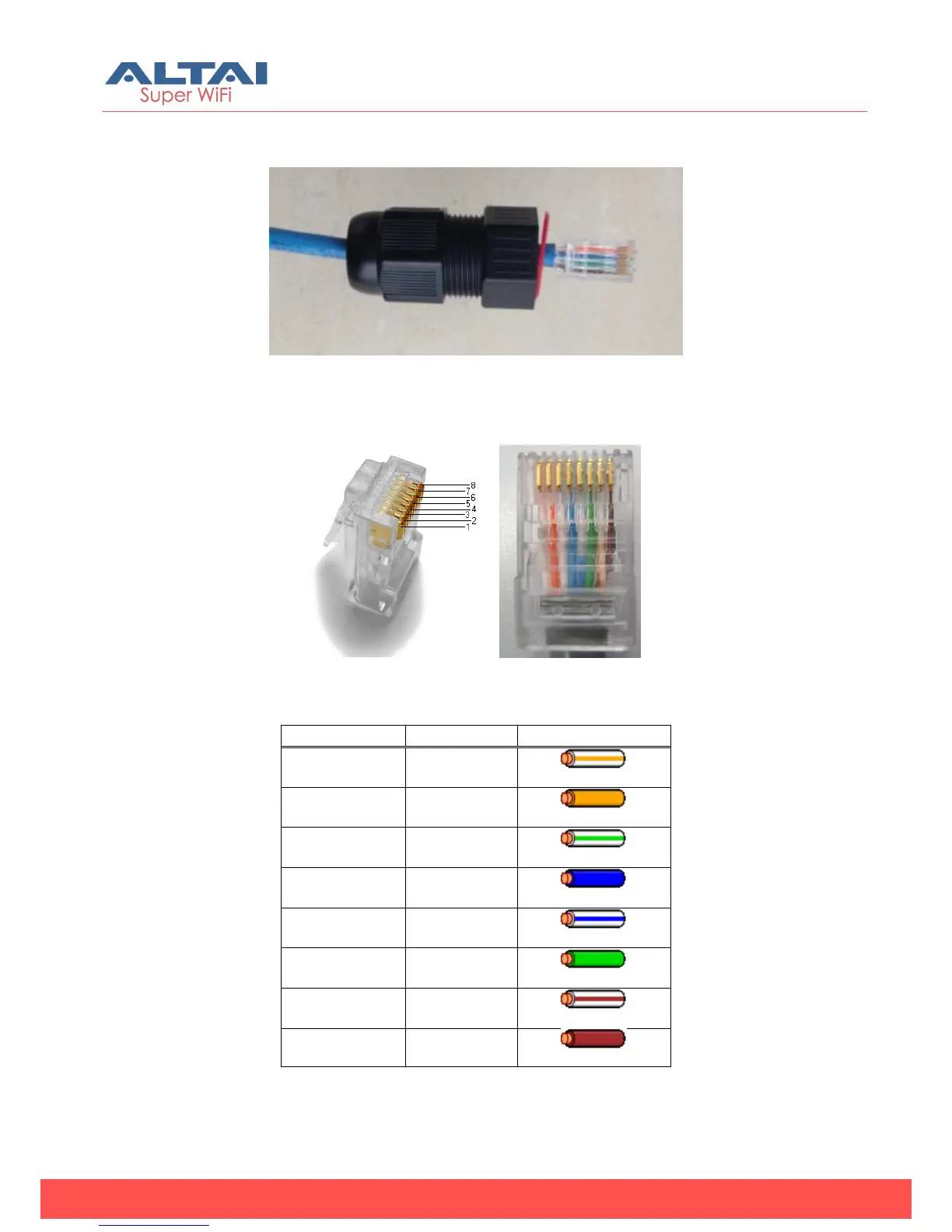

5. Use the crimping tool to crimp the RJ-45 connector to the Ethernet
cable (see Figure 11).
Figure 11 - Use the crimping tool to crimp the RJ-45 connector to the Ethernet cable
2.6. Ethernet Cable Wiring
Pins on RJ-45 connecter are shown in Figure 12.
Figure 12 - Pins on RJ-45 connector
Assign the untwisted wire of Ethernet cable into the order which is
shown in Table 1.
Pins
Pair
Wire Color
1
2
white/orange strip
2
2
orange solid
3
3
white/green strip
4
1
blue solid
5
1
white/blue strip
6
3
green solid
7
4
white/brown strip
8
4
brown solid
Table 1 - Assignment of wire pair of Ethernet cable and pins of RJ-45 connector
