Altai A3-Ei Dual-band 3x3 802.11ac Wi-Fi Access Point
Installation Guide
2.7. Power over Ethernet (PoE)
Refer to the following diagram for installing the components by using
PoE to power the A3-Ei.

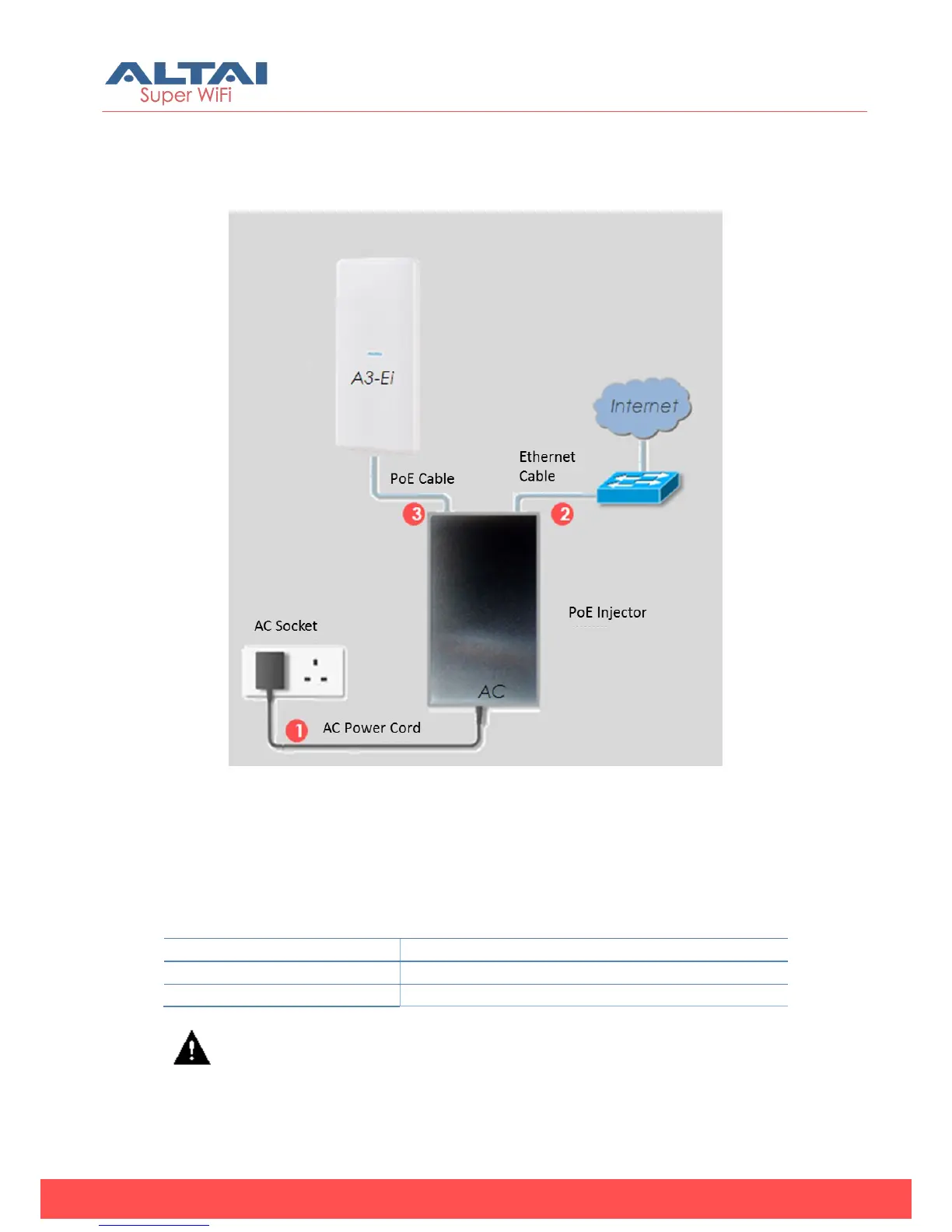

Figure 13 - Installation components for a PoE installation
Note:
 AC power cord, Ethernet cable, and PoE cable are not provided
in the package
 Ethernet cable and PoE cable should be CAT 5e or above
 Maximum length of Ethernet cable and PoE cable must be less
than (<) 100m
PoE Injector Connection:
Port on PoE Injector
Connect to
Data In
Backhaul link, computer or peripherals
Data & Power Out
A3-Ei Ethernet Port
Caution: Make sure cables are connect to correct ports of the PoE to avoid
electrical damage to peripheral Ethernet port!
