Lab 4: USB Device
59
 Execute the software: “C:\DE2\UP4_NIOS_DEVICE_LED\
ISP1362DcUsb.exe”
 Click on “ADD” button to increment the number/register shown on the
7-SEG displays. The incremented result is also sent back to PC side using
the USB link.
 Click on “Clear” button to clear the register content.

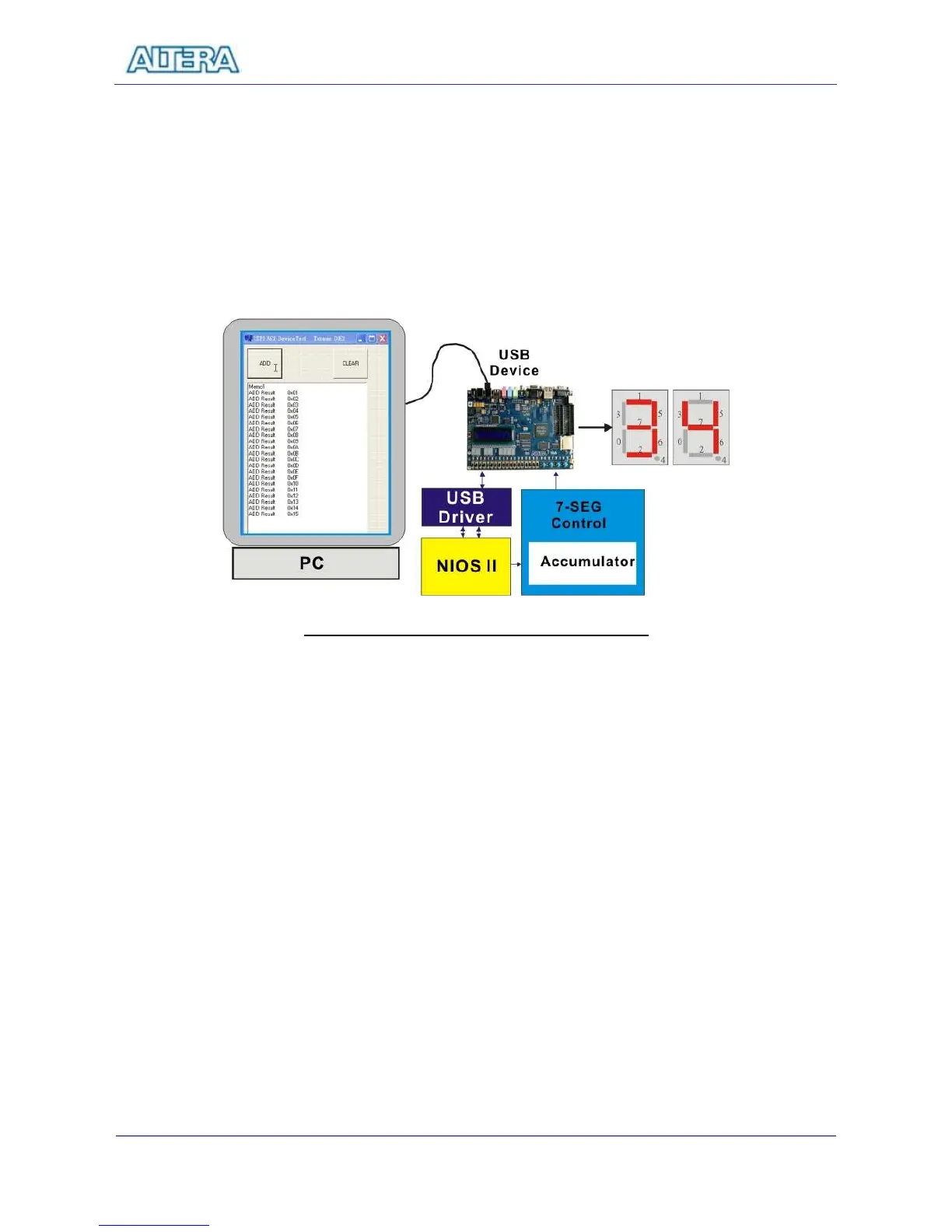

Figure 8.2 The Lab Setup for USB Device Application
