Alto ENCORE L2426 - Rear Panel Assembly Drawing

Page -36- CLARKE TECHNOLOGY Operator's Manual -Encore S2426/L2426
CLARKE TECHNOLOGY
Encore S2426/L2426

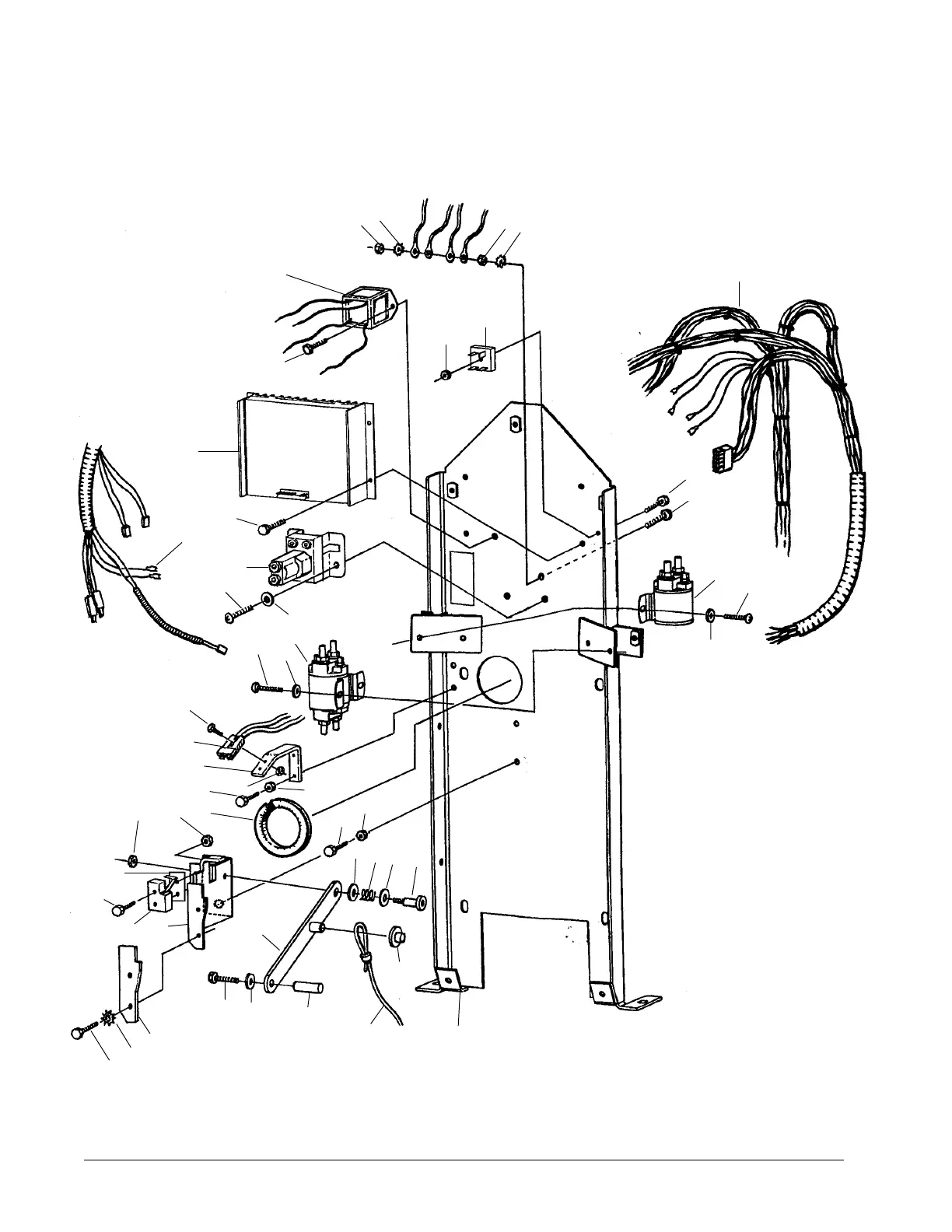

Rear Panel Assembly Drawing 8/00
Drawing #10064A (L)
Drawing #10067A (S)
36
1
2
1
2
3
4
5
6
7
8
9
10
12
13
14
16
17
16
15
18
21
20
19
23
2
22
24
25
26
27
3
28
29
6
9
10
31
9
10
33
34
32
35
34
30
11
10
15
3
11
37
