CLARKE TECHNOLOGY Operator's Manual - Encore S2426/L2426 Page -49-
CLARKE TECHNOLOGY
Encore S2426/L2426

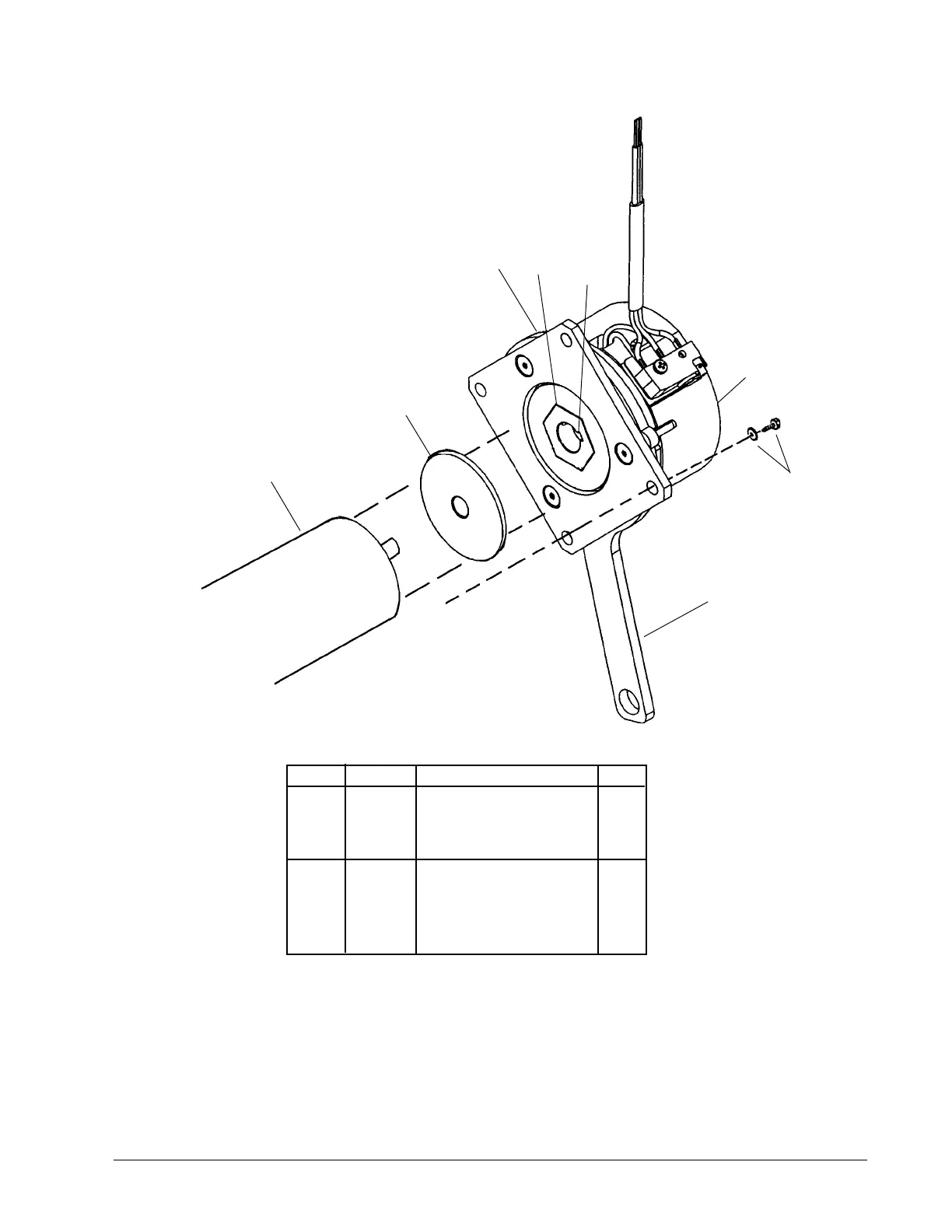

Optional Brake Drawing and Parts List 5/01
10072A - "L" Model
6
Ref # Part No. Description Qty
1 50981A
2 60388A Spacer 1
3 30095A Tie, Cover Retainer 1
4 80123A Nut, Brake Drive 1
5 80125A Key, 3/32 Sq. x 1/4 Lg. 1
6 30094A Cover, Vinyl 1
7 80124A Screw Set (Brake Nut 2
to Motor Shaft)
8 10160A Brake, Asm. 24V 1
NOTE: Only use spacer (ref. #2) on transaxles that have a circular step and
mounting nuts protruding from end of motor. The motor that uses the
spacer can be identified by the motor brush caps protruding past the outside
diameter of the motor.
7
3
8
2
4
5
1
