Page -48- CLARKE TECHNOLOGY Operator's Manual -Encore S2426/L2426
CLARKE TECHNOLOGY
Encore S2426/L2426

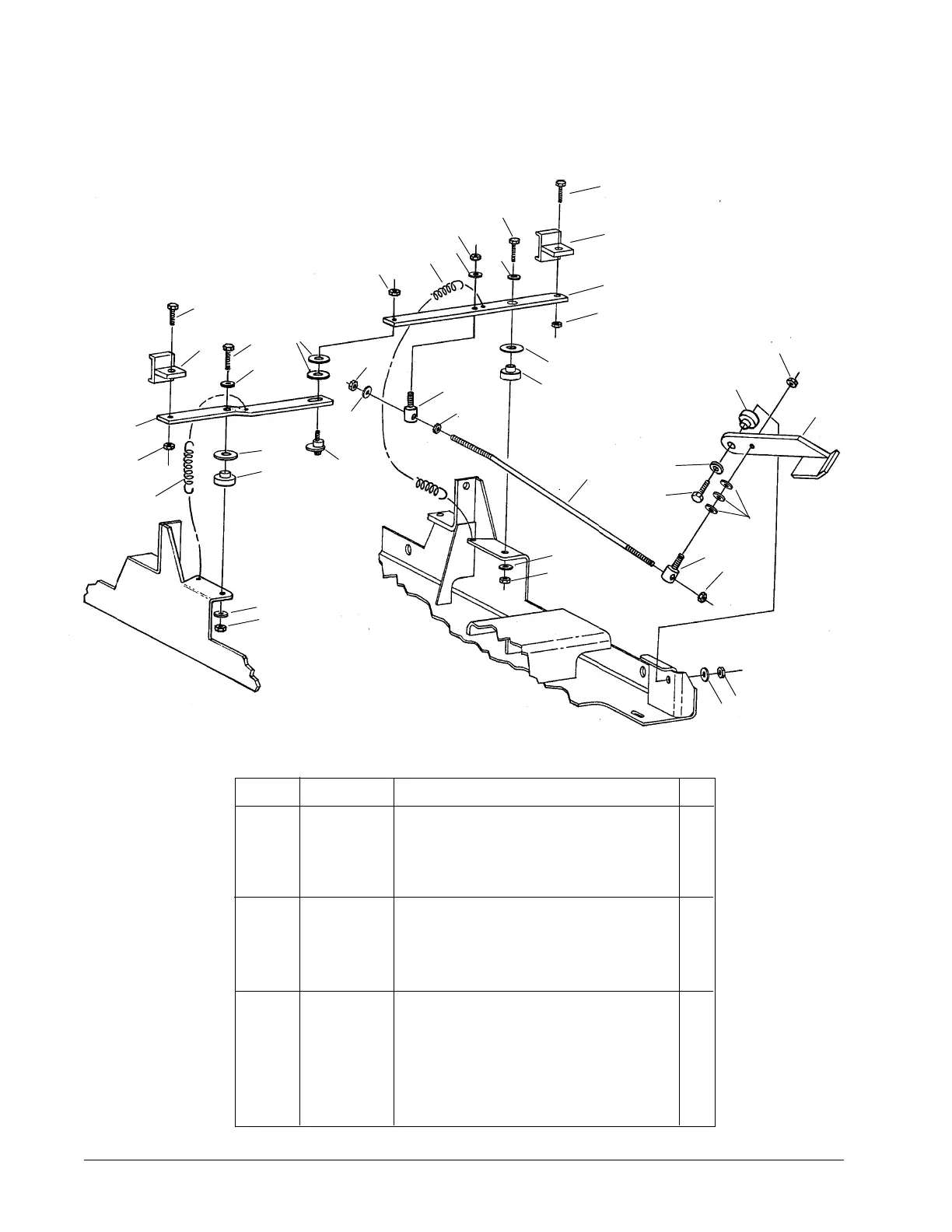

Optional Brake Drawing and Parts List 11/23/00
10073A - "S" Model
Ref. # Part No. Description Qty
1 85811A Screw, 5/16-18 x ¾ 2
2 60359A Pad, Brake 2
3 60271A Brake, Bar L.H. 1
4 920110 Nut, 5/16-18 ESNA 6
5 980651 Washer, Flat, 5/16 10
6 67877A Spacer 3
7 85814A Screw, 5/16-18 x 1¼ 3
8 60268A Lever, Brake Pedal 1
9 60361A Cam, Brake 1
10 60267A Rod, Brake 1
11 81104A Nut, ¼-20 ESNA 4
12 848508 Swivel, Rod, Brake 2
13 87026A Washer, Flat, ¼ 1
14 50969A Spring, Brake Asm. 2
15 87607A Washer, Flat Nylon 4
16 60362A Brake, Bar R.H. 1
NI 77266B Label, Parking Brake 1
