CLARKE TECHNOLOGY
Encore S2426/L2426

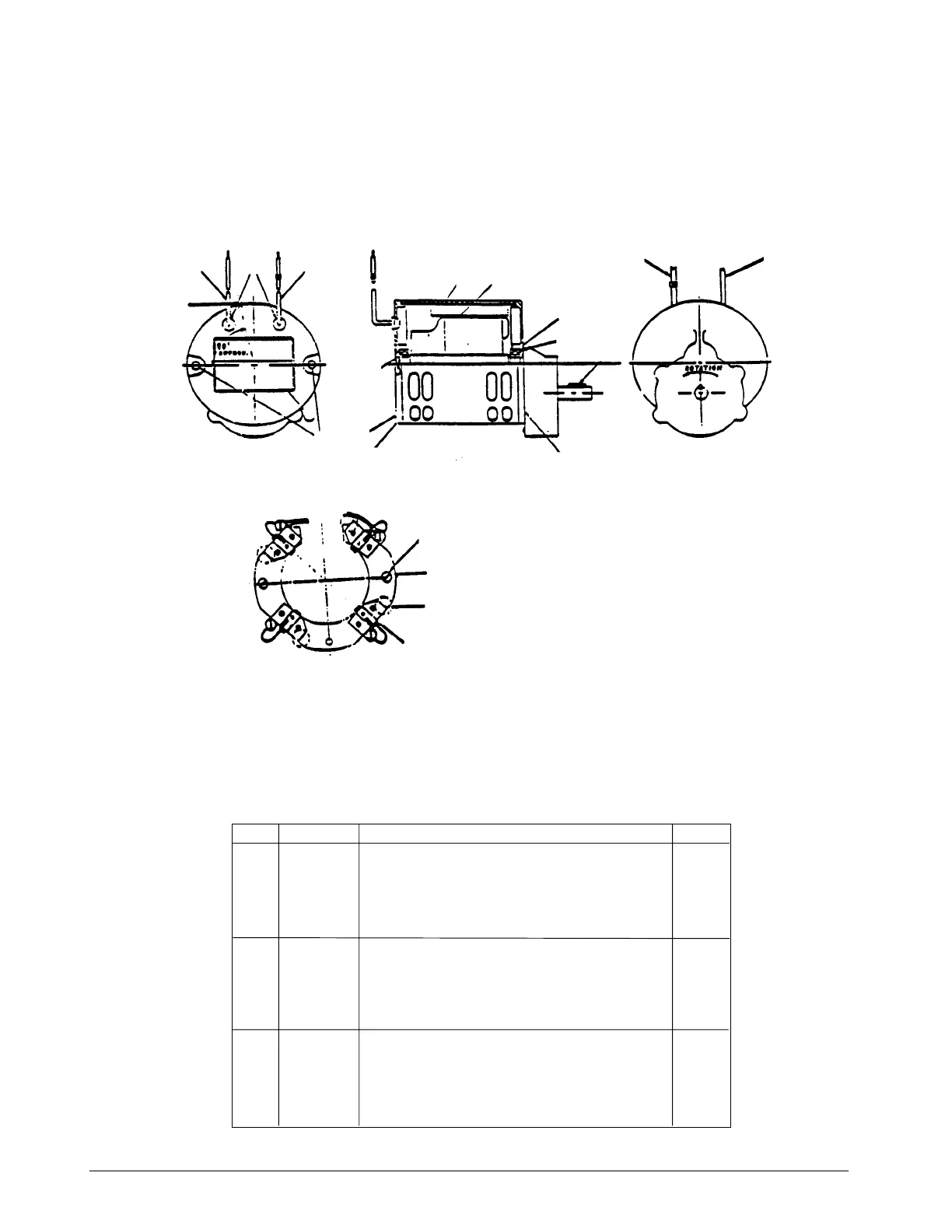

Brush Motor Drawing & Parts List 8/00
Motor Asm. 44809B
Item Part No. Description Qty
1 56478A Stator Frame Assembly (w/Magnets & Clips) 1
2 50142A Armature Assembly (w. B.E. & F.E. Bearings) 1
3 902654 Bearings B.E. 1
4 902550 Bearing F.E. 1
5 Commutator Bracket Assembly 1
(w/Brush BRD Assembly Leads)
6 50520A Commutator Bracket 1
7 56480A Strain Relief 2
8 962546 Brush Board Screw 2
9 50517A Brush Board Assembly (w/ Springs & Brushes) 1
10 448396 Brush Spring 4
11 40826A Brush Assembly 4
12 55657A Lead Assembly 1
13 55656A Lead Assembly 1
14 Helical Washer 1
15 50515A Thru Bolt 2
16 80501A Shaft Key 1
17 54238A B.E. Bracket Assembly (Gear Box) 1
13
Seam Location
7
12
15
4
5
6
1
2
3
14
16
17
12
13
8
9
10
11
*
*
* NOTE: Parts not available at this time.
Page -52- CLARKE TECHNOLOGY Operator's Manual -Encore S2426/L2426
