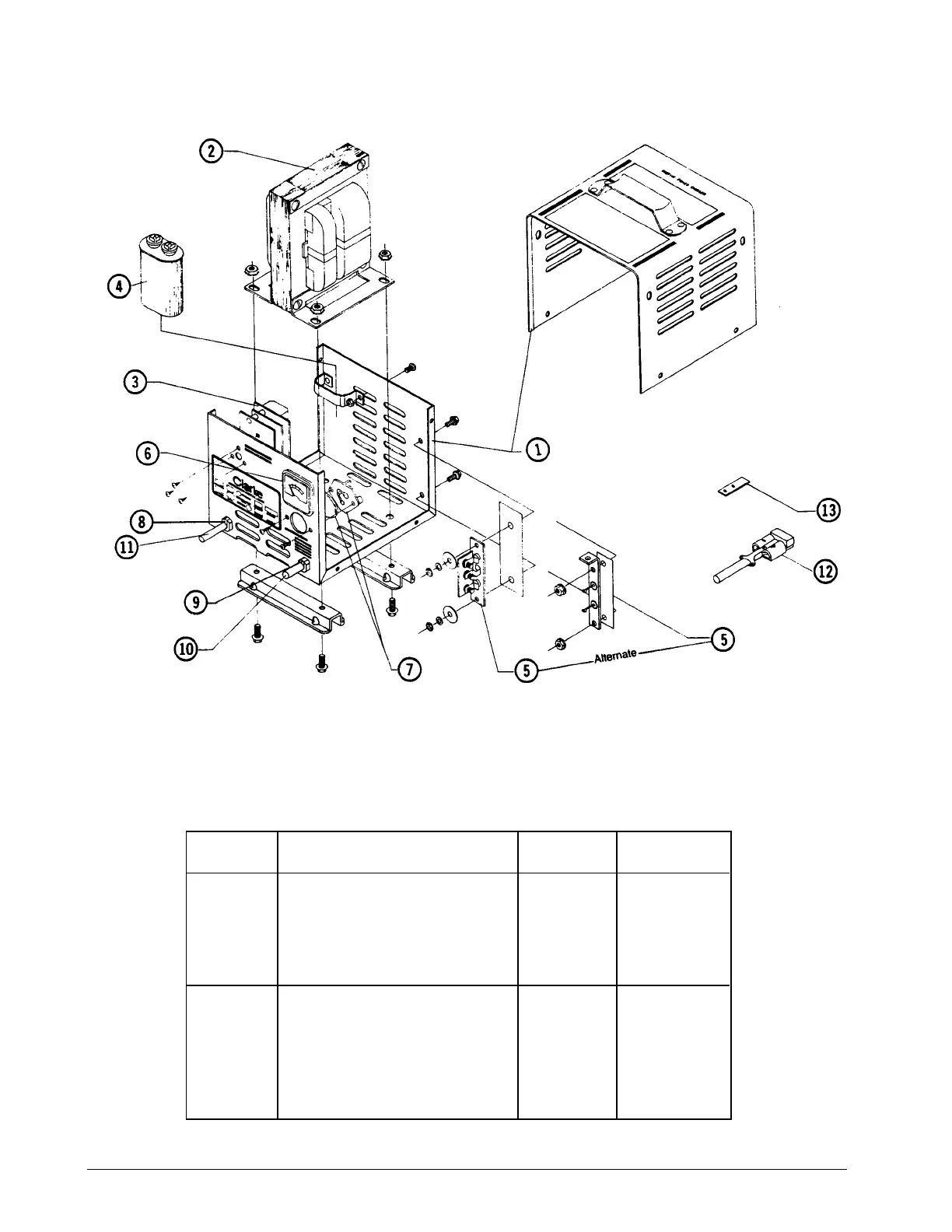

Charger Charger
Ref. No. Description 40512A 40513A
1 Charger Case 41129A 41128A
2 Transformer 48413A 48409A
3 Electronic Controller Kit 47500A 48200A
4 Capacitor, 660 V.A.C. 912132 912132
5 Heat Sink Assembly 912212 912212
6 Ammeter 40200A 40200A
7 Fuse Holder 912382 912382
8 Strain Relief, A.C. Cord 837525 837525
9 Strain Relief, D.C. Cord 747553 747553
10 D.C. Cord Assembly 51986A 51986A
11 A.C. Cord Assembly 51974A 908947
12 Housing, Red 911470 911470
13 D.C. Plug Lock Key 795020 795020
CLARKE TECHNOLOGY
Encore S2426/L2426
Battery Charger Drawing and Parts List 5/00
Charger #40512A: 24 volt, 25 amp D.C., 115 volt, A.C., 60 Hz.
Charger #40513A: 24 volt, 25 amp D.C., 230 volt, A.C., 50 Hz
WARNING: All electrical repairs must be performed by qualified personnel only.
* NOTE: Parts not available at this time.
Page -54- CLARKE TECHNOLOGY Operator's Manual -Encore S2426/L2426
