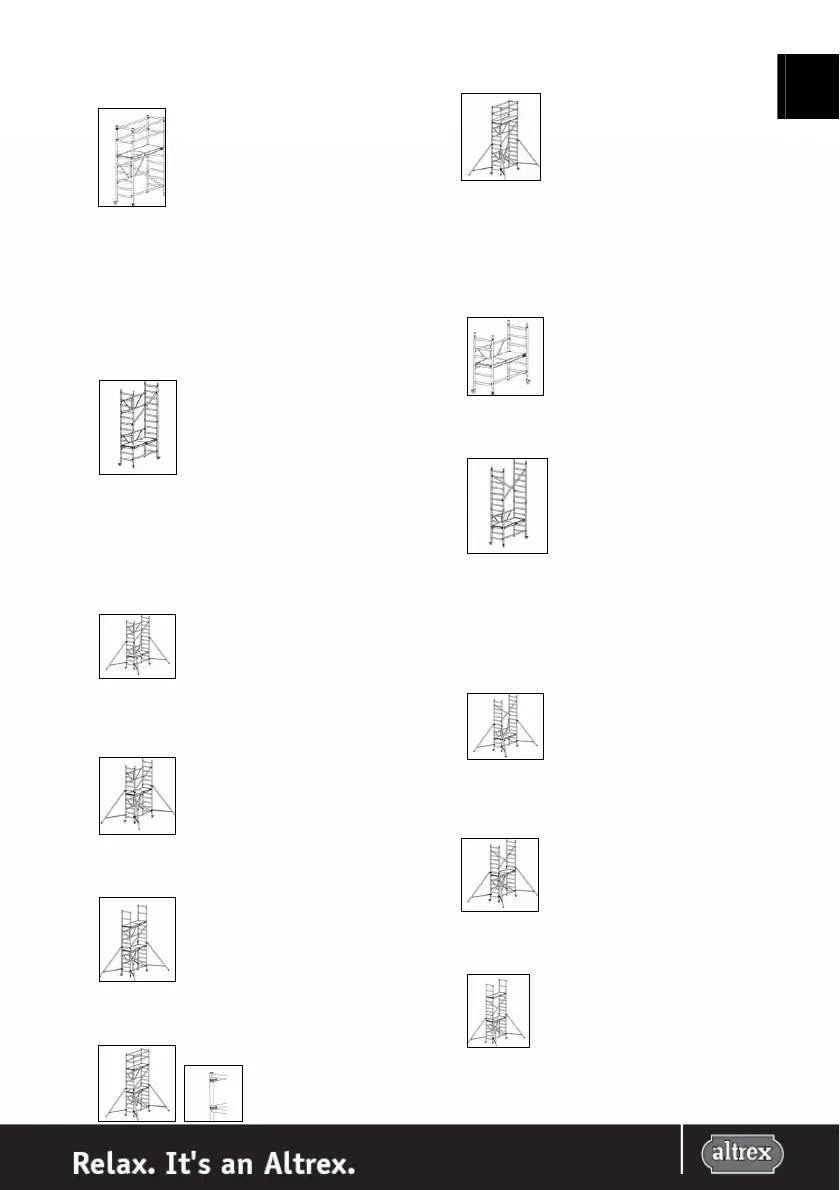

7.
Subsequently reposition the platform with trapdoor to the
6
th
rung of the base folding unit. Then place the diagonal
brace between the 1
st
and the 5
th
rung.
The tower is now ready for a platform height of 1.8 meter.
For a platform height of 3.5 meter follow steps 8 t/m 13.
8.
Assemble the 6-rung base frame as described in steps 1 to
4. Position a 6 rung folding unit on the base folding unit
and assemble a diagonal brace between the 1
st
and the
5
th
rung of the second folding frame, on the open side.
Secure the second folding frame with the locking pins
(see II.X).
9.
Then, attach 4 stabilizers to the corners of the rolling
tower, at an angle of approximately 120° to the
longitudinal axis of the rolling tower. Make sure that the
end of each stabilizer is in contact with the solid surface.
Position the lowermost arm of the stabilizer
approximately horizontally, assemble the stabilizers with
the clamp couplings on the uprights and check the angle
of 120°.
10.
Reposition the platform with trapdoor to the 6
th
rung of
the base folding unit. Subsequently place a diagonal
brace between the 1
st
and the 5
th
rung of the base folding
unit at the open side.
11.
Place two guardrail frames on the top folding unit and
secure the guardrail frames with the locking pins. Place a
platform with trapdoor on the 6
th
rung of the top frame.
12.
Sit down in the platform trapdoor and subsequently
assemble the braces working from the inside to the
outside against the uprights of the guardrail frames.
13.
Assemble the toe boards around the platform in
accordance with II.IX.
The tower is now ready to use with a platform height of
3.5 meter.
For a platform height of 3.8 meter follow steps 14 t/m 20.
14.
Assemble the 6-rung base frame as described in steps 1 to
4.
15.
Place a 7 rung frame on the base part of the tower. Place
diagonal braces on at the left and one at the right side of
the frames, between the 2
nd
and the 6
th
rung.
16.
Then, attach 4 stabilizers to the corners of the rolling
tower, at an angle of approximately 120° to the
longitudinal axis of the rolling tower. Make sure that the
end of each stabilizer is in contact with the solid surface.
Position the lowermost arm of the stabilizer
approximately horizontally, assemble the stabilizers with
the clamp couplings on the uprights and check the angle
of 120°.
17.
Reposition the platform with trapdoor to the 6
th
rung of
the base folding unit. Subsequently place a diagonal
brace between the 1
st
and the 5
th
rung of the base folding
unit at the open side.
18.
Then stand on the (auxiliary) platform and firstly attach
the guardrail frames and then a work platform with
trapdoor to the 7
th
rung of the folding unit.
FOLDING TOWER 4400-POWER
