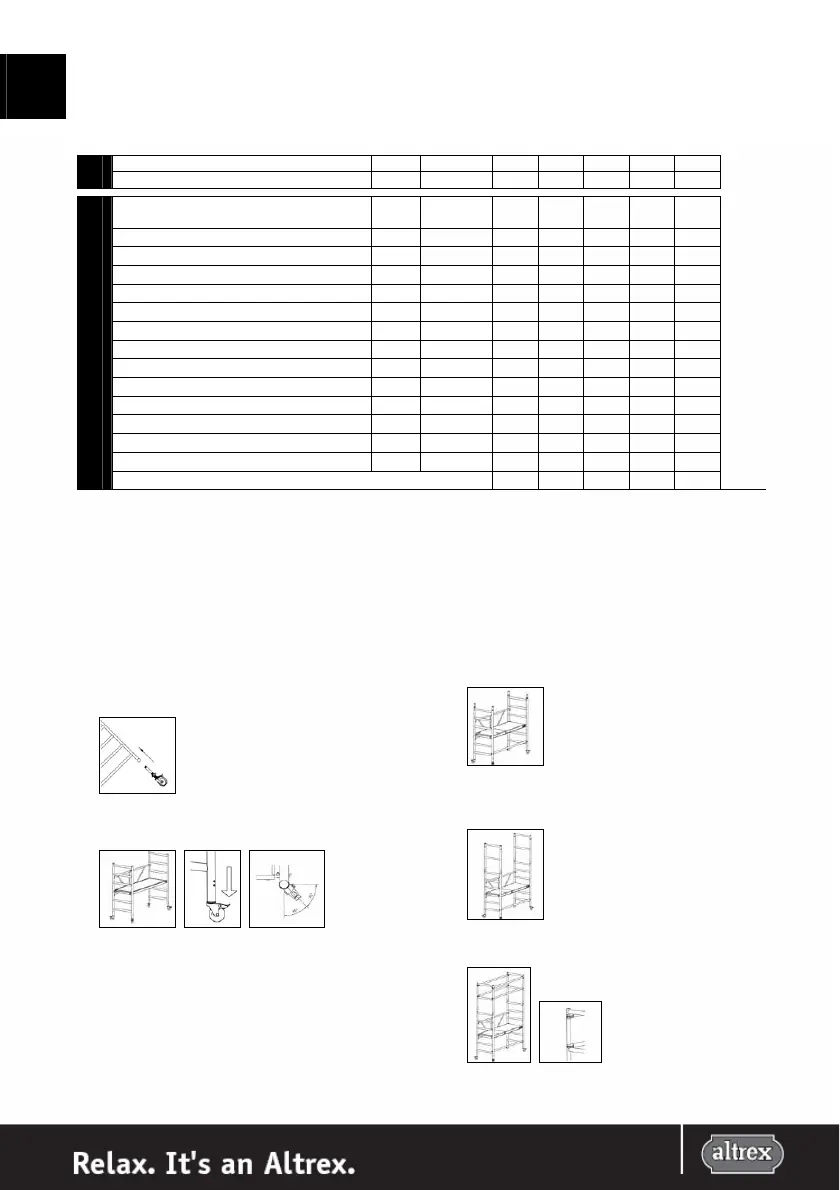

16 / 44
EN
V Folding Tower 4400-POWER
V.I Configuration table 4400-POWER
NL
Platform height (m) 1,0 1,8 3,5 3,8
1,2
5,8
1,2
Work height (m) 3,0 3,8 5,5 5,8 7,8
Description Art.no.
Weight
(kg)
Folding tower 4400-POWER complete 326001
30,0 1 0 0 0 0
Folding unit 6 rung Power 326012
13,0 0 1 2 1 1
Set of 4 collar tubes 324501
0,8 0 1 1 1 1
Frame 75-28-7 303470
6,4 0 0 0 2 4
Guardrail frame 75-50-2 303420
2,6 0 2 2 2 2
Platform 1.85m with trapdoor (wood) 305010
14,0 0 1 1 1 2
Set of wheels Ø125mm double braked (4x) 324512
5,0 0 1 1 1 1
Wheel leg + wheel Ø200mm 511220
3,3 0 0 0 0 4
Diagonal brace 185-28-21 304321
1,9 0 1 2 3 5
Horizontal brace 185-4 304304
1,8 0 5 5 5 7
Triangular stabilizer up to 4.2m platf. height* 305660
4,0 0 0 2 2 0
Triangular stabilizer Standard 4000-Series 305662
7,3 0 0 0 0 2
Toe board set 0.75 x 1.85m 305565
7,6 0 1 1 1 1
0-75 x 1.85 m
Total weight (kg) including wooden platforms 30 57 86 88 129
1)
If the tower is used as a freestanding tower in this configuration there must be 4 stabilizers around it.
2)
1 additional platform is needed for the assembly of this configuration.
*
To only be used for a platform height up to 3.8 m
EN 1004-3-5,8/5,8-XXXD
V.II Method of assembly 4400-POWER folding
tower
For a platform height of 1 meter follow step 1 to 3.
1.
Fit the wheels in the 6-rung folding unit.
2.
Fold out the 6-rung folding unit
3.
Place a platform without trapdoor on the third rung.
Align the wheels so that they point outwards, and lock the
wheels by pushing down the brake pedal.
The tower is now ready for a platform height of 1 meter.
For a platform height of 1.8 meters, follow steps 4 to 7.
First, fit the set of 4 collar tubes.
4.
Assemble the 6-rung base frame described in steps 1 to 3.
Now place a platform with trapdoor on the 3
rd
rung. On
the open side of the tower, fit 1 horizontal brace between
the uprights, above the first rung.
5.
Stand on the platform and then attach 2 guardrail frames
to the base folding unit and secure the guardrail frames
with the locking pins.
6.
Assemble 4 horizontal braces, working from the inside to
the outside, against the uprights of the guardrail frames.
