EN 1004-3-5,8/5,8-XXXD
19.

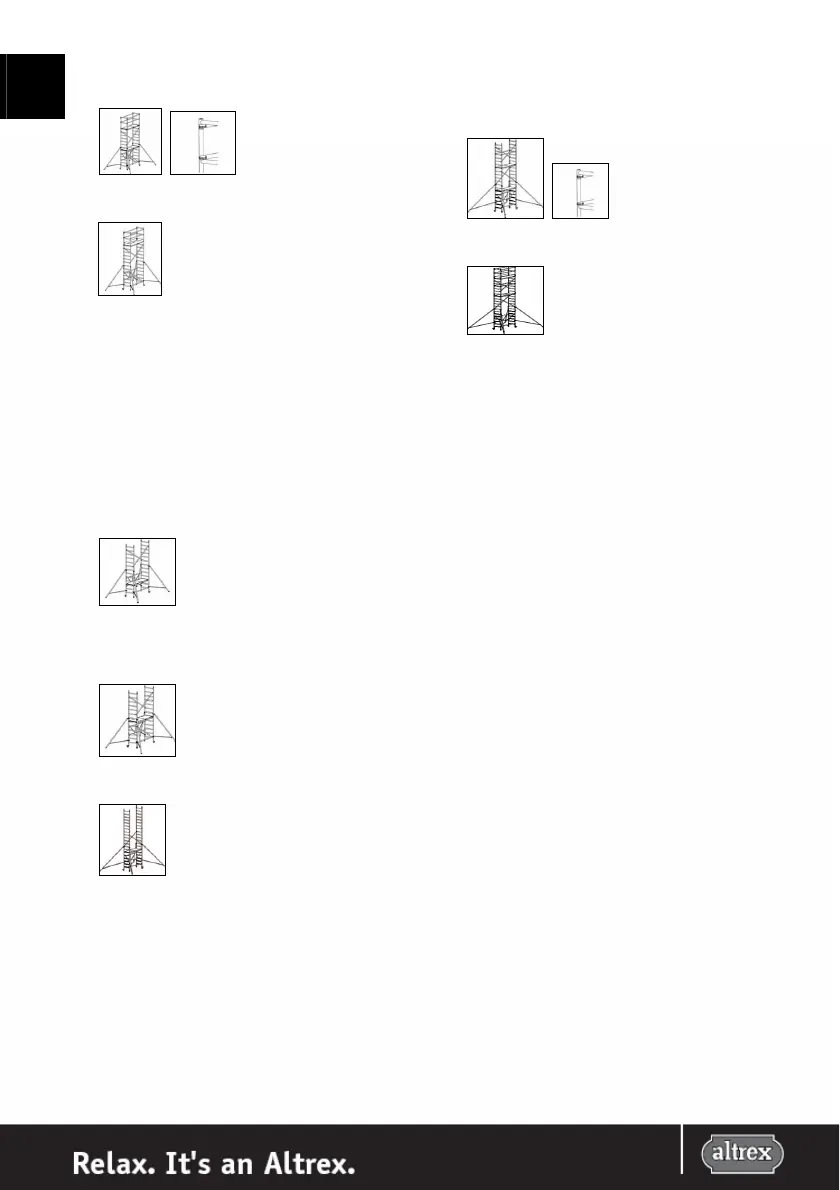

Sit down in the platform trapdoor and assemble the
braces working from the inside to the outside against the
uprights of the guardrail frames.
20.
Assemble the toe boards in accordance with II.IX. The
platform in between can then be removed.
The tower is now ready to use with a platform height of
3.8 meter.
For a platform height of 5.8 meter follow steps 21 t/m 25.
21.
Assemble the tower as described in step 15.
22.
Then, attach 4 stabilizers to the corners of the rolling
tower, at an angle of approximately 120° to the
longitudinal axis of the rolling tower. Make sure that the
end of each stabilizer is in contact with the solid surface.
Position the lowermost arm of the stabilizer
approximately horizontally, assemble the stabilizers with
the clamp couplings on the uprights and check the angle
of 120°.
23.
Reposition the platform with trapdoor to the 6
th
rung of
the base folding unit. Subsequently place a diagonal
brace between the 1
st
and the 5
th
rung of the base folding
unit at the open side.
24.
Place two 7 rung frame on the base part of the tower and
secure these.
25.
Place a platform on the 7
th
rung of the first frame, sit down
in the platform trapdoor and place horizontal braces on
both sides on the 4
th
rung above the platform.
Subsequently attach horizontal braces to each side of the
(rest) platform on the 4
th
rung above the platform. Then
place two diagonal braces (in upright position) in a cross
between the 2
nd
and the 6
th
rung on both sides of the
frames.
26.
Place the guardrail frames and subsequently a platform on
the 7
th
rung of the frame. Sit down in the platform
trapdoor and assemble the guardrail braces working
from the inside to the outside, against the uprights of the
guardrail frame.
27.
Attach the toe boards (see II.IX). Subsequently, the lower
platform can be removed.
The tower is now ready to use with a platform height of
5.8 meter.
