18 Wiring Diagrams
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
NOTES:
1) OUTDOOR THERMOSTAT (OT-1) SHOULD BE THE
FIRST TO CLOSE AND THE LAST TO OPEN.
2) JUMPER W1 AND W2 TOGETHER IF OT-2 IS NOT USED.
3) REMOVE WIRE WHEN USING OUTDOOR THERMOSTAT.
NOMENCLATURE:
OT - OUTDOOR THERMOSTAT (OPTIONAL)
EHR - EMERGENCY HEAT RELAY (OPTIONAL)
COLOR CODES
RD - RED
YL - YELLOW
BL - BLUE
BR - BROWN
OR - ORANGE
WH - WHITE

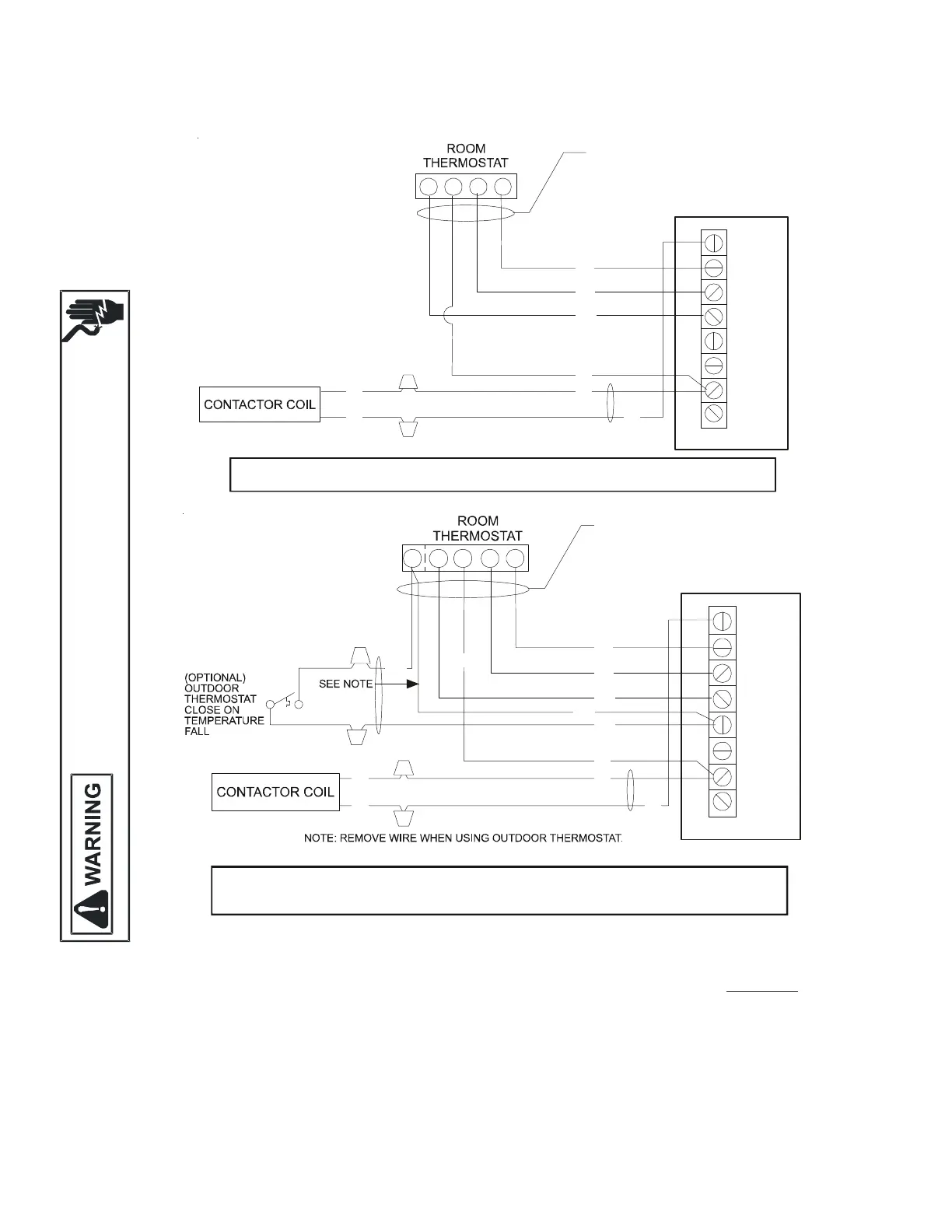

COOLING UNIT WITH OPTIONAL HEAT KITS OF 10 kW AND BELOW
G R
C
W1
YW
W2
Y2
Y1
O
G
R
TB
YL
BL
TO CONDENSING UNIT
24V CONNECTION
BL
YL
YL
WH
GR
RD
#18 GA. 4 WIRES WITH COOLING
3 WIRES WITHOUT
AIR HANDLER
Y GW
W2
R
COOLING UNIT WITH OPTIONAL HEAT KITS OF 15 kW AND ABOVE
AND ROOM THERMOSTAT WITH TWO STAGES OF HEAT
C
W1
W2
Y2
Y1
O
G
R
TB
YL
BL
CONDENSING UNIT
24V CONNECTION
BL
YL
GR
RD
#18 GA. 5 WIRES WITH COOLING
4 WIRES WITHOUT
WH
YL
BR
BR
BR
YL
AIR HANDLER
HIGH VOLTAGE!
D
ISCONNECT ALL POWER BEFORE SERVICING
OR INSTALLING THIS UNIT
M
ULTIPLE POWER SOURCES MAY BE PRESENTAILURE TO DO SO MAY
CAUSE PROPERTY DAMAGEPERSONAL INJURY OR DEATH
To Next Page
