Electronic Functional Description
Adaptive Defrost

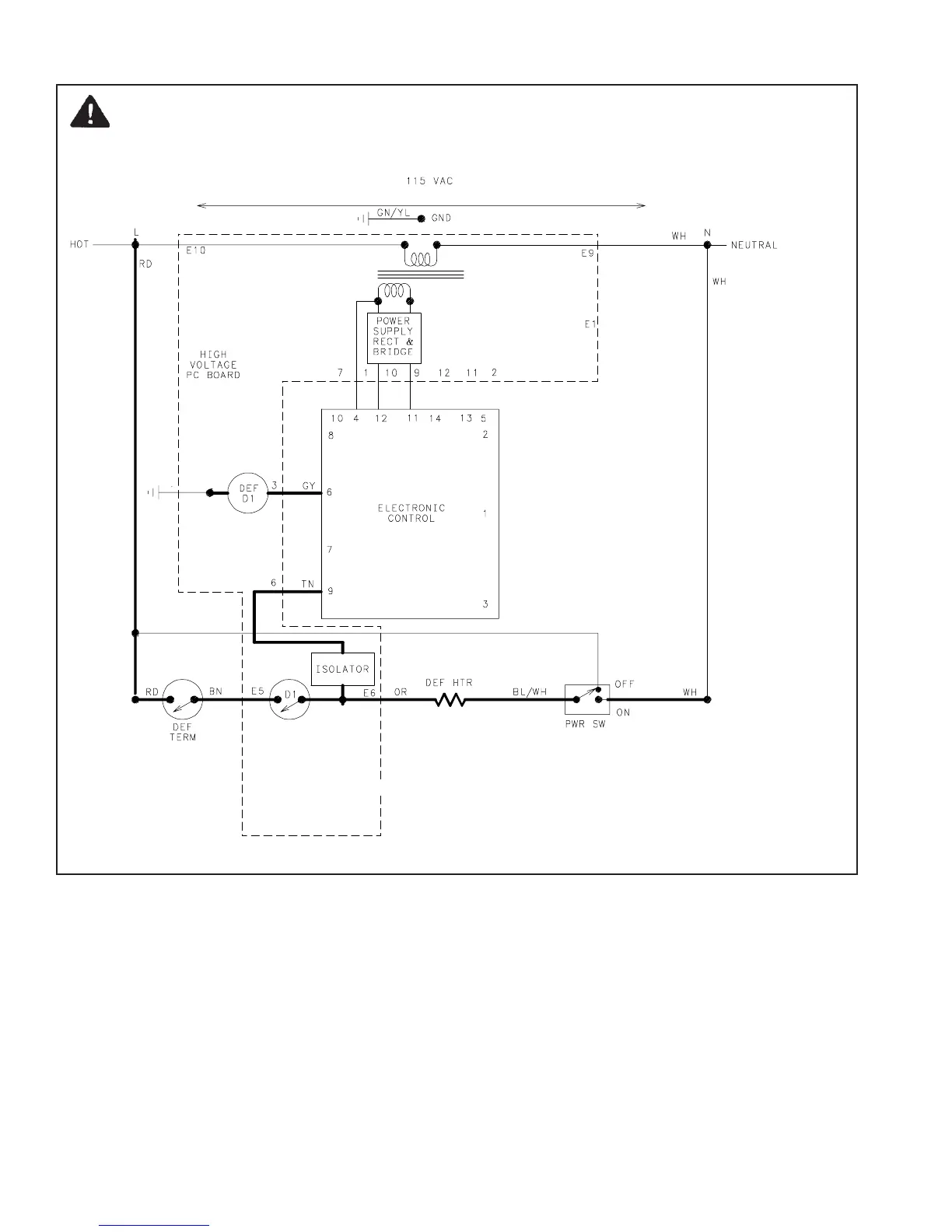

After designated compressor run time, refrigeration
cycle is interrupted and electronic control sends a low
voltage signal to defrost relay coil (def D1).
Powering the relay coil closed relay contact (D1)
completing high voltage circuit to defrost heater
through closed defrost terminator (closes at 15°F).
Isolator, which is part of high voltage PC board,
recognizes presence of line voltage to defrost heater
and sends low voltage signal to electronic control.
Electronic control keeps count of number of minutes
defrost terminator remains closed (opens at 48°F).
Length of time defrost terminator is closed determines
if the next defrost cycle advances by 4 hours of
compressor run, stays at the same interval, or delays
by 4 hours of compressor run.
If defrost terminator does not open before 29 minutes,
defrost cycle is automatically terminated by electronic
control and refrigeration cycles will resume after 6
minute dwell time.
IMPORTANT: When the power switch is
OFF
, the
isolator see’s line voltage which keeps the
electronic controller from signaling the
evaporator fan motor or the compressor relay
coils and also keeps the damper heater off.
