RS1300003 Rev. 0 68 December 1997

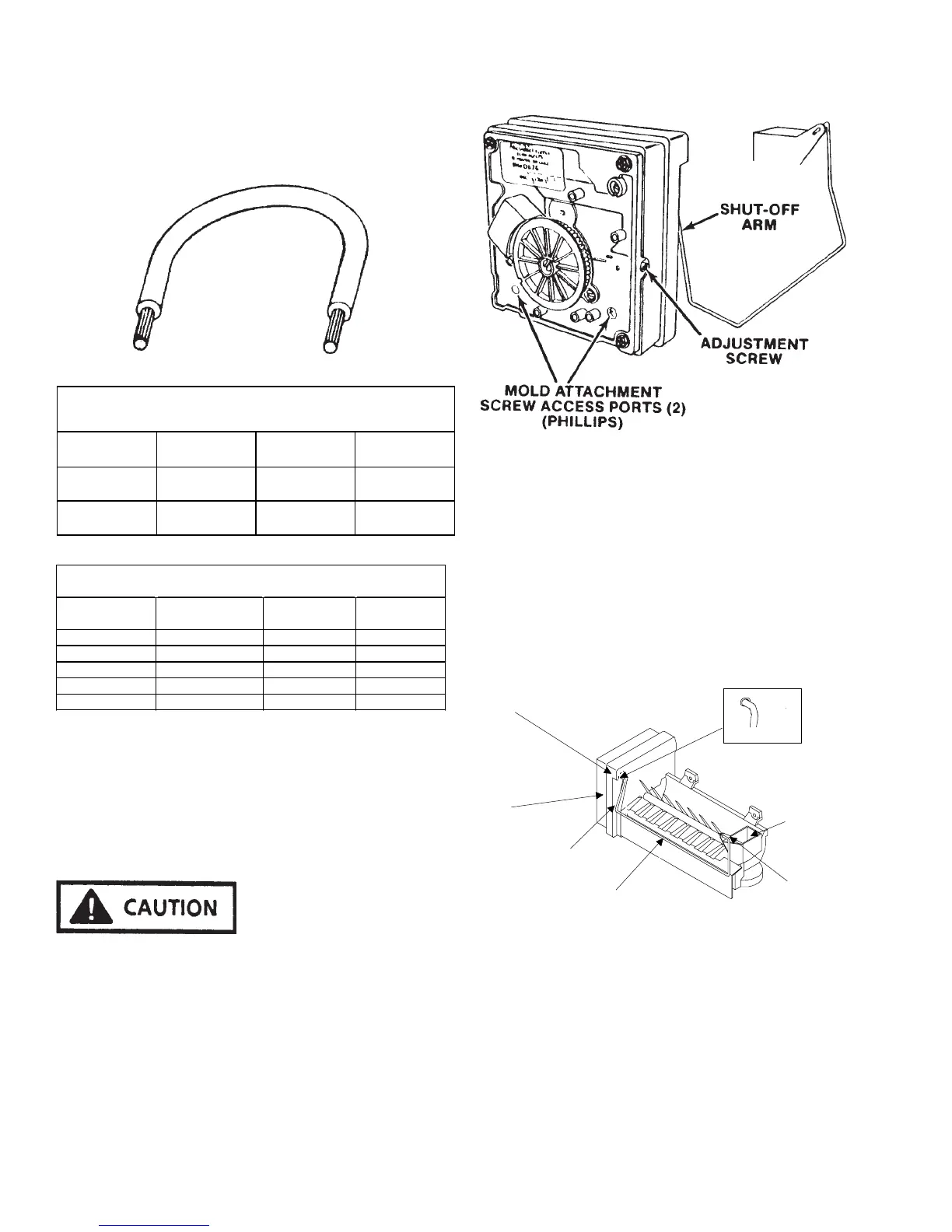

Shunt Connection
A wire shunt made from an insulated piece of 14-
gauge wire with the ends stripped back about 5/8 inch
(1.6 cm).
MODULE OHMMETER CHECKS
(NO POWER TO ICE MAKER & EJECTOR
BLADES IN END OF CYCLE POSITION)
TEST POINTS COMPONENT
MODULE
POSITION
OHMS
L - H MOLD HEATER
ATTACHED TO
SUPPORT
264
L - M MOTOR
SEPARATED
FROM HEATER
16,100
MODULE VOLTAGE CHECKS WITH METER OR TEST LIGHT
TEST POINTS COMPONENT
LINE
0 VOLTS
L - N MODULE POWER OK NO POWE R
T - H BIME T AL OPEN CLOS ED
L - H HEAT ER ON OF F
L - M MOT OR ON OFF
N - V WAT ER VALVE ON OFF
Disassembly Procedures
Cover
Pull water adjustment knob first and snap off cover.
Note knob position and reinstall in same position for
same water fill.
To avoid possible electrical shock always turn off
power before beginning any disassembly.
Module, Motor, and Support Assembly
Insert phillips driver in access ports in module.
Loosen both screws. Disconnect shut-off arm. Pull
mold from support assembly. To remove module only,
remove three phillips screws and pull module out of
housing.
Shut-Off Arm
Pull out from white bushing. Reinsert to full depth. Follow
steps 1, 2, and 3 below.
Module and Heater Assembly
Remove module and support assembly. Install on
new mold and heater assembly.
Ice Maker
Into Bushing
1. Push arm into
center slot in bushing -
bottom out.
Water adjustmet
knob location
(not on all models)
3. Arm should be
inside housing
edge.
Shut-off arm
Down position
2. Push arm
through fill
cup flange hole
past notch
Fill cup
To Next Page
