December1997 69 RS1300003 Rev. 0

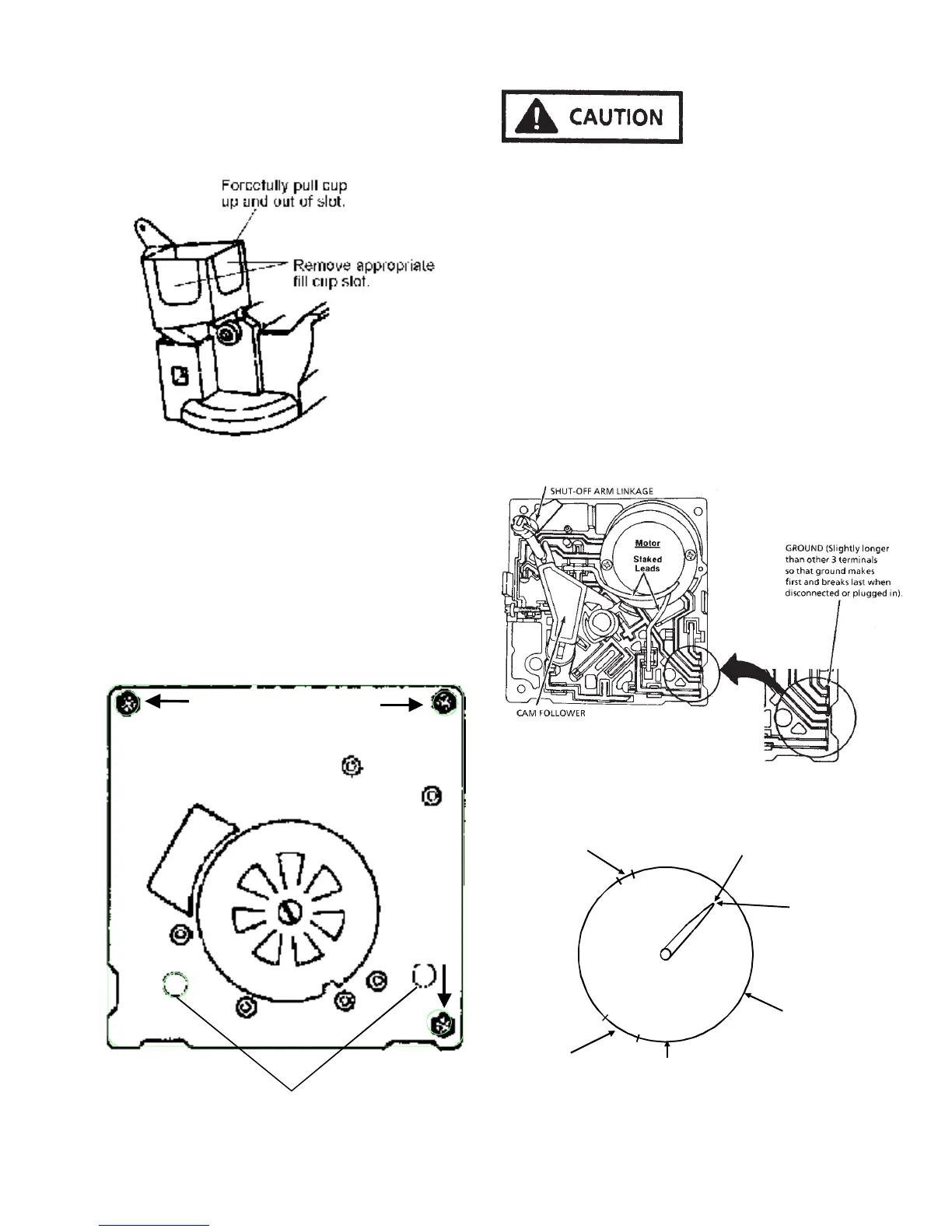

Fill Cup
Remove module and support assembly. Remove
ejector blades and shut-off arm. Pull fill cup from
mold.
Ejector Blades or Stripper
Remove module and support assembly. When rein-
stalling ejector blades, realign "D" coupling with mod-
ule cam.
Accessing Control box
To remove motor and contact assembly from control box,
take out three screws (arrows) and pull free after discon-
necting shut-off arm.
Rotating blades or drive gear will ruin main assem-
bly.
There are several switches which will jam if manually
turned counterclockwise and gears will be destroyed if
turned clockwise. To advance the ice maker into the
cycle, use a jumper to bridge
H
to
R
and unless the
motor is defective, it will run. (The shut-off arm must
be in the on position.)
NOTE: There are several slotted shafts on the motor
assembly board. Do not under any circumstances in-
sert a screwdriver and attempt to turn these shafts.
The slots are to permit assembly only.
NOTE: There are not repairable or replaceable com-
ponents in the module. Unless you are replacing the
module, there should be no need to remove it when
diagnosing or repairing the ice maker.
Water valve
energized
7.5 seconds
140cc fill
about 11:00
o'clock
Ejector blade stop position
(about 1:30 o'clock
Start position:
thermostat closes,
motor on,
heater on
Ejector stall on ice,
Motor on (30 seconds
to 5 minutes) about
4:00 o'clock
6:00 o'clock
position
Thermostat
opens in this
range of
rotation then
heater is off
Ice Maker
Mold and Heater Screw Access Ports
