December 1997 53 RS1300003 Rev. 0

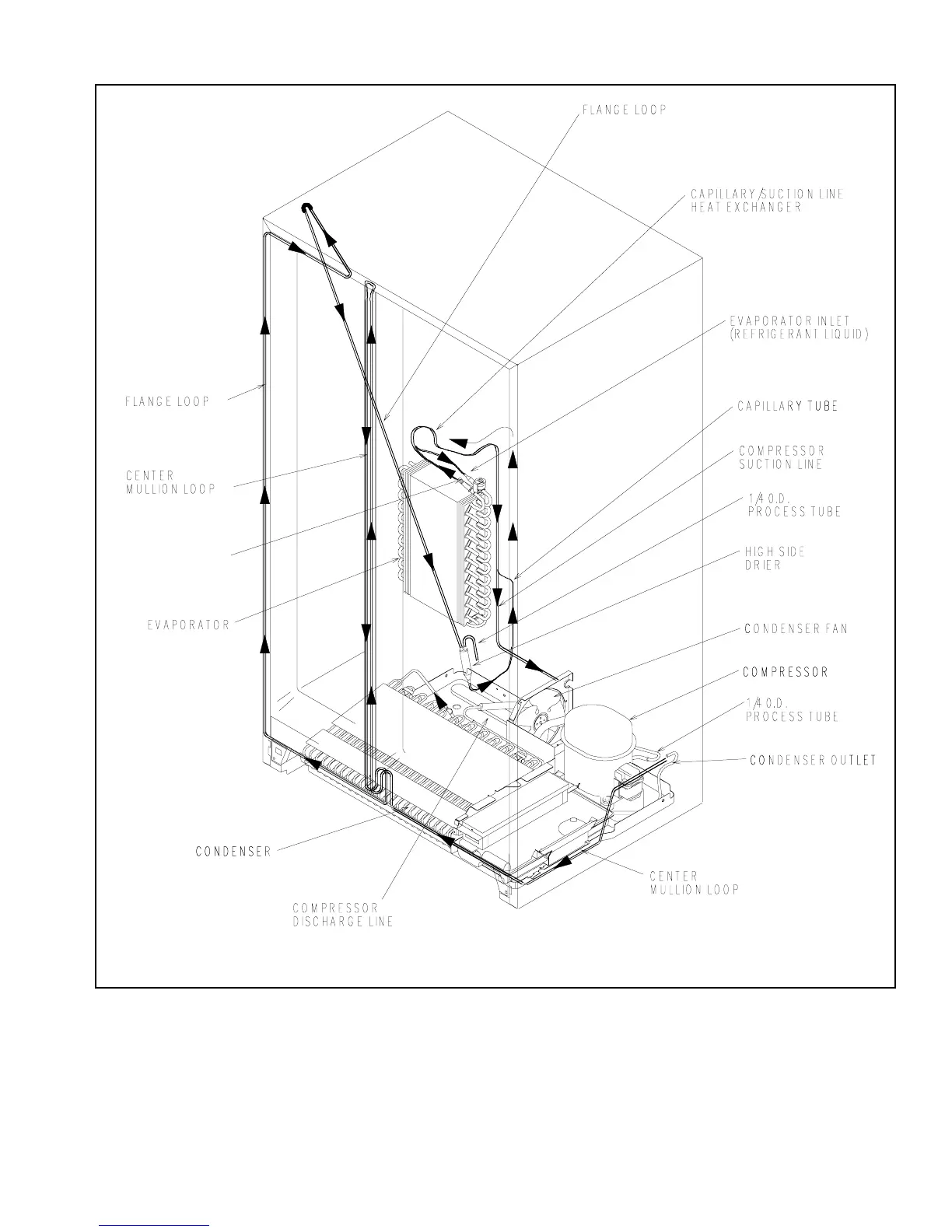

Refrigerant Flow
EVAPORATOR OUTLET
(VAPOR)
“S” Model Side x Side
Refrigerant Flow Diagram
20 Cubic Foot Only
