December 1997 85 RS1300003 Rev. 0
Kit Instructions
Procedure
Extruded Handle Models
Caution
To avoid personal injury, protect hands and arms. Trim
pieces may have sharp edges.
Important: Save all screws and reuse in original
location.

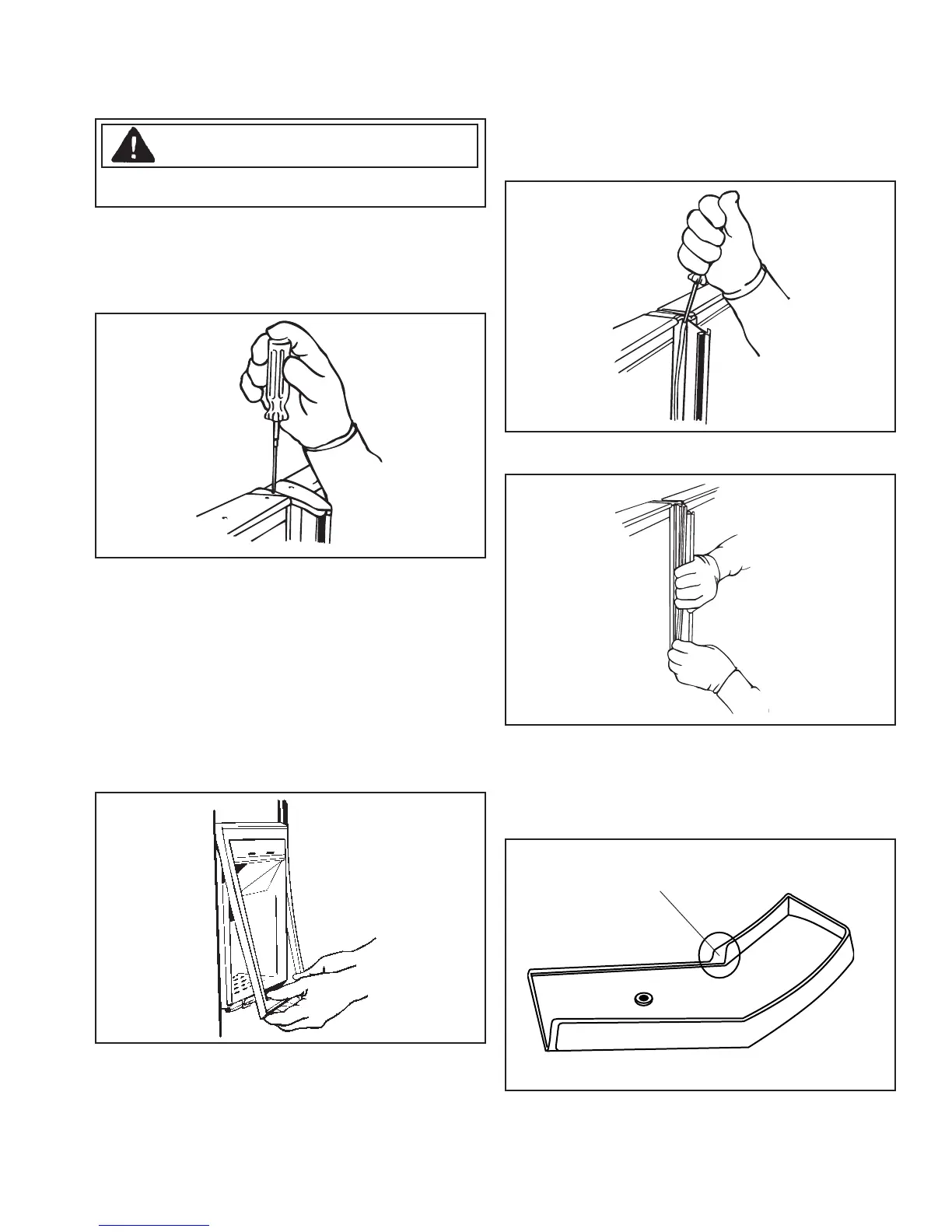

1. Remove top handle end caps by removing screws.
Important: If installing 1/16 inch (2 millimeter) panels,
proceed to step 6. If installing 1/4 inch (6
4. Pull inserts out along length of handles.
5. Install new handle inserts by reversing steps 3-4.
6. Replace dispenser cover by snapping in place.
millimeter) panels, proceed with step 2.
2. Remove crushed/cubed ice switch cover on
dispenser by pulling forward. Remove screws from
bottom of dispenser cover. Release bottom clips on
dispenser cover by placing taped edge of putty knife
underneath cover and pulling out. Release top clips
by holding bottom of dispenser cover out and sliding
up.
3. Remove door handle inserts by placing screwdriver
at top of door handles in area between handle and
insert and pulling out.
Insert and tighten screws. Replace switch by
snapping in place.
7. Remove thin section on top handle end caps to
allow room for panels. Discard section. Replace
top handle end caps by placing end caps on
handles. Insert and tighten screws.
Thin Section
