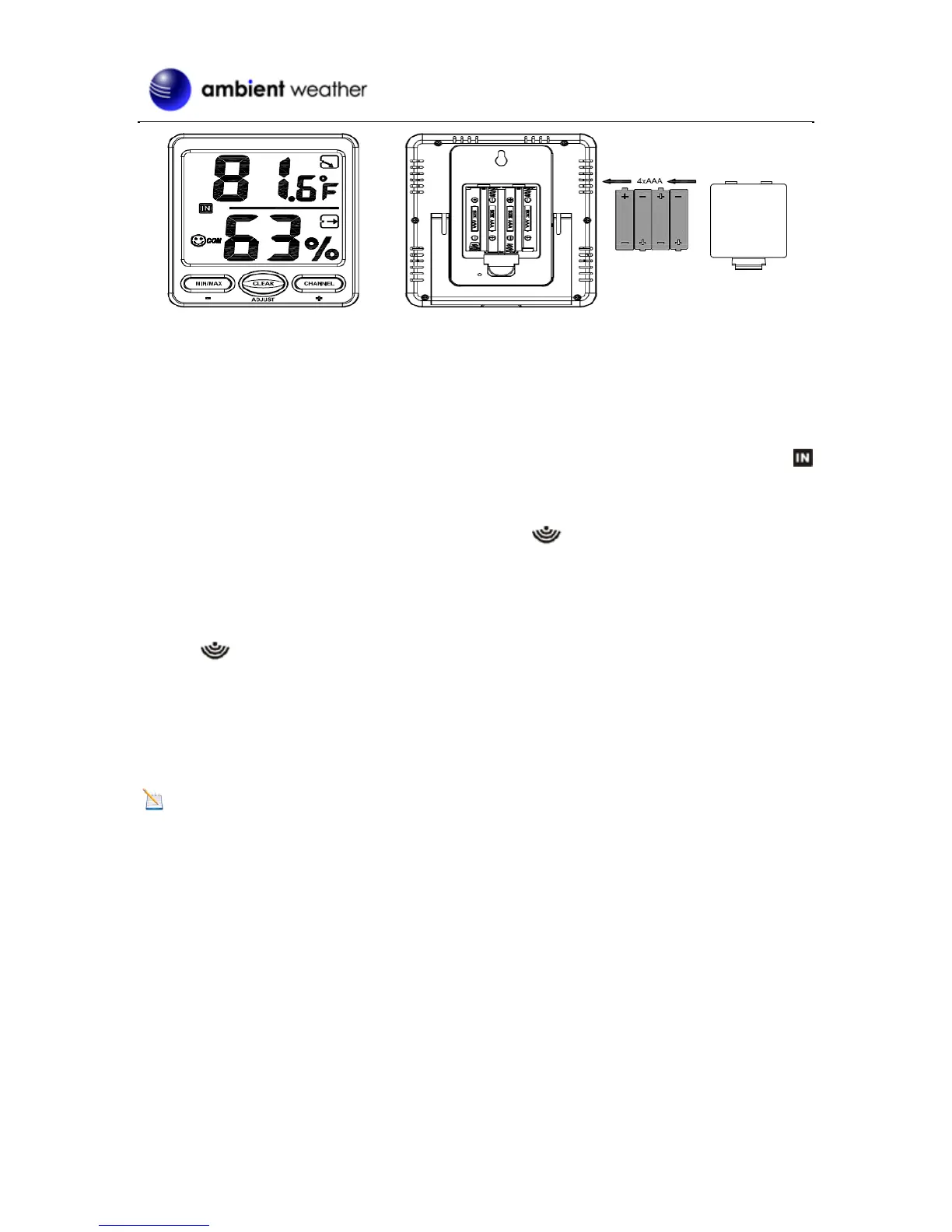

Figure 4
All of the LCD segments will light up for a few seconds to verify all segments are operating properly.
3. Replace the battery door, and fold out the desk stand and place the console in the upright
position.
The console will instantly display indoor temperature and humidity as designated by the
icon. The remote temperature and humidity will update on the display within a few minutes
on the appropriate channel.
While in the search mode, the remote search icon will be constantly displayed.
If you have more than once remote sensor (up to eight remotes are supported), the display
will automatically toggle between sensors until all sensors have reported in.
Do not touch any buttons until the remote sensor has reported in, or the radio search icon
is no longer on, otherwise the remote sensor search mode will be terminated. When the
remote sensor temperature and humidity has been received, the console will automatically
switch to the normal mode, and all further settings can be performed.
If the remote does not update, please reference the troubleshooting guide in Section 8.
2.3.1 Display Console Layout
Note: The following illustration shows the full segments of the LCD for description purposes
only and will not appear like this during normal operation.
