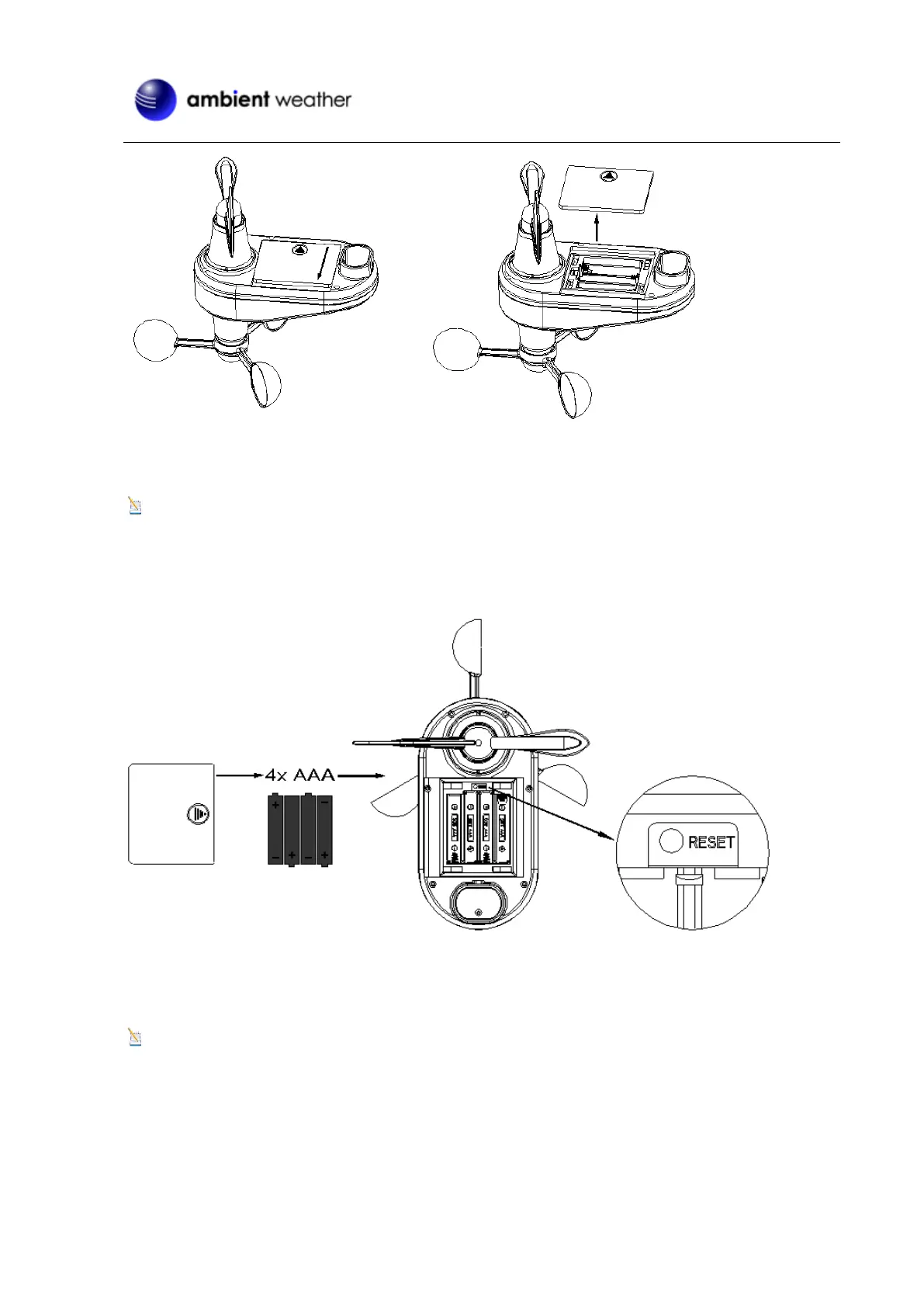

Figure 12
Insert four batteries into the battery compartment, then press the reset button, as shown in Figure 12.
Note: Use high quality alkaline batteries, which have an operational temperature range of -4 to 140 °F.
Use Energizer e2 Lithium batteries for low temperature installation, which have an operational temperature
range of -40 to 140 °F. Do not use rechargeable batteries. They have a lower operating voltage and discharge
faster than non-rechargeable batteries and will result in short transmission ranges.
Figure 13
6.1.2 Anemometer Installation
Note: Do not install the anemometer until it is paired and operationally confirmed with the display
module.
Prior to installation, you will need to calibrate the wind direction. There is a “S” indicator on the wind vane
that indicates South, as shown in Figure 13. Align this “S” marker in the direction of South.
