Ambient Weather WS-290D User Manual

Version 1.29 ©Copyright 2022, Ambient LLC. All Rights Reserved. Page 9

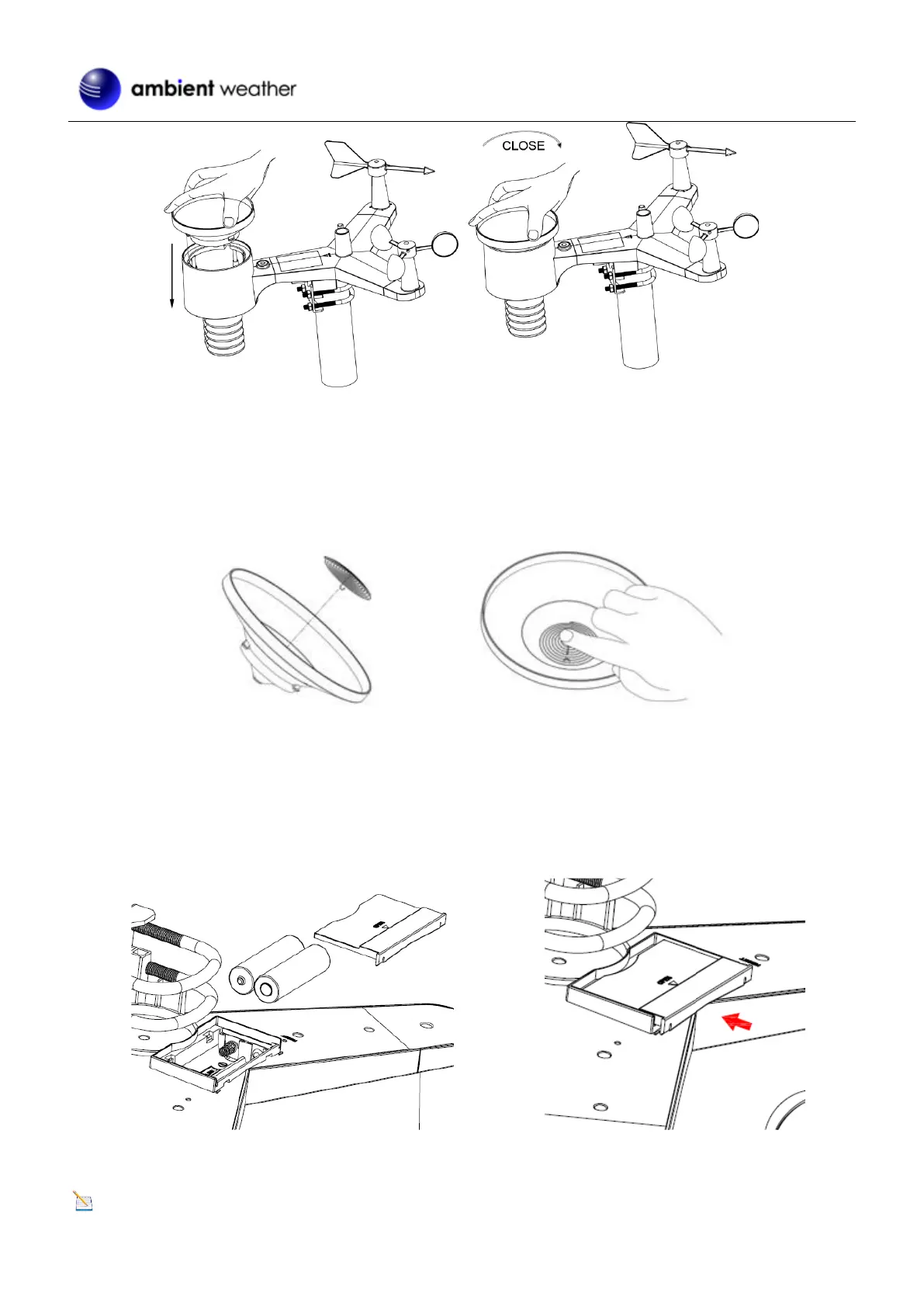

Figure 4
4.7 Funnel Coil Filter Installation
To install the Funnel Coil Filter, press the coil until the hook is inside the hole at the bottom of the funnel and locked in
place. The spring tension will keep the filter sitting tightly on the funnel.
Figure 5
4.8 Battery Installation
Reference Figure . Insert (2) AA non-rechargeable batteries (not included) into the battery compartment. The LED
indicator on the back of the transmitter will turn on for four seconds and then flash once every 16 seconds (the sensor
transmission update period).
(a)
(b)
Figure 6
Note: If the LED does not light up or stays on permanently, make sure the battery polarity is correct and that the

Ambient Weather WS-290D Specifications

General

Brand	Ambient Weather
Model	WS-290D
Category	Weather Station
Language	English
