Amco Veba 804 - Page 160

D-36

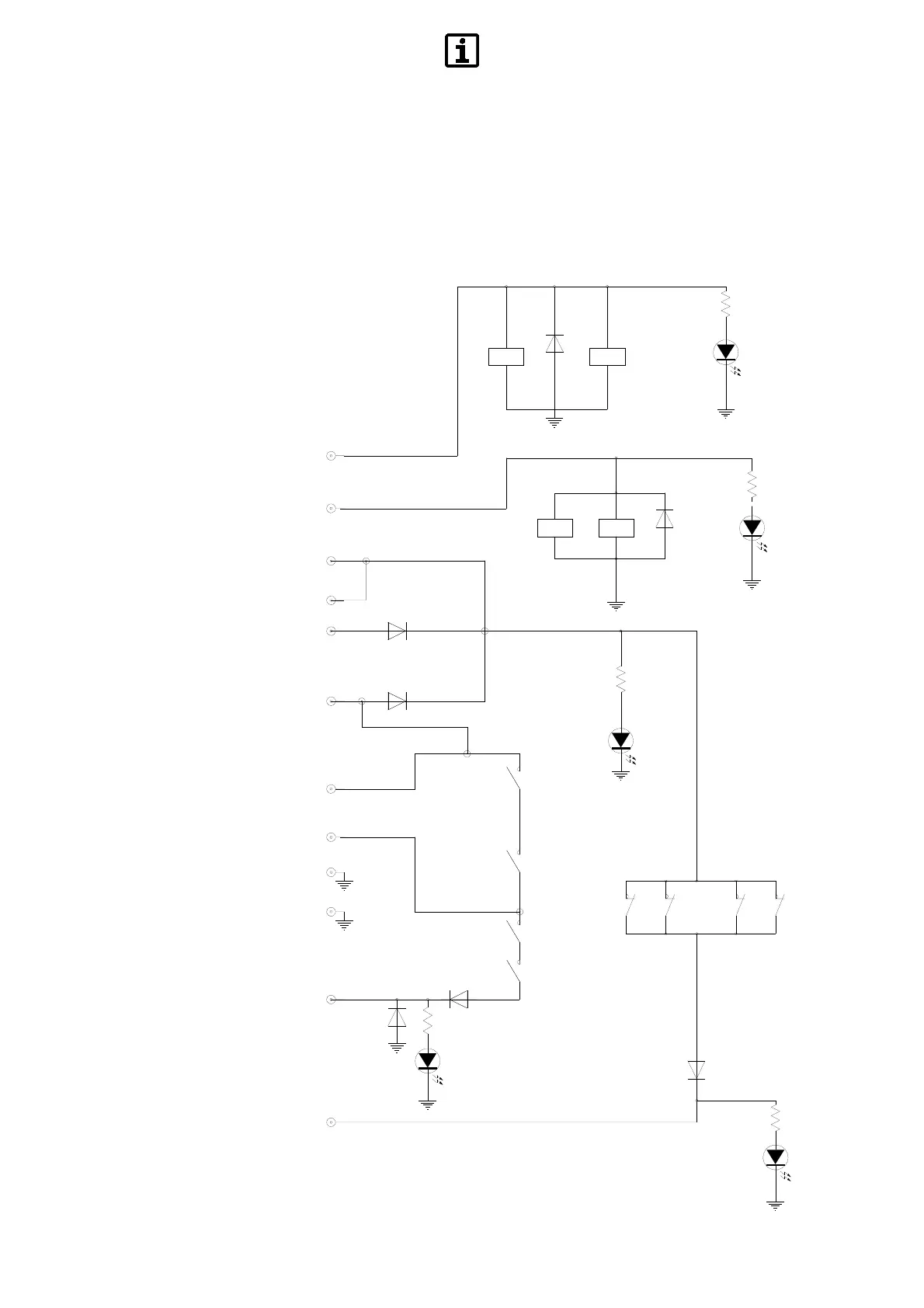

SCHEMA ELETTRICO
LIMITATRE DI MOMENTO RRS
904 (Option)
905 (Standard)
[3.31.0879]
ELECTRIC DIAGRAM
RRS LOAD LIMITING DEVICE
904 (Option)
905 (Standard)
[3.31.0879]
904 - 905
STROMKREISSCHEMA
MOMENTBEGRENZER RRS
904 (Optional)
905 (Standard)
[3.31.0879]
CHI RADIO IN, B6
CH1 MANUAL IN
D1 1N 5404
D2 1N 5404
B1 RADIO OUT
D3 1N 5404
K2
K0
K1
D4 1N 4007
R1 2K2
5%
DL1
RLC PIN 4
+ RLC, EDS
GND
F.C.
EXTENSION RESET
RLC PIN 3
RADIO B9
D6
K2
B8 IN LIMIT. SP2 100%
K0K1
D5 1N 4007
K3
R4 2K2
DL4
R5 2K2
DL5
DL2 (EV.)
R2 2K2
R3 2K2
DL3
K0 K1 K2 K3
D7 1N5404
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
PIN 9
PIN 10
PIN 11
PIN12
L2 100%
LED
k3
1N4007
(green)
(grün)
(verde)
(green)
(grün)
(verde)
(green)
(grün)
(verde)
(red)
(rot)
(rosso)
(yellow)
(gelb)
(giallo)
