DIMM Module Installation

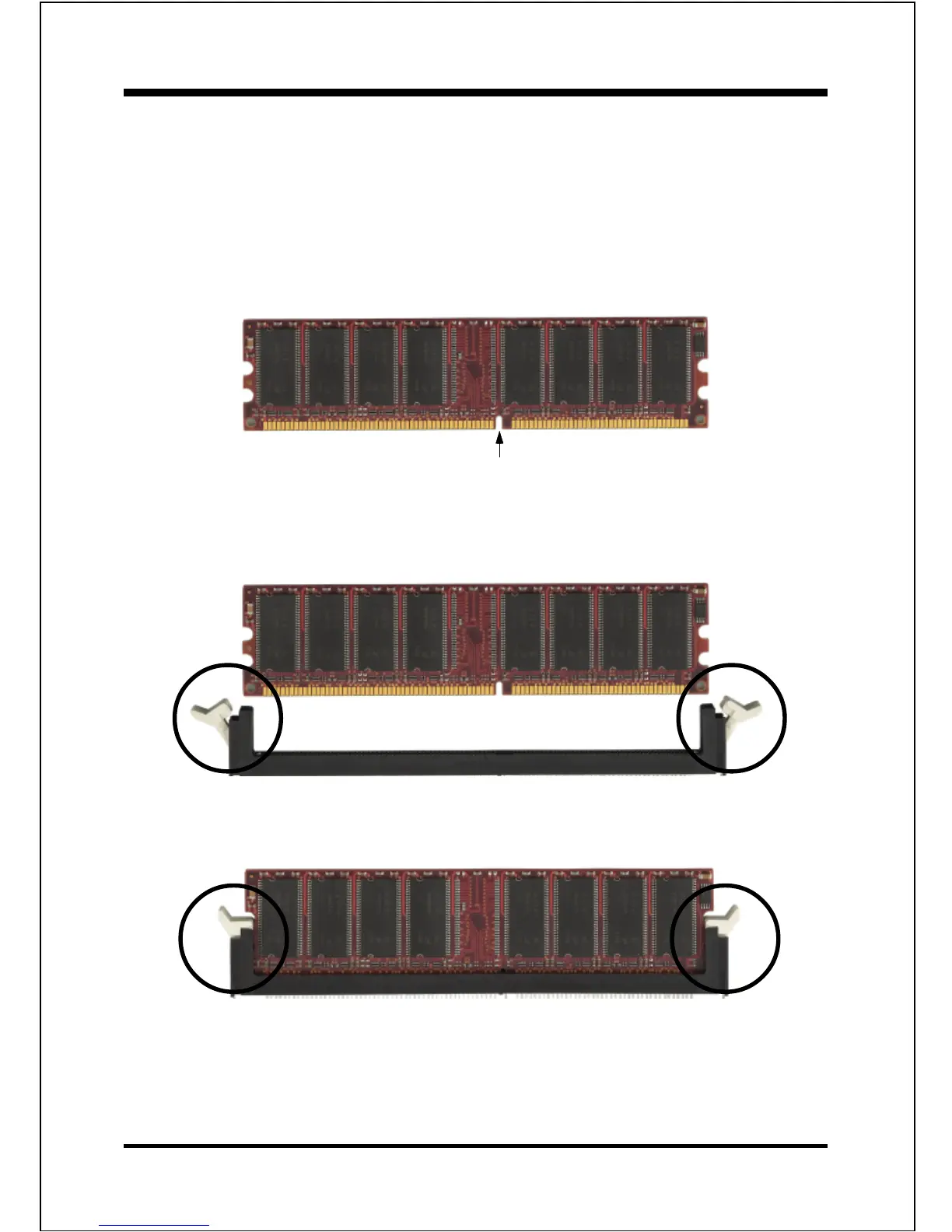

Figure 7 displays the notch on the DDR DIMM memory module.
DIMMs have 184 pins and one notch that matches with the DDR DIMM socket.
DIMM modules are installed by placing the chip firmly into the socket and
pressing straight down as shown in figure 8 until the white clips close and the
module fits tightly into the DIMM socket (figure 9).
Figure 7 - DIMM notch
Figure 9 - DIMM module clip after installation
To remove the DIMM module press down the white clips and the module is
released from the socket.
Figure 8 - DIMM module clips before installation
CENTER KEY ZONE
(2.5 V DRAM)

AMD Athlon Specifications

General

Microarchitecture	K7
Architecture	x86
Manufacturer	AMD
Core Count	1
Thread Count	1
Socket	Socket A
Manufacturing Process	180 nm
L1 Cache	128 KB (64 KB Instruction + 64 KB Data)
L2 Cache	64 KB to 512 KB
Clock Rate	500 MHz
FSB	100 MHz
