AMD Athlon User Manual

Installation
Page 3-10

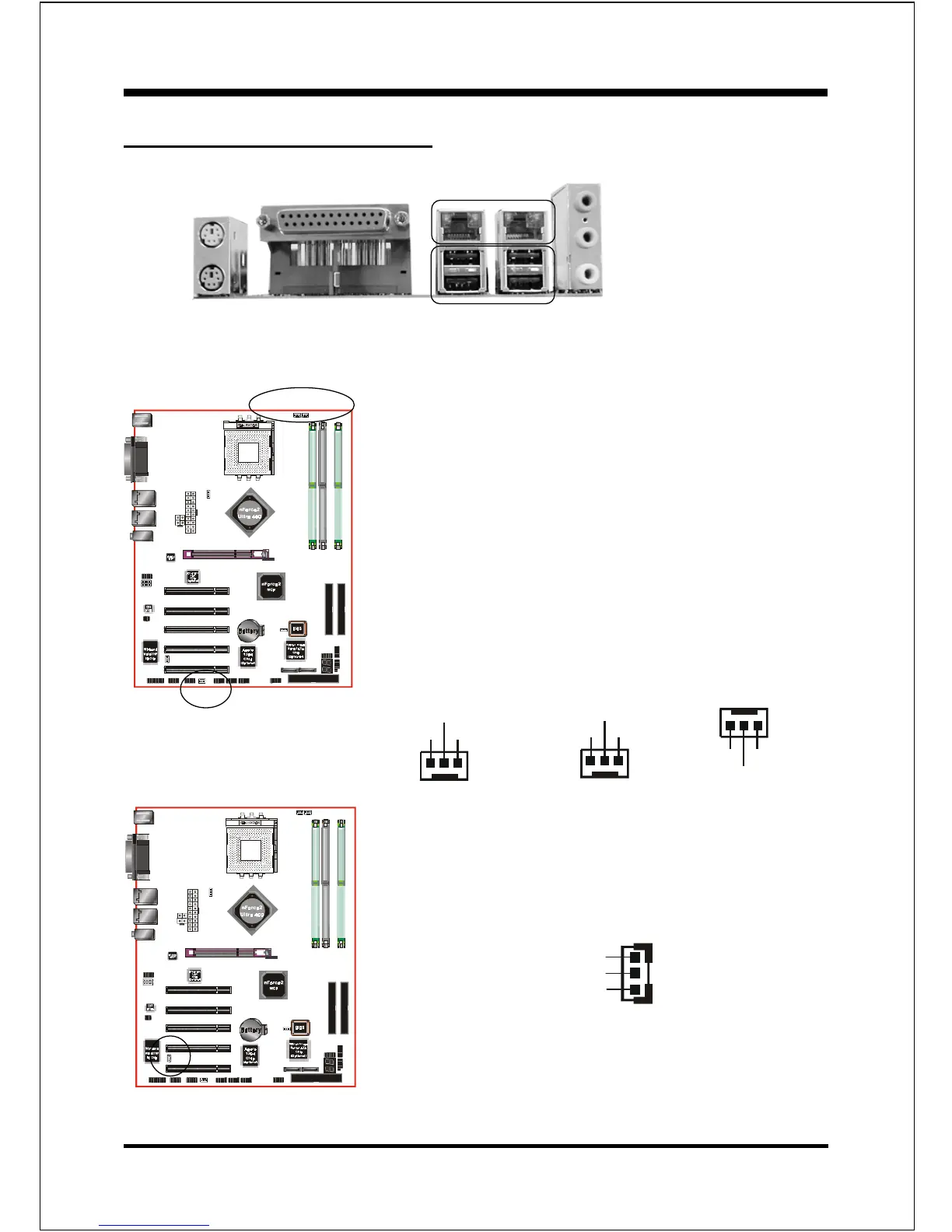

3-5 Device Connectors
GND
PME
+5V Standby
JCPU_FAN / JPWR_FAN / JSYS_FAN:
CPU/Power/Chassis Fan Power Connectors
JCPU_FAN: The CPU must be kept cool by using a
fan with heatsink.
JPWR_FAN: If you are installing an additional fan in
the unit, connect the fans connector.
JSYS_FAN: The chassis fan will provide adequate
airflow throughout the chassis to prevent overheat-
ing the CPU.
WOL1:WOL (Wake On LAN) Connector
Reserved for an NIC (Network Inter-
face Card) to wake the system from
power saving mode.
Figure 10 - I/O Ports
JPWR_FAN
USB2.0 ports
Parallel Port
PS/2
Mouse
PS/2
Keyboard
RJ45 LAN
(Optional)
Mic-in/Center&Subwoofer (Pink)
Line-out/Front out (Green)
Line-in/Rear out (Blue)
Ground
+12V
Senc e
JCPU_FA N
Ground
+12V
NC
JPWR_FAN
Ground
+12V
Senc e
JSYS_FAN
JCPU_FAN
JSYS_FAN

AMD Athlon Specifications

General

Microarchitecture	K7
Architecture	x86
Manufacturer	AMD
Core Count	1
Thread Count	1
Socket	Socket A
Manufacturing Process	180 nm
L1 Cache	128 KB (64 KB Instruction + 64 KB Data)
L2 Cache	64 KB to 512 KB
Clock Rate	500 MHz
FSB	100 MHz
