AMD MB500 User Manual

INSTALLATIONS
Installing the Memory
The MB500 embedded board supports one DDR memory sockets for a
maximum total memory of 1GB in DDR memory type. The memory
module capacities supported are 128MB, 256MB, 512MB and 1GB.
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the embedded
board and perform the following steps:
1. Hold the DDR module so that the key of the DDR module aligns with
those on the memory slot.
2. Gently push the DDR module in an upright position until the clips of
the slot close to hold the DDR module in place when the DDR module
touches the bottom of the slot.
3. To remove the DDR module, press the clips with both hands.

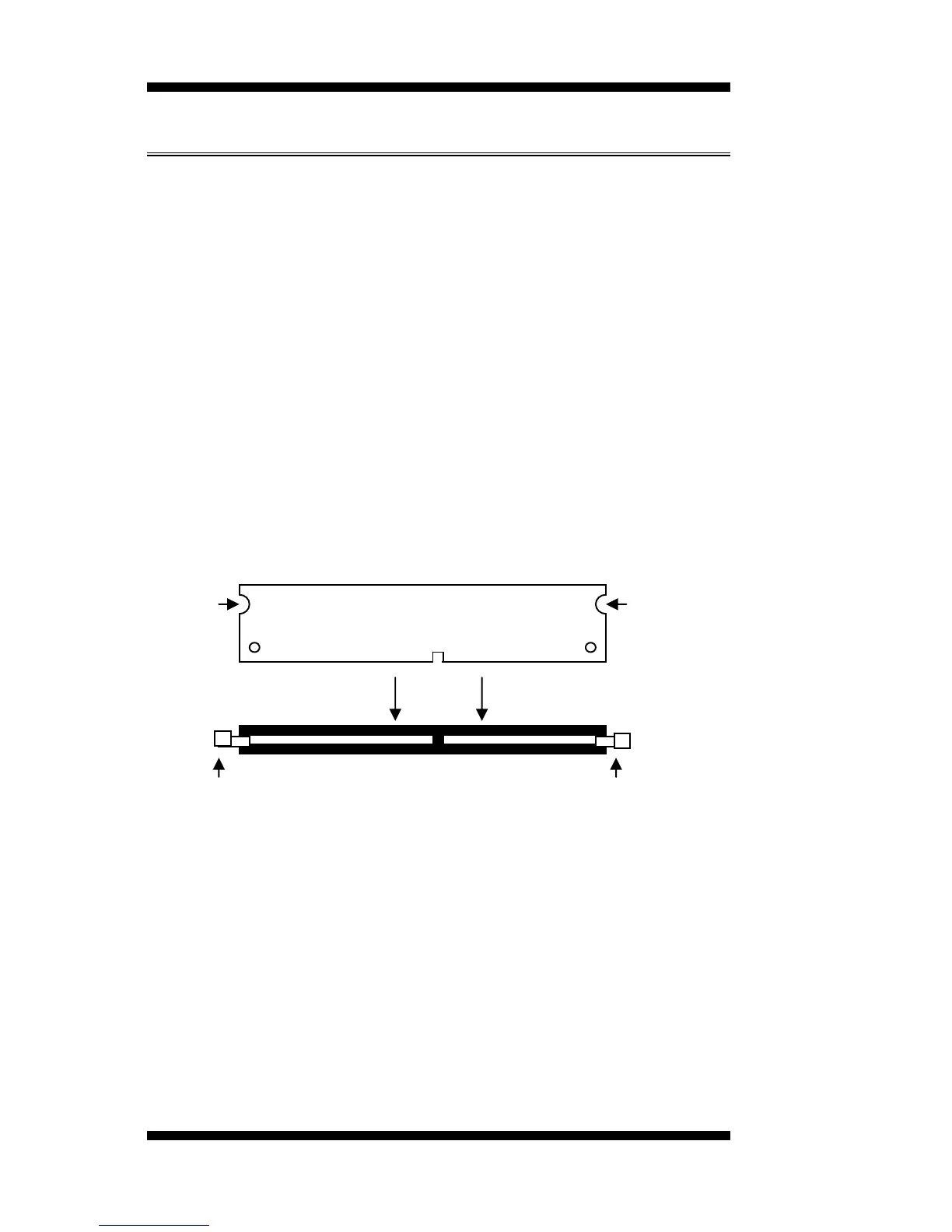

DDR Module
LockLock
Lock
Lock
6 MB500 User’s Manual
