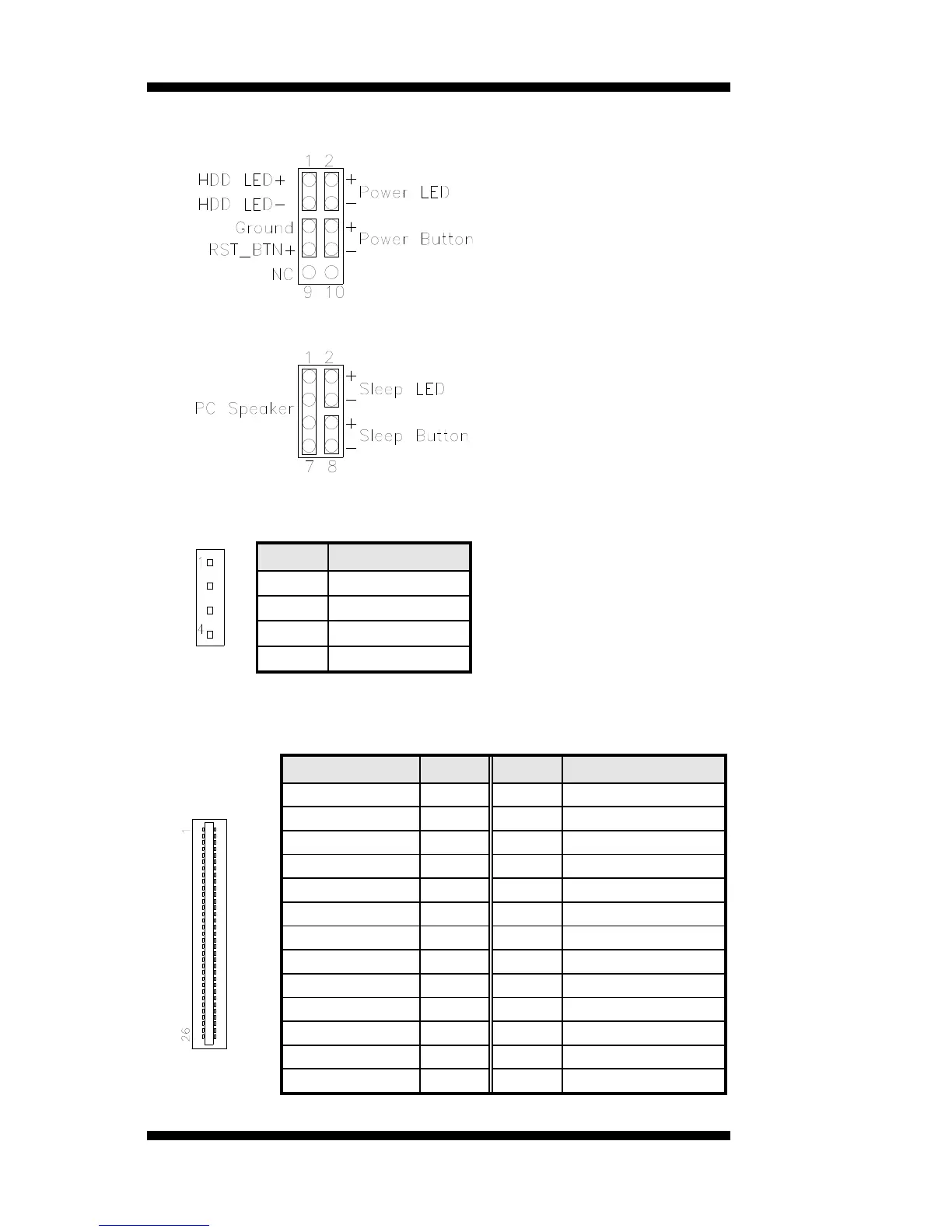

INSTALLATIONS
J16: Front I/O Connector
J17: Function Connector
J18: CD-In Audio Connector
Pin #
Signal Name
1
CD Audio R
2 Ground
3 Ground
4
CD Audio L
FDD1: Floppy Driv
e Connector
FDD1is a slim 26-pin connector and will support up to 2.88MB FDD.
Signal Name
Pin #
Pin #
Signal Name
VCC 1
2
INDEX
VCC 3
4
DRV_SEL
VCC 5
6
DSK_CH
NC 7
8
NC
NC 9
10
MOTOR
DINST 11
12
DIR
NC 13
14
STEP
GND 15
16
W
DATA
GND 17
18
WGATE
GND 19
20
TRACK
NC 21
22
WPROT
GND 23
24
RDATA
GND 25
26
SIDE
20
MB500 User’s Manual
23
25
Table of Contents
Table of Contents
3
Introduction
5
MB500 Product Features
5
Checklist
6
Specifications
7
Board Dimensions
8
Installations
9
Installing the Memory
10
Installations Setting the Jumpers
11
Setting the Jumpers
11
Jumper Locations on MB500
12
JP2: Voltage Setting for LVDS
13
JP3, JP4, JP5: RS232/422/485 (COM2) Selection
13
JP6: Clear CMOS Contents
13
JP7: Case Open Setting
14
JP8: Compactflash Master/Slave Selection
14
JP9: ATX/AT Mode Select
14
Installations Connectors on Mb500
15
Connectors on MB500
15
Connector Locations on MB500
16
CN1: DC Jack (DC In, 12V Only)
17
CN2: PS/2 Keyboard and Mouse Connectors
17
CN3: COM1 Serial Port
17
CN4: Parallel Port Connector
18
CN5: VGA CRT Connector
18
CN6: 10/100 RJ45 Connector (for MB500F Only)
19
CN7: 10/100 RJ45 and USB Connectors
19
CN8: Line Out, Line In, MIC Connector
19
CN9: Compact Flash Socket
19
DDR1: 184-Pin DDR DIMM Socket
19
PCI1: PCI Slot
19
J2: ATX Power Supply Connector
20
J3: LVDS Connector
20
J4: LCD Inverter Connector
21
J5: LCD (TTL) Connector
21
J6, J7, J8: COM2, COM3, COM4 Serial Ports
22
J9: Irda Connector
22
J10: Digital 4-In 4-Out I/O Connector
23
J11: Mini PCI Socket
23
J12: for Right Speaker
23
J13: Wake on LAN Connector
23
J14: for Left Speaker
23
J15: USB Connector (USB2/USB3)
23
FDD1: Floppy Drive Connector
24
J16: Front I/O Connector
24
J17: Function Connector
24
J18: CD-In Audio Connector
24
FAN1, FAN2: Fan Power Connectors
25
IDE1: Primary IDE Connector
25
Watchdog Timer Configuration
26
BIOS Setup
29
Default Chapter
30
BIOS Introduction
30
BIOS Setup
30
Standard CMOS Setup
32
Advanced BIOS Features
35
Virus Warning
35
Cpu Internal Cache
35
Boot Other Device
35
Advanced Chipset Features
38
Cpu Frequency
38
Memory Frequency
38
Cas Latency Time
38
Integrated Peripherals
39
Onchip Ide Channel 1
39
Power Management Setup
41
Modem Use Irq
41
Pnp os Installed
42
Init Display First
42
Reset Configuration Data
42
Resources Controlled by
42
PNP/PCI Configurations
42
PC Health Status
43
Cpu Warning Temperature
43
Exit Without Saving
44
Load Fail-Safe Defaults
44
Load Optimized Defaults
44
Save & Exit Setup
44
Set Password
44
Drivers Installation
45
Entertainment Encryption/Decryption Controller Driver
46
VGA Drivers Installation
48
Audio Driver Installation
51
Appendix
55
I/O Port Address Map
55
Interrupt Request Lines (IRQ)
56
