INSTALLATIONS

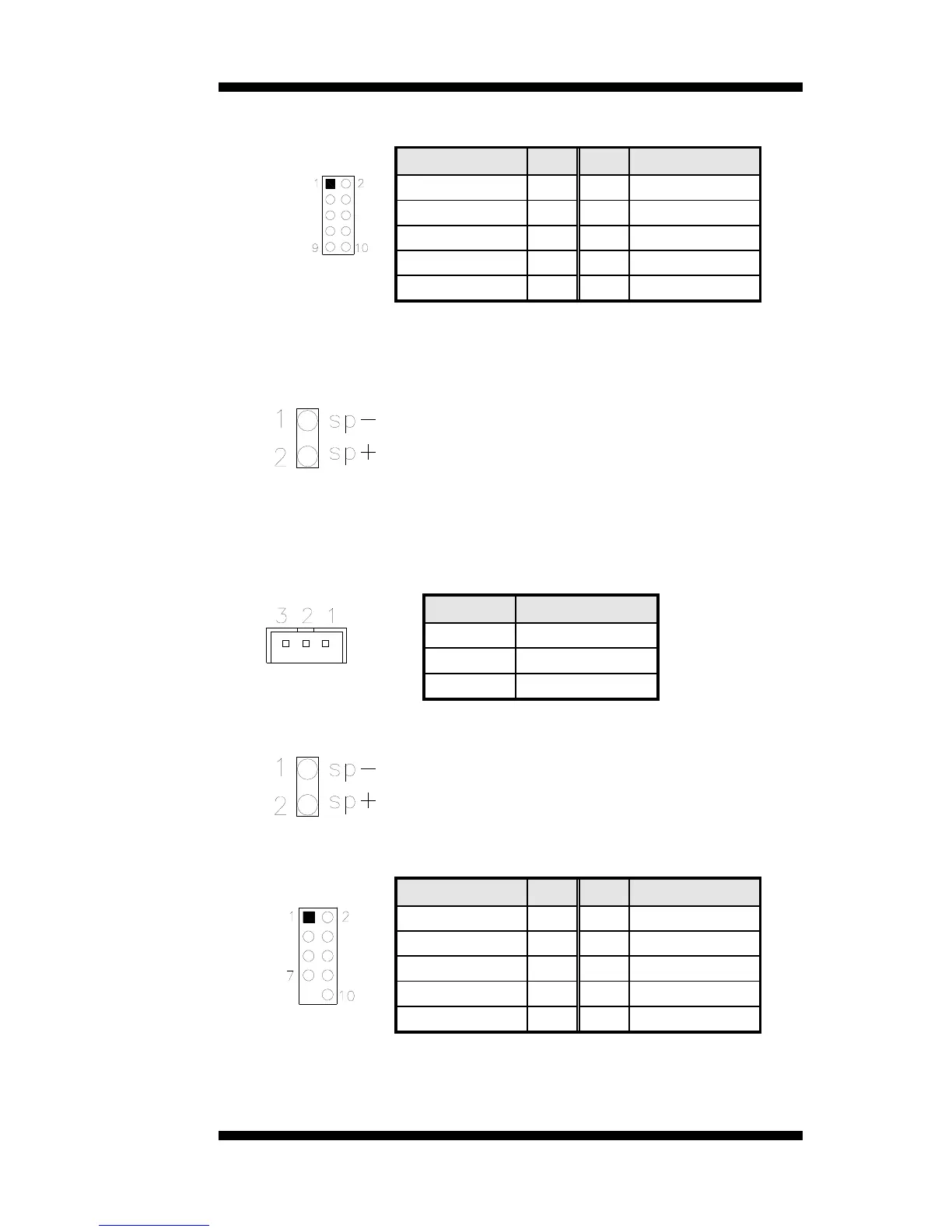

J10: Digital 4-in 4-out I/O Connector
MB500 User’s Manual 19
Signal Name Pin Pin Signal Name
Ground 1 2 Vcc
Out3 3 4 Out1
Out2 5 6 Out0
IN3 7 8 IN1
IN2 9 10 IN0
J11: Mini PCI Socket
J12: For Right Speaker
J13: Wake On LAN Connector
J13 is a 3-pin header for the Wake On LAN function. Wake On LAN
will function properly only with an ATX power supply with 5VSB that
has 200mA.
Pin # Signal Name
1 +5VSB
2 Ground
3 Wakeup
J14: For Left Speaker
J15: USB Connector (USB2/USB3)
Signal Name Pin Pin Signal Name
Vcc 1 2 Vcc
D2- 3 4 D3-
D2+ 5 6 D3+
Ground 7 8 Ground
9 10 NC
