Appendix A – Drawings | A-9

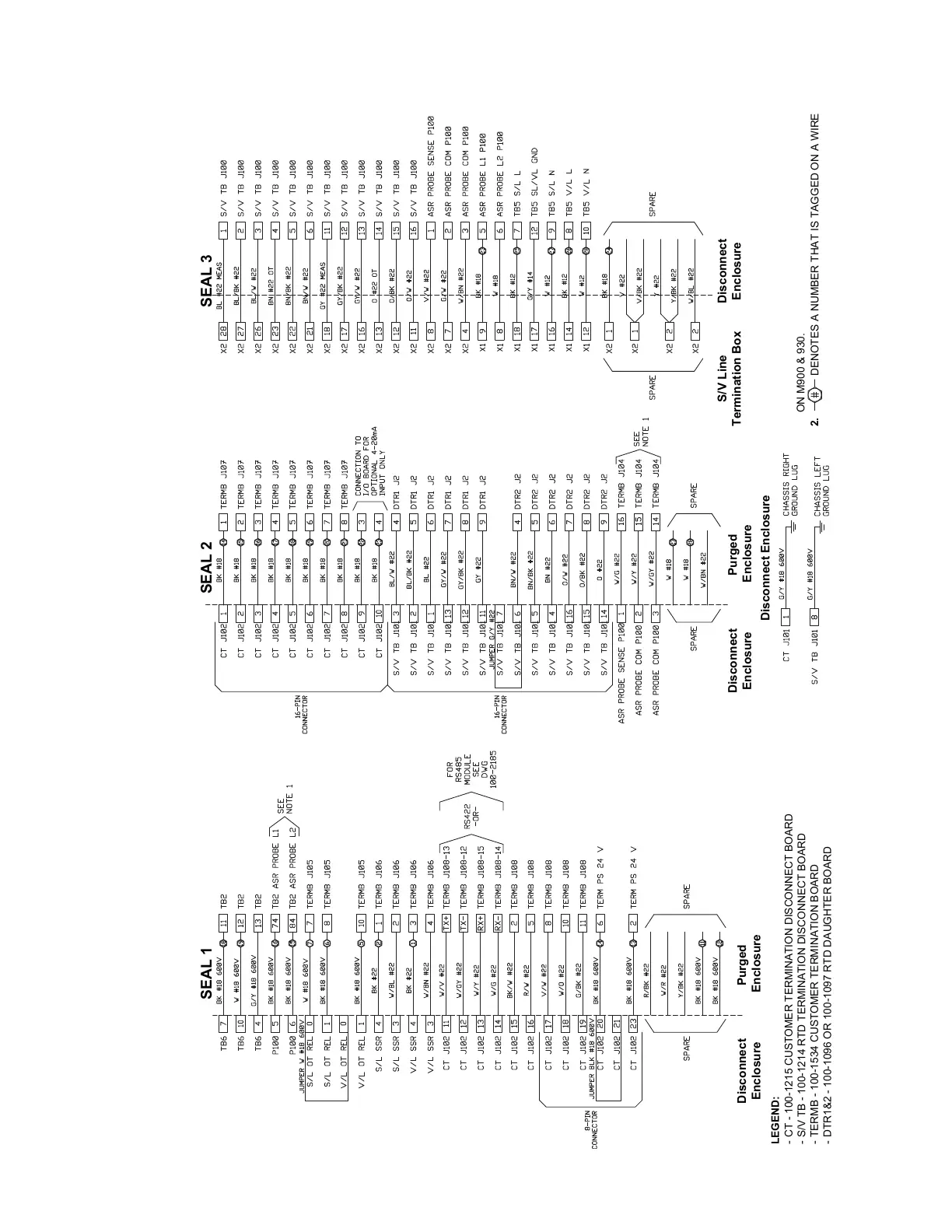

Wiring Diagram, All Seals, Zone 1 Analyzers (100-1343-10)
THESE CONNECTIONS ARE TYPICALLY ONLY MADE
1.
NOTES:
- CT - 100-1215 CUSTOMER TERMINATION DISCONNECT BOARD
- S/V TB - 100-1214 RTD TERMINATION DISCONNECT BOARD
- TERMB - 100-1534 CUSTOMER TERMINATION BOARD
- DTR1&2 - 100-1096 OR 100-1097 RTD DAUGHTER BOARD
DENOTES A NUMBER THAT IS TAGGED ON A WIRE
