Ametek AMREL SPS Series User Manual

6 | P a g e
FRONT & REAR PANEL DESCRIPTION:
(1.) AC Power
(2.) VFD Display
(3.) Keypad
(4.) Encoder
(5.) J1 Analog Programming
Port (25P D-SUB)
(6.) & (7.) Master/Slave Input &
Output Connector (9P D-SUB)
(8.) GPIB
(9.) Remote
Sense
(10.) RS-232
(11.) LAN
(12.) USB
(13.) Positive (+)
DC Output Bar
(14.) Negative (-)
DC Output Bar
(15.) Chassis
GND
(16.) 3-ph AC
Input Terminal

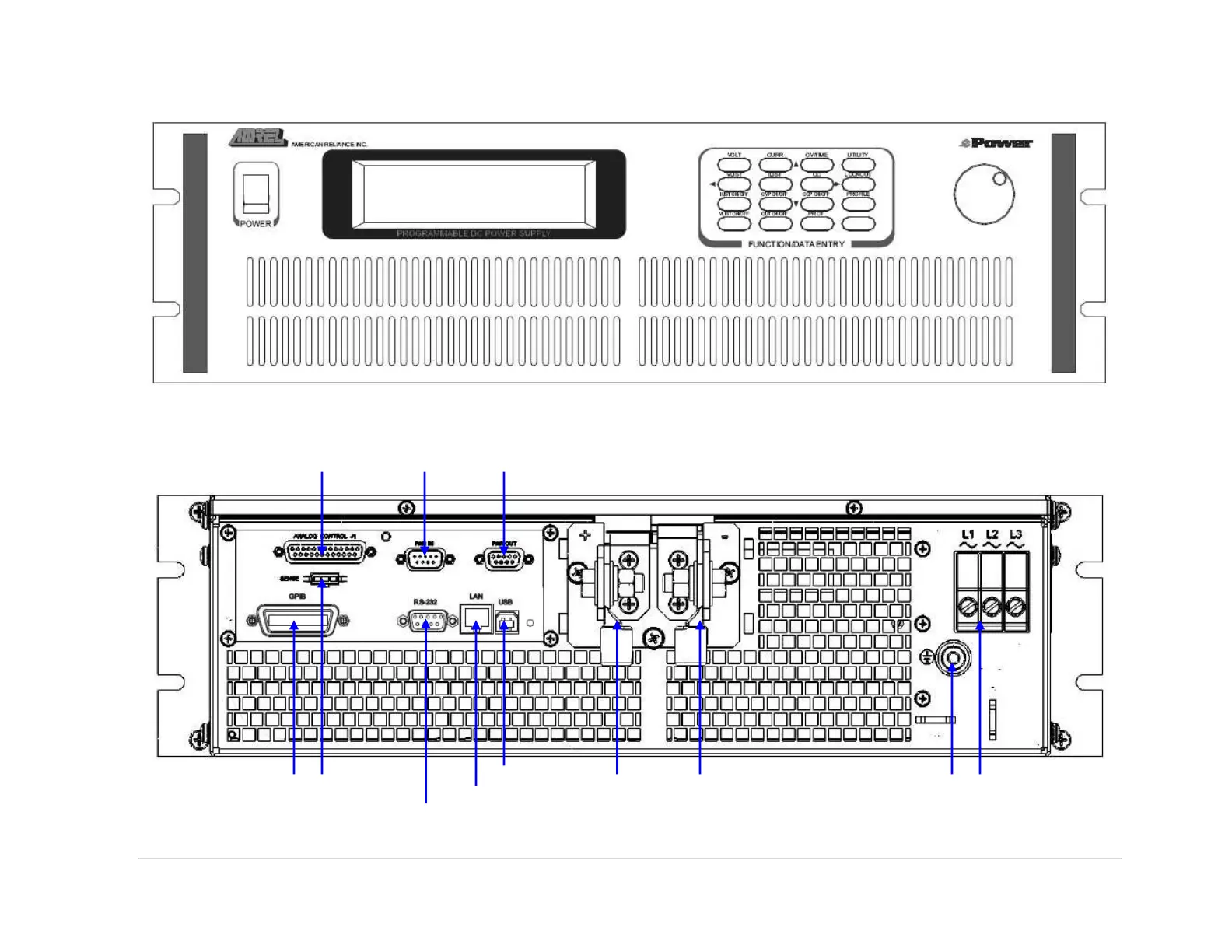

FIGURE 1.1 3U & 6U FRONT PANEL DESCRIPTION
FIGURE 1.2 3U REAR PANEL DESCRIPTION
