10
IOM (Safety) - Installation, Operation and Maintenance
Optical Oxygen Analyzer

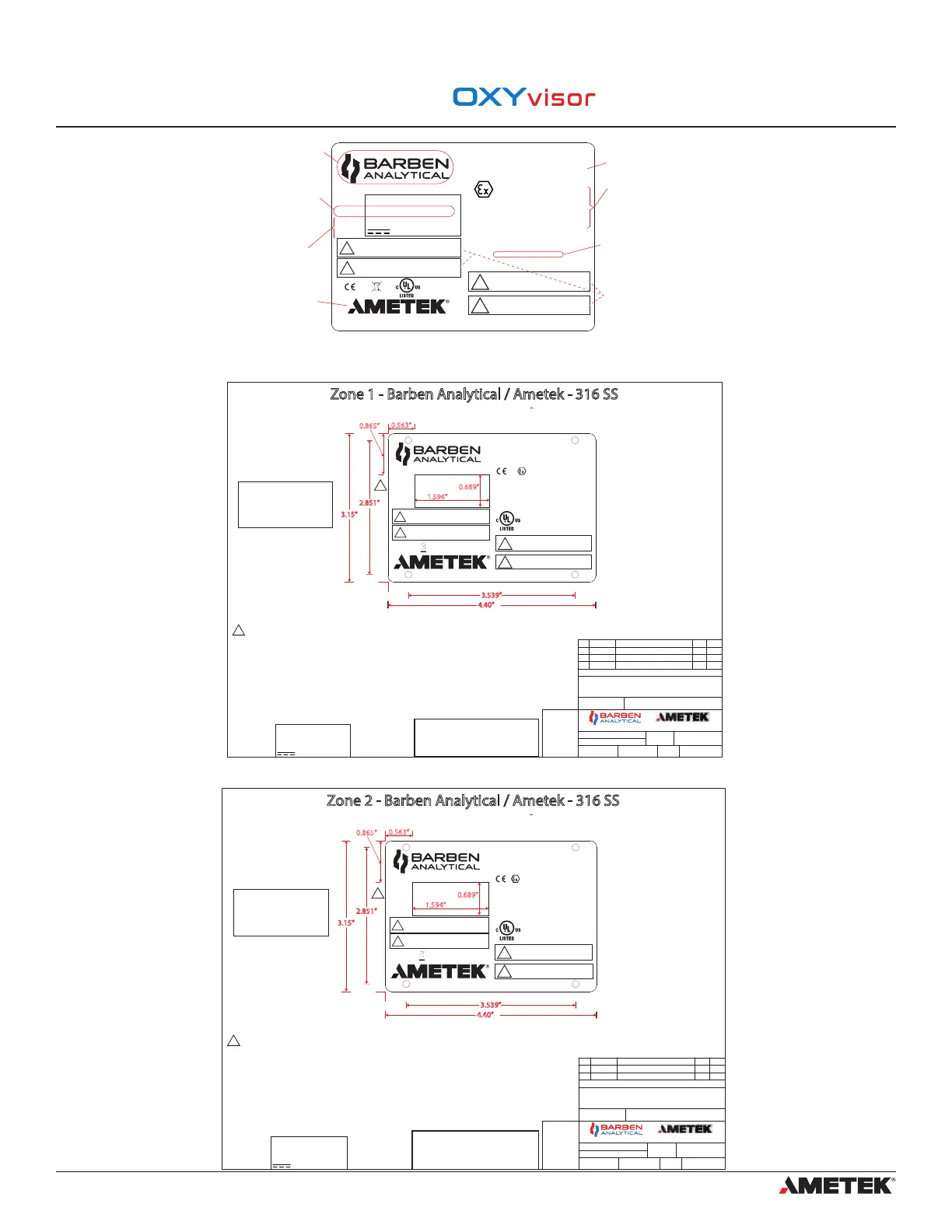

Figure 3 - OXYvisor Product Label / Name Plate
OXYvisor
II 2 G Ex db op is IIC T4 Gb
Ex db op is IIC T4 Gb
Ta = -20°C to +55°C, IP 66, NEMA 4x
Class I Zone 1 AEx db op is IIC T4 Gb
Ex db op is IIC T4 Gb
Installation DWG# 2P0345
0539
IECEx UL 18.0033
DEMKO 18 ATEX 2031
AVERTISSEMENT: Ne pas ouvrir quand une atmosphère
explosive est présente. Sceller toutes les sorties de câbles
conformément aux codes gouvernementaux et locaux.
WARNING: Do not open when an explosive
atmosphere is present. Seal all cable exits in
accordance with government and local code.
!
!
Made in Carson City NV - USA
www.BarbenAnalytical.com
Model#
Serial #
Power:
RoHS
!
WARNING: Consult Conditions of Safe Use in installation
manual and DWG# 2P0345 to preserve the protection
aorded by the equipment.
!
AVERTISSEMENT: Consultez les conditions d'utilisation
sécurisée du manuel d'installation et le DWG n° 2P0345
pour préserver la protection oerte par l'équipement.
BOA-DC-1-SFP-B-SI
YYMXXXX
21.6 - 26.4 VDC
5 Watts
E502700 Process Control Equipment for
Use in Zone Classied Hazardous Locations
Branding Logo
Parent Company Logo
Product Name
Serial # contains the
date of manufacture.
The rst three numbers
are YYM (YY=Year, M=
month by alphabet,
less”i”) then XXXX =
sequential build)
Power: Acceptable
range, power type and
max wattage drawn
Installation Drawing contains
critical information about the
installation requirements. This
must be reviewed prior to
installation.
Important Warnings! that
should be adhered to at all
times.
Hazardous Area Markings
2.8.2 - Zone 1 Groups IIC - Barben Analycal | AMETEK
2.8.3 - Zone 2 Groups IIC - Barben Analycal | AMETEK
2V0138
05/24/2018
10/31/2018 Z1 Final submittal
1 OF 1
1 : 1
INSTRUMENT
M.Thweatt
B. Wolf
A
B5001-1097
SS Nameplate Z1 (IEC/ATEX/UL/cUL)
OXYVISOR - BOA
B
UNLESS
OTHERWISE
SPECIFIED
FOR
PART NO.
APVD BY
DRAWN BY
DRAWING NO
DATE SCALE SIZE SHEET
APVD
DWN
MT
DESCRIPTION
DATE
REV
REVISIONS
DIMENSIONS
IN mm
ECO
5200 Convair Drive Carson City, NV 89706 PH(775)883-2500 FAX (775)297-4740
BW
07/19/2019 Z1 Final - UL updates - CE Move C
MT
BW
11/07/2021 S/N Schema Change & Ex Sched D
MT BW
OXYvisor
II 2 G Ex db op is IIC T4 Gb
Ta = -20°C to +55°C, IP 66, NEMA 4x
Class I Zone 1 AEx db op is IIC T4 Gb
Ex db op is IIC T4 Gb
0539
IECEx UL 19.0040
DEMKO 19 ATEX 2031
AVERTISSEMENT: Ne pas ouvrir quand une atmosphère
explosive est présente. Sceller toutes les sorties de câbles
conformément aux codes gouvernementaux et locaux.
WARNING: Do not open when an explosive
atmosphere is present. Seal all cable exits in
accordance with government and local code.
!
!
5200 Convair Drive, Carson City NV 89706 - USA
www.BarbenAnalytical.com
Model#
Serial #
Power:
!
WARNING: Consult Conditions of Safe Use in installation
manual and DWG# 2P0345 to preserve the protection
aorded by the equipment.
!
AVERTISSEMENT: Consultez les conditions d'utilisation
sécurisée du manuel d'installation et le DWG n° 2P0345
pour préserver la protection oerte par l'équipement.
Process Control Equipment for Use in
Zone Classied Hazardous Locations
E502700
1
4.40”
3.15”
3.539”
2.851”
0.563”
0.865”
1.594”
0.689”
RoHS
Material = 0.020 - 0.025” thick
316 Stainless Steel
Hole Diameter = 0.150” (4-typ)
Corners R = 0.125” (4-typ)
Model#
Serial #
Power:
BOA-DC-1-SFP-B-SI
YYMXXXX
21.6 - 26.4 VDC
5 Watts
1
Product and Order Specifc Information (Model#, Serial# and
Power) to be engraved at Barben Facility at time of order
Model# - Approved Product Nomenclature
OXYvisor Optical Oxygen Analyzer, Series BOA; followed by -AC or -DC; followed by -1;
followed by -S025, -S050, -S100- Sxyz*, or -SFP; followed by -B, -L, or -R; followed by -SI or
- AM (*Where xyz = ber length in tenth of meters)
Serial # - YYMXXXX (YY = Year, M = Month by alphabet, less “i”, XXXX = sequential build)
Power - (a) Nature of supply
1) a.c.: symbol 2, Rated Mains frequency or range of frequency
2.) d.c: symbol 1 of Table 1
(b) Rated range of supply voltage
(c) Maximum Rated Power in Watts or VA
Example of Product and Order Specic Info engraved by manufacturer:
- NOTICE -
EX SCHEDULE DRAWING
NO REVISION WITHOUT AGENCY AND
EX PERSONNEL AUTHORIZATION
Section 2
Technical Product Specication
2V0148
06/26/2019
1 OF 1
1 : 1
INSTRUMENT
M.Thweatt
B. Wolf
A
B5001-1112
SS Nameplate Z2 (IEC/ATEX/NEC)
OXYvisor - BOA
UNLESS
OTHERWISE
SPECIFIED
FOR
PART NO.
APVD BY
DRAWN BY
DRAWING NO
DATE SCALE SIZE SHEET
APVD
DWNDESCRIPTION
DATE
REV
REVISIONS
DIMENSIONS
IN mm
ECO
5200 Convair Drive Carson City, NV 89706 PH(775)883-2500 FAX (775)297-4740
OXYvisor
II 3 G Ex ec [ic] op is IIC T4 Gc
Ta = -20°C to +55°C, IP 66, NEMA 4x
Class I Zone 2 A
Ex ec [ic] op is IIC T4 Gc
Ex ec [ic] op is IIC T4 Gc
IECEx UL 19.0072
DEMKO 19 ATEX 2036
AVERTISSEMENT: Ne pas ouvrir quand une atmosphère
explosive est présente. Sceller toutes les sorties de câbles
conformément aux codes gouvernementaux et locaux.
WARNING: Do not open when an explosive
atmosphere is present. Seal all cable exits in
accordance with government and local code.
!
!
5200 Convair Drive, Carson City NV 89706 - USA
www.BarbenAnalytical.com
Model#
Serial #
Power:
!
WARNING: Consult Conditions of Safe Use in installation
manual and DWG# 2P0346 to preserve the protection
aorded by the equipment.
!
AVERTISSEMENT: Consultez les conditions d'utilisation
sécurisée du manuel d'installation et le DWG n° 2P0346
pour préserver la protection oerte par l'équipement.
Process Control Equipment for Use in
Zone Classied Hazardous Locations
E479864
1
RoHS
4.40”
3.15”
3.539”
2.851”
0.563”
0.865”
1.594”
0.689”
Material = 0.020 - 0.025” thick
316 Stainless Steel
Hole Diameter = 0.150” (4-typ)
Corners R = 0.125” (4-typ)
Model#
Serial #
Power:
BOA-DC-3-SFP-B-SI
YYMXXXX
21.6 - 26.4 VDC
5 Watts
1
Product and Order Specifc Information (Model#, Serial# and
Power) to be engraved at Barben Facility at time of order
Model# - Approved Product Nomenclature
OXYvisor Optical Oxygen Analyzer, Series BOA; followed by -AC or -DC; followed by -3;
followed by -S025, -S050, -S100- Sxyz*, or -SFP; followed by -B, -L, or -R; followed by -SI or
- AM (*Where xyz = ber length in tenth of meters)
Serial # - YYMXXXX (YY = Year, M = Month by alphabet, less “i”, XXXX = sequential build)
Power - (a) Nature of supply
1) a.c.: symbol 2, Rated Mains frequency or range of frequency
2.) d.c: symbol 1 of Table 1
(b) Rated range of supply voltage
(c) Maximum Rated Power in Watts or VA
Example of Product and Order Specic Info engraved by manufacturer:
- NOTICE -
EX SCHEDULE DRAWING
NO REVISION WITHOUT AGENCY AND
EX PERSONNEL AUTHORIZATION
06/26/2019 Zone 2 - BOA - Release
A
MT
BW
11/07/2021 S/N Schema Change & Ex Sched
B
MT
BW
