Ametek ECLIPSE II User Manual

Main Features
1. Multi-Voltage Charging Capability
2. Multi-Ampere-Hour Charging Capability
3. Automatic or Manual Battery Temperature
Compensation
4. 15 Minute Minimum DV/DT Charge
Termination
5. 2x20 Character Alphanumeric Display
6. Four LEDs for Status Display
7. LED lamp test provided on start up
8. Manual Stop Capability
9. One touch Review of Charge Cycle
Information during charge cycle or after
charge complete
- Amp hours returned during charge cycle
- Total time on charge
- 80% point to end of charge timer
- Battery open circuit voltage
- Start current
- Start voltage (volts/cell)
- Finish current
- Finish voltage (volts/cell)
- Charge termination code
10. Review of Charge Cycle Data and
Programmed Features
11. Review of Archived Charge Cycle Data for
the Last 512 Charge cycles.
- Amp hours returned during charge cycle
- Total time on charge
- 80% point to end of charge timer
- Battery open circuit voltage
- Start current
- Start voltage (volts/cell)
- Finish current
- Finish voltage (volts/cell)
- Charge termination code
- Equalize time
- Start time
- End time
- Battery I.D.
- Battery I.D. start temperature
- Battery I.D. end temperature
- Cycle ampere-hours
- Cycle cell size
- Battery Type
- Month
- Date
12. Automatic or Push-to-Start Operation
13. Manual or Automatic Equalize Operation
14. Fault Lock-out or No Fault Lock-out
Operation
15. Back-up Timer Shutdowns
16. Failure Mode Diagnostics
- High Battery Reject
- Low Battery Reject
- Battery Reject
- Battery Over-temperature
- Setup Error
- Low Voltage S.D.
- Charge Curve Error
- Low Current S.D.
- Backup Timer
- Manual Stop
- Fault Lockout
- Over Maximum Amp Hour Returned S.D.
- Charger Overtemperature S.D.
- DIDT S.D.
- Phase Error
EC2000 CONTROL FEATURES
193111-095
EC2000 CONTROL FEATURES
September 30, 2011 7-1

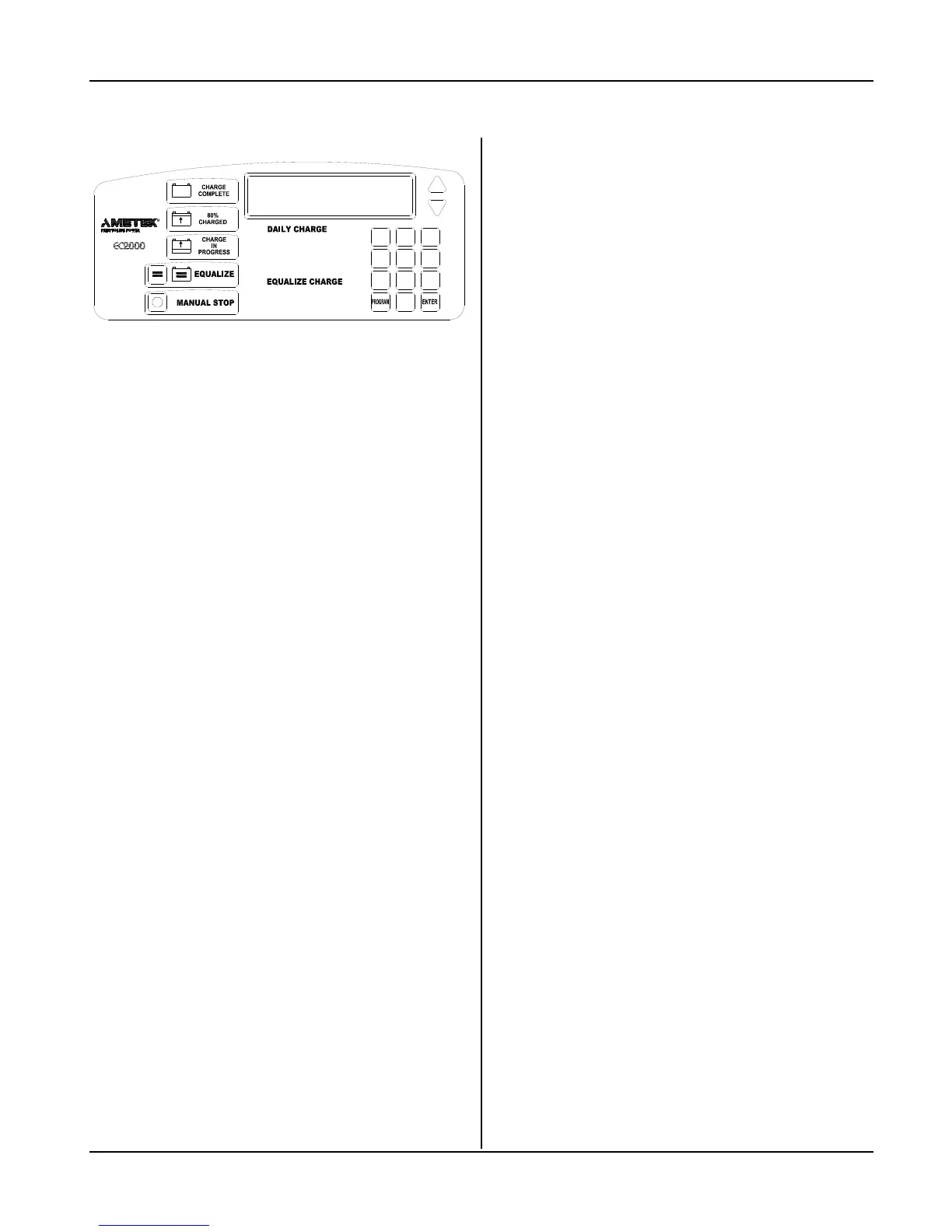

Figure 7-1
charger and press
the EQUALIZE key.
Connect battery to
Connect battery to
start automatically
after a brief delay.
charger. Charger will
1 2
3
4
5
6
7 8 9
0
CYCLE
REVIEW
FINISH
AMPS
FINISH
V/C
TERM
CODE
START
V/C
START
AMPS
BAT
OCV
AH
RET
TIME
ON CHG
TIME
>80%
